Displaying of the variables
5
Pass 999
12
12

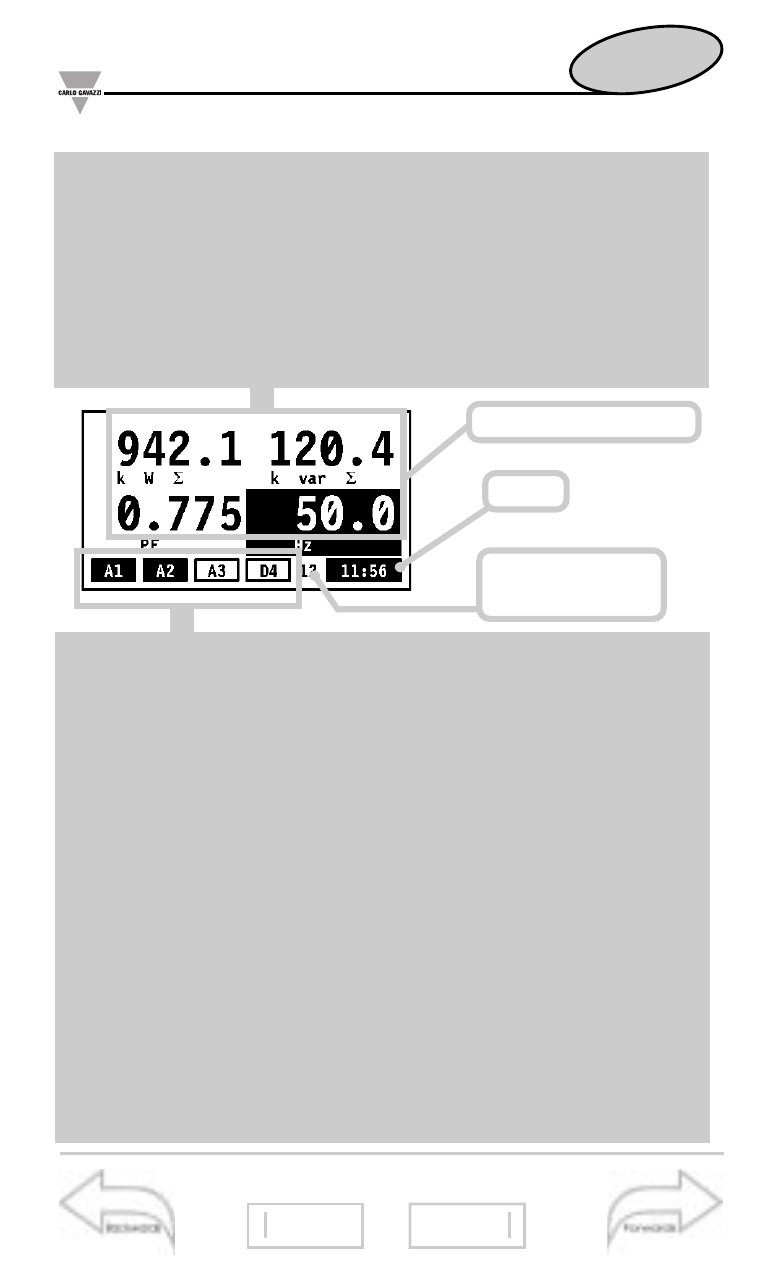

To begin with
■
Page “00”, Starting page
When the instrument is switched on, the main page of
variable displaying is shown. This first page, called page "00",
is the only one configurable by the user who can choose the
variables to be displayed in the 4 displaying areas. In all the
other pages (up to 27 depending on the instrument configura-
tion), the type of variables displayed in the four displaying
areas is automatically selected and cannot be changed. In the
table on page 41 you can see the contents of all the pages that
can be displayed by WM3-96.
Measured variables
The bottom part of the display, where the status of the digital
outputs is indicated, is common to all the pages. If the outputs
are not present, only an empty black rectangular frame is
shown; if the outputs are present, the display will show a letter
followed by a number. Four different letters may appear:
"P" Indicates a pulse output.
"A" Indicates an alarm output. In this case the letter can be
white in a black background to indicate that the output is
in alarm, or black in a white background to indicate that the
output is not in alarm.
"D" Indicates a diagnostic output. This is a particular type of
alarm that is activated when the neutral wire connection is
missing. The alarm is active when the background is
black, while the alarm is not active when the background
is white.
"R" Remote control is activated (see Remote Control on page
34).
The number that follows the letter is the progressive number
of the output (from 1 to 4).
Clock
Number of the
displayed page
