Text mode
Original mode

▲

■

VT ratio

This function allows the user to se-
lect the multiplier value of the VT.
Example: if the primary of the VT
(voltage transformer) being con-
nected is 20kV and the secondary
is 100V, the VT ratio will be 200
(given by 20000/100). If there is no
VT, the ratio will be “1.0”.

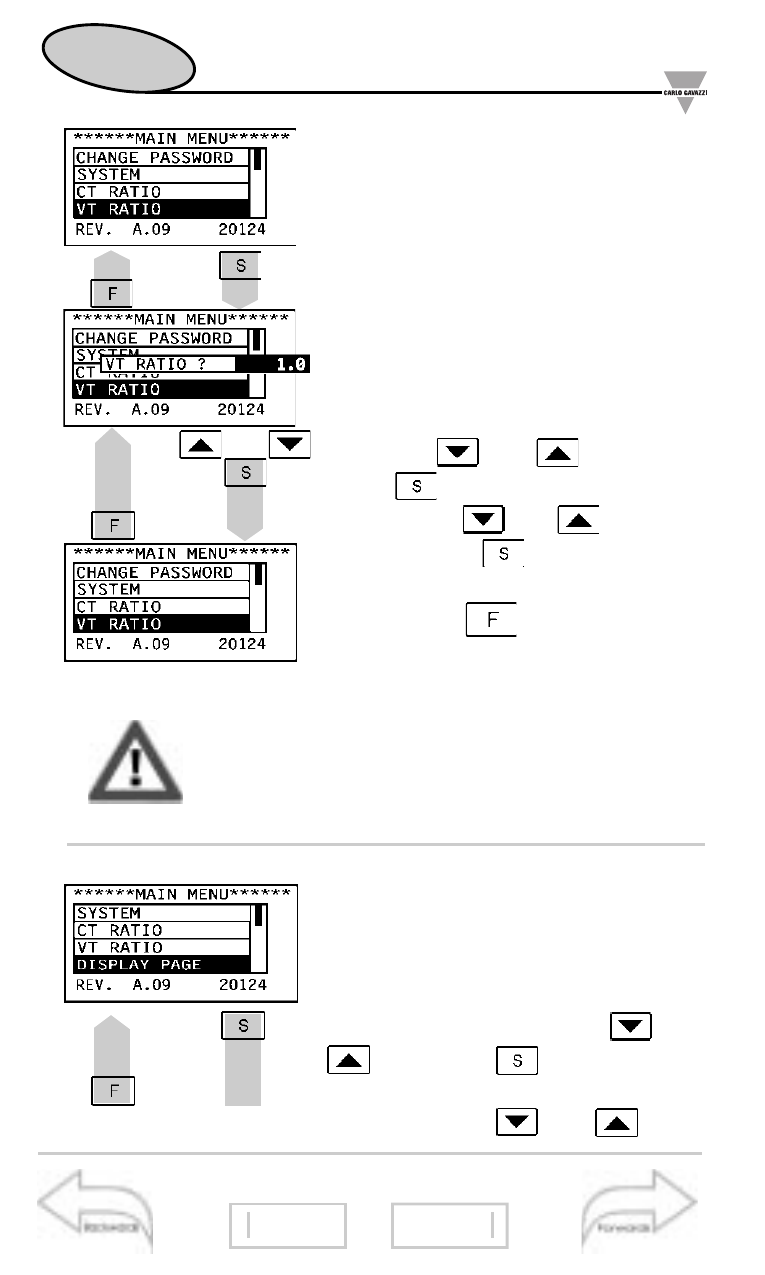

Choose the function VT RATIO by
means of

and

; to confirm

press

; then select the desired

value by the

and

keys and

confirm with

. To reset your

choice and go back to the main

menu, press

■

Display page

This function allows you to select the
variables to be displayed on page
00. Choose the DISPLAY PAGE
function by means of the

and

keys; press

to confirm, then

select the desired section of the dis-
play using the

and

keys;

Changing the VT ratio, all the MIN/MAX values,
all events and partial energy meters are reset.

Pass 1000

1.2..

..2.1
