Text mode
Original mode

▲

To reset the choice and go back to
the main menu, press the

key.

Changing the type of system, all the MIN/MAX
values, the events and the partial energy meters
are reset.

■

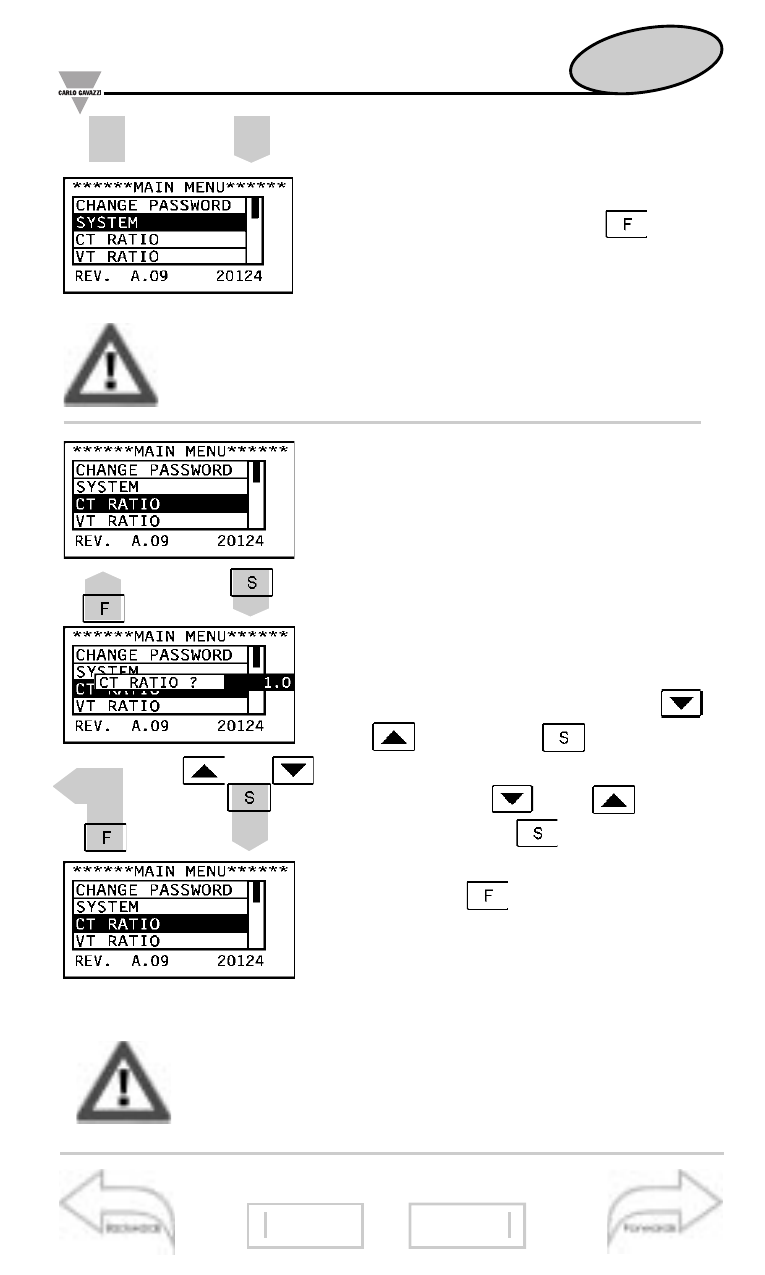

CT ratio

This function allows you to select the
value of the CT ratio. Example: if the
primary of the CT (current trans-
former) being connected is 300A and
the secondary is 5A, the CT ratio
corresponds to 60 (obtained from the
calculation: 300/5). Choose the func-
tion CT RATIO by means of the

and

keys; press

to confirm,

then select the desired value by
means of the

and

keys

and confirm with

. To reset the

choice and go back to the main
menu, press

Note that when the CT ratio is changed all the
MIN/MAX values, the events and the partial
energy meters are reset.
