Page 35

▲

Every time a new selection of the variable con-
nected to the analogue output is made, it is
important to check and if necessary program
again all the relevant parameters.

•MIN IN: minimum value of the variable input range. Select the

desired value by means of the

and

keys and

confirm it with

•MAX IN: maximum value of the variable input range. Select the

desired value by means of the

and

keys and

confirm it with

. To exit from any of the menus, press

. For further information, see examples No. 1 and 2 on

page 38/39. For the resolution of the value to be
retransmitted, see the note on page 33.

■

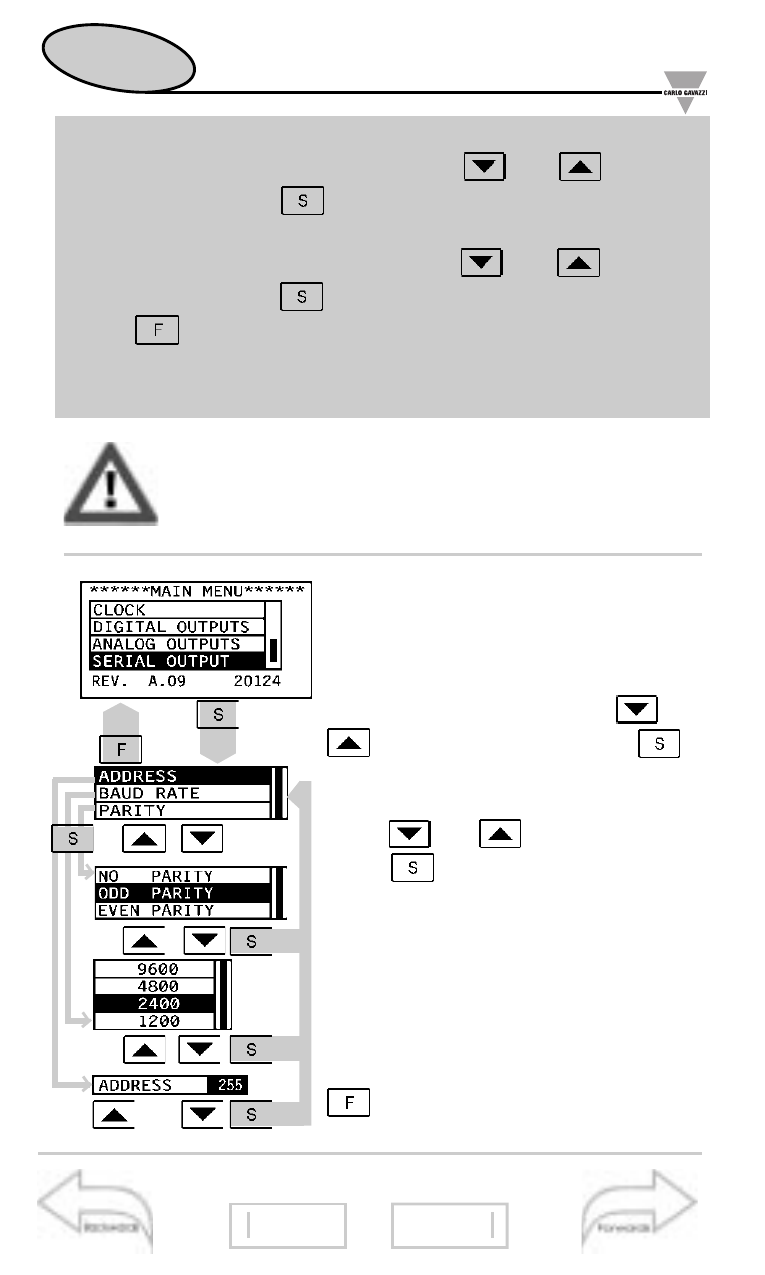

Serial output

This function allows the user to set
the parameters of the serial output.
Select SERIAL OUTPUT from the
main menu by means of the

and

keys and confirm it with

Select the function you want to set
from one of the submenus by means
of the

and

keys and confirm

it with

. The configurable param-

eters are the following:
• Instrument ADDRESS: from 1 to 255.
• BAUD RATE: 1200, 2400, 4800

and 9600 bit/s.

• PARITY: no parity, even parity and
odd parity. To exit from one of the
menus or cancel a selection, press

1.2..

..2.1
