50

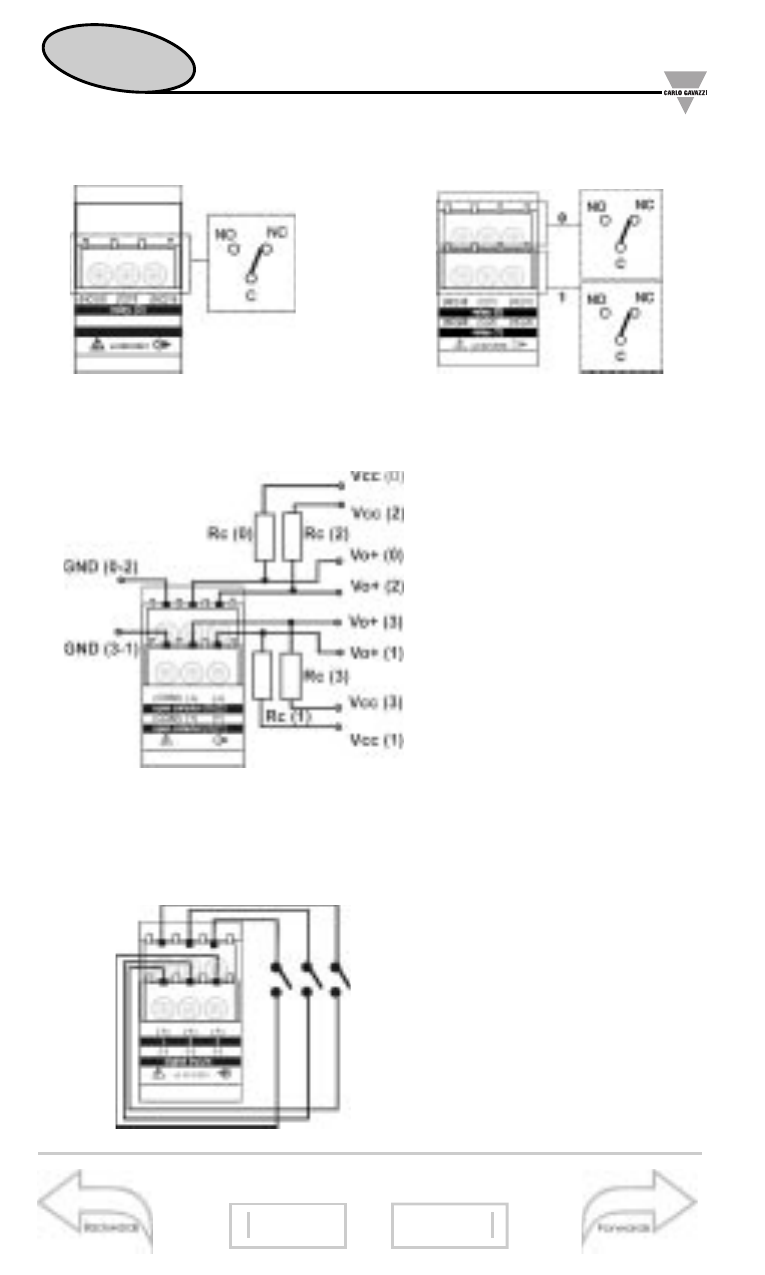

Installation
❑
Single and double relay outputs
❑
Open collector outputs
❑
Digital inputs
This diagram is valid
also for the open collec-
tor modules with a lower
number of outputs. The
value of the load
resistances (Rc) must
be chosen so that the
short-circuit current is
lower than 100mA; the
VDC voltage must be
lower than or equal to
30VDC.
