Outputs / Other settings

Multi-tariff

Diagnostic

consumed active energy (kWh +),
generated active energy (kWh -),
consumed reactive energy (kvarh +),
generated reactive energy (kvarh -),
press the “

” key to open the menu

of energy/pulse output management.

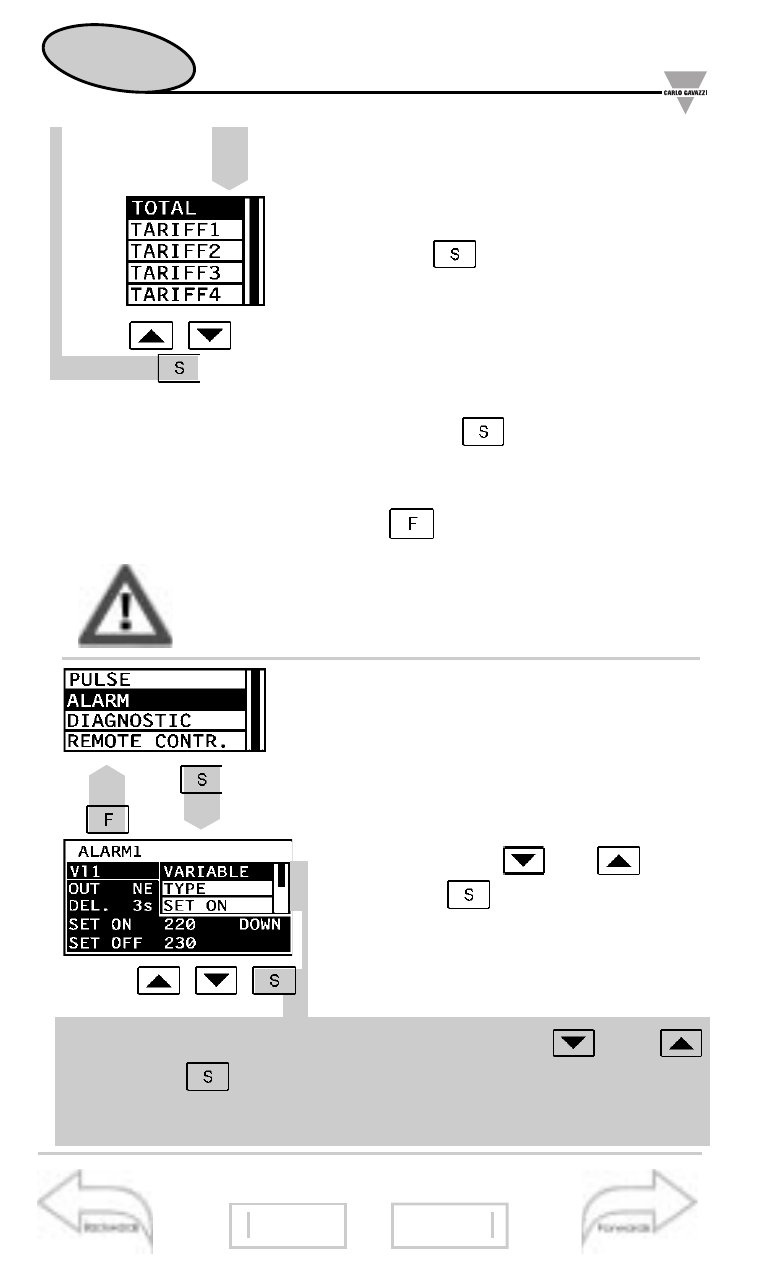

There are five possible selections:
TOTAL, output connected to the total
energy meter; TARIFF, output con-
nected to the desired tariff type.
Confirm with

and go back to the

digital output menu. To reset the
choices and go back to the main menu,

press

The multiplyer of the measuring unit (kW,MW)
automatically changes according to the CT or VT
ratio set by the user.

❑

Alarms

This function allows the activation of
a static or relay output when an alarm
condition is detected. Select ALARM
from the DIGITAL OUTPUT menu

by means of the

and

keys,

then press

to enter the display

window of all the alarm parameters:

Select the desired variable by means of the

and

keys, press

to confirm and enter the submenus dedicated

to the various parameters:
•VARIABLE: variables to be connected to the alarm: you can
