Bio-Rad PowerPac™ HV High-Voltage Power Supply User Manual

Page 31

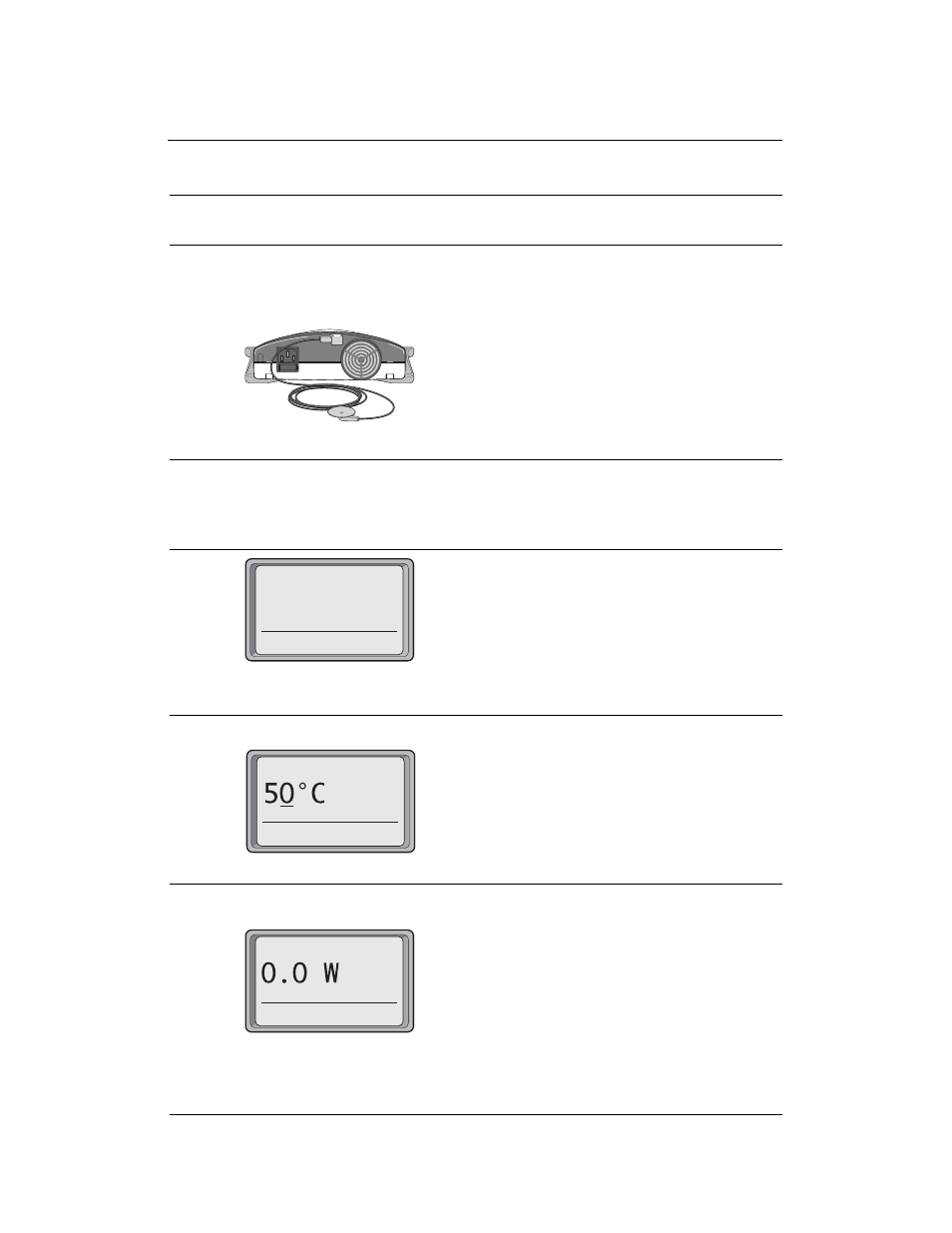

4.4.1 Create, Edit and Run in Temperature Method

Step Procedure

Description

Set up the power supply

Refer to Section 3 for instrument setup.

Connect temperature

The Temperature mode may be accessed from any

probe to the back of

screen, except for the run screen, by connecting the

the PowerPac HV

probe.

Attach probe to the

Use the suction cup to attach the temperature probe

electrophoresis cell

to the electrophoresis cell. Make sure the suction
cup remains attached during the run.

The Temperature mode introduction screen appears
automatically.

Press the CONTINUE soft key.

Note: See Section 3.3.4 for additional information
on TEMP PROBE options.

Set temperature limit

Use the alphanumeric keypad to enter the desired
temperature (30°–90°C).

Press the EDIT soft key to continue.

Enter parameters

Use the soft keys to select a parameter and the
keypad to enter its value. To change the constant
value, press its soft key and enter a new value.

LIMITV:

Change the voltage limit value.

LIMITA:

Change the current limit value.

CONSTW: Enter the power constant value.

Note: The constant power value entered will never
be exceeded even if the cell fails to reach the set
temperature.

Press EDIT to continue.

TEMPERATURE MODE

TO EXIT TEMP MODE

REMOVE THE PROBE

CONTINUE

SET TEMPERATURE LIMIT

EDIT

EDIT PARAMETERS

5000

500

50¡

V
mA
C

TIME: UNTIMED
LIMITV LIMITA CONSTW

PowerPac HV – Instruction Manual
