Owner’s Manual

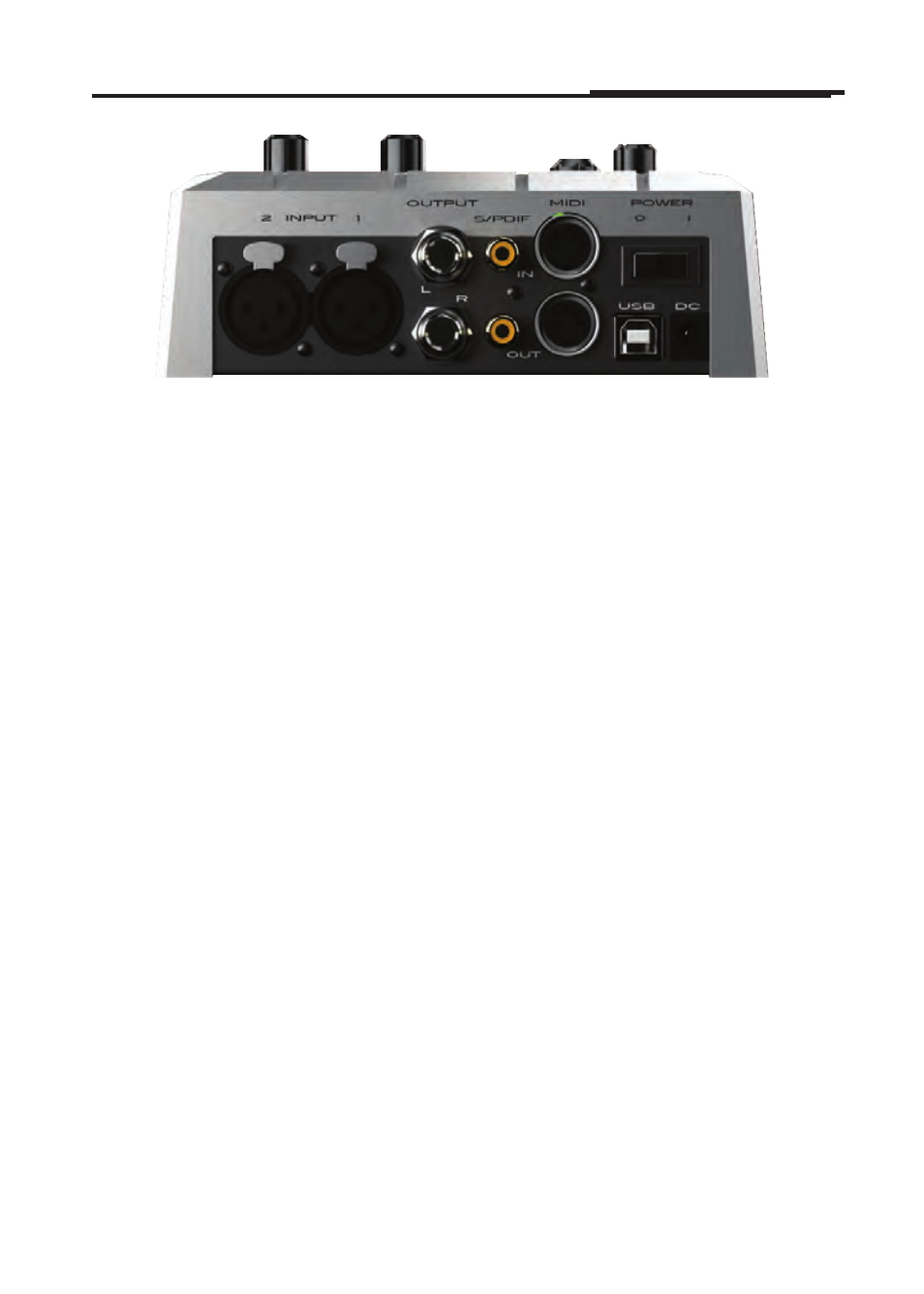

1/4

” TRS BALANCED ANALOG OUTPUTS

Connect these outputs to the inputs of your powered studio monitors
or power amp.

S/PDIF I/O
These 75Ohm, coaxial, digital inputs and outputs allow the unit to
send and receive up to 24-bit/192kHz digital signals. The S/PDIF in-
put might be used to connect external mic pres like the Aphex Project
Channel. The S/PDIF output might be used to expand your head-
phone outputs with an Aphex HeadPod4.

NOTE: When recording from the S/PDIF input your DAW must
reference the clock from the S/PDIF signal. Follow this sequence:
Select the sample rate on the external device. Set the sample rate
in the DAW, select S/PDIF as the sync source in the Aphex driver
control panel. This sequence MUST be followed for proper
functionality.

MIDI I/O
These connections allow your DAW to send and receive MIDI data.
Common uses would include connecting a control surface, trans-
mitting MIDI Clock, MIDI Time Code, MIDI program changes, etc.
Consult your DAW’s manual for more information about the use of
MIDI devices.

POWER ON/OFF
This button will turn the IN2 on/off. When the unit is on, the Aphex
logo on the top panel will light up.
