Wall Mounting Instructions
1. Remove manifold control panel from the shipping carton. If the manifold will be placed on a flat surface in the
upright position, do not remove the foam packaging material or the manifold may tip over. Only remove the foam
packaging material when ready to hang the manifold on the mounting bracket (in step 4).
2. Using the back support bracket as a template, place on the flat wall and align the top of the bracket with the
level horizontal line. The vertical center line of the bracket will be the vertical center line of the installed manifold.
The support bracket should be mounted 61-1/2” [1,562.1 mm] from the finished floor to the bottom hole of the
bracket as shown in Figure 1).
3. Mark locations of mounting holes. Remove the bracket and drill mounting holes. Attach the bracket to the wall
with appropriate anchors (supplied by others). 3/8” [9.525 mm] diameter anchors are recommended.

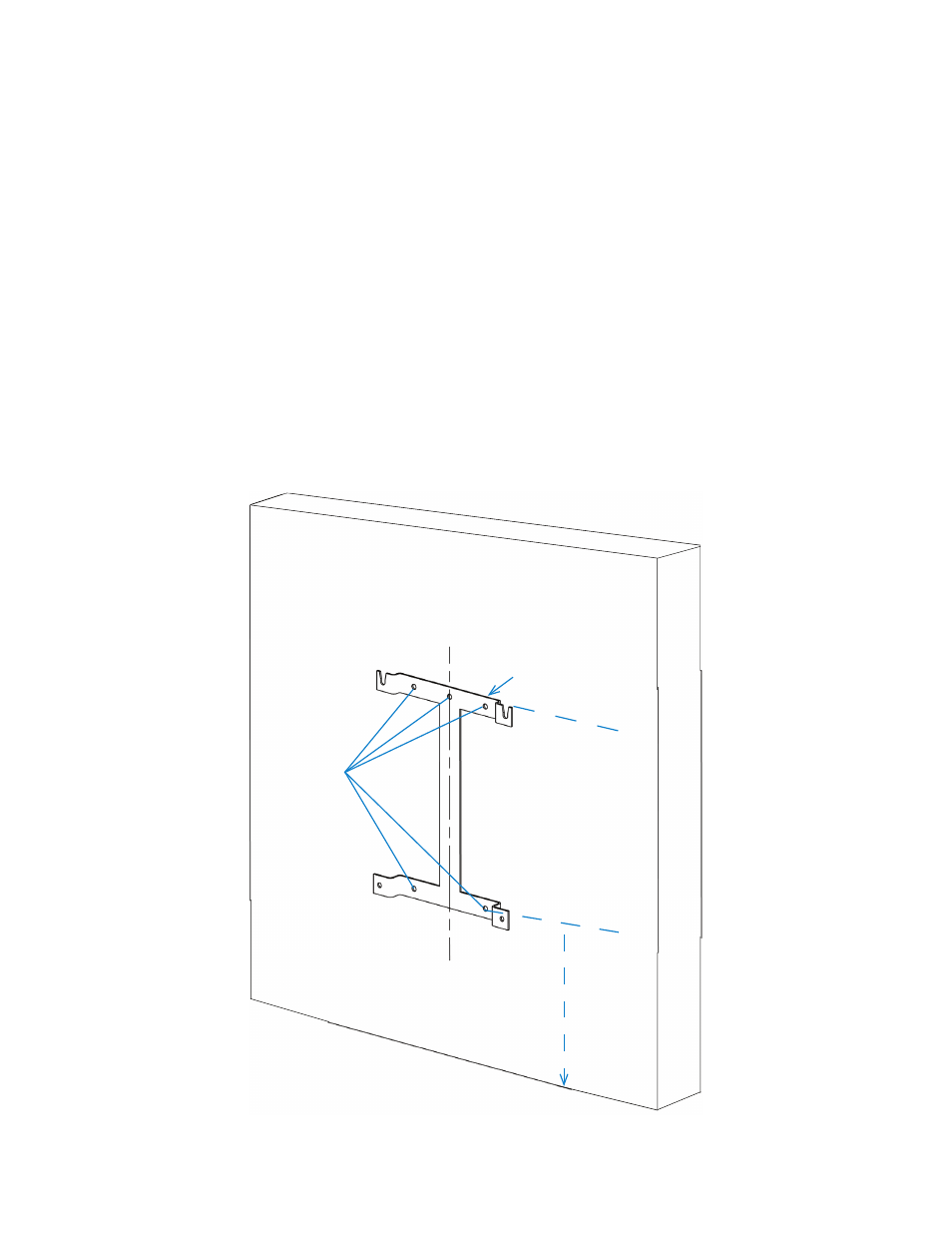

Figure 1
To Floor
Locate bracket per
horizontal line
61 1/2”
[1,562.1mm]
Mark Location
of holes
