• Remove screw and protecting cap.
CAUTION
Damage can be caused by falling light head.
• Danger of injury through incorrect fitting of the
light head.
• Insert light head.
• Turn sleeve for inserting safety segment (included
in the Ondal operating instructions)
• Turn back sleeve and tighten screw.
• Tighten screw according to requirements of the
friction from the light head.
• Clip handle on.

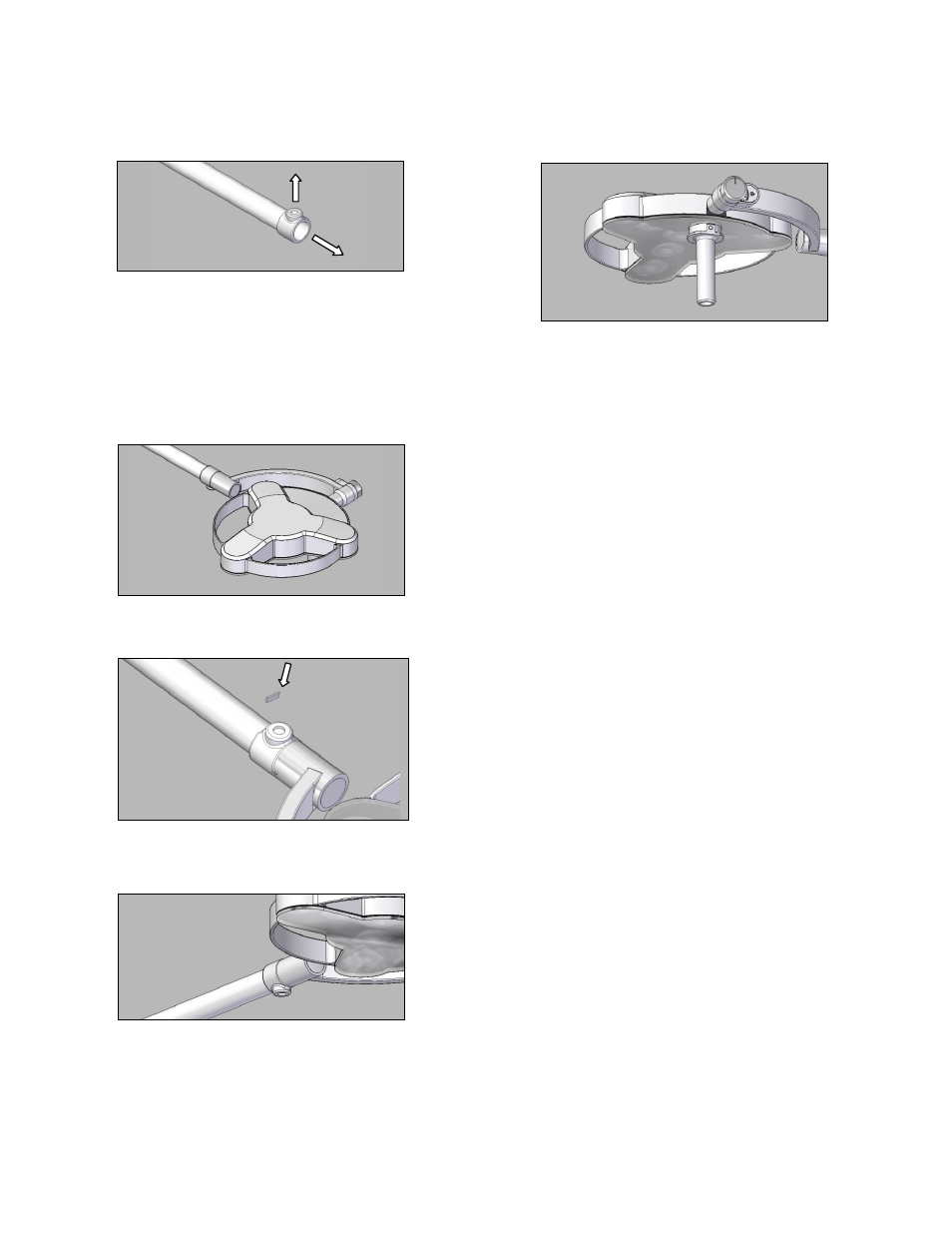

Installation: Installing Light Head
ENG INSTALLING light head
16
 First install washer 1, then the locking ring 2.
 Pull on the plug with cover cup and fasten
with Allen screw.
 To continue with installing the light head see
Sec. 8
8 INSTALLING light head
 Remove screw and protecting cap.
CAUTION
Damage can be caused by falling light head.
 Danger of injury through incorrect fitting of
the light head.
 Insert light head.
 Turn sleeve for inserting safety segment
(included in the Ondal operating instructions)
 Turn back sleeve and tighten screw.
 Tighten screw according to requirements of
the friction from the light head.
 Clip handle on.
