Amico Mira LED - Manual (Page 17)

www.amico.com 17

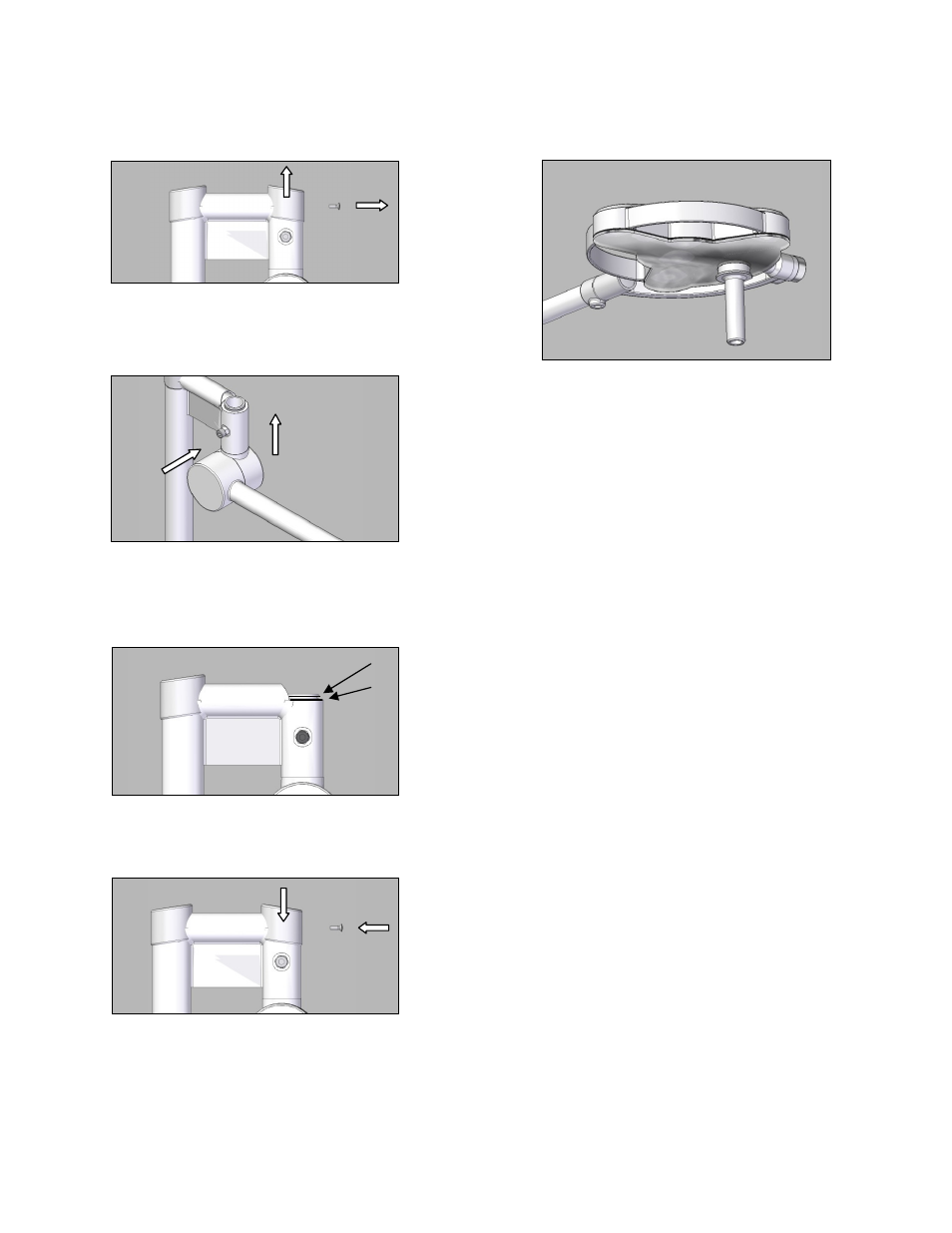

• Take M8 Allen screw from the upper stand tube.
• Remove covering cap with plug.
• Insert spring-balanced arm and secure with M8
Allen screw.
• First install washer 1, then the locking ring 2.
• Pull on the plug with cover cup and fasten with
Allen screw.
• To continue with installing the light head see the
Installing Light Head section later in this manual.
Installation: Mira LED Floorstand
INSTALLING triango 30 F ENG
15
7 INSTALLING triango 30 F
 Remove M3 Allen screws on the sides and
remove the power supply case.
 Loosen the 2 M6 Allen screws on the lower
stand tube.
 Thread the stand tube cable through the
wheeled stand.
 Attach the lower stand tube to the wheeled
stand using the 2 M6 Allen screws.
 Push together the cable of the lower stand
tube and the power supply until a click is
heard.
 Tighten the screws of the power supply case
with M3 Allen screw and lock washers.
 Push together the cables oft he upper and
lower stand tube until a click is heard.
 Mount the upper stand tube on to the lower
stand.
 Screw the cable holder on to the lower stand
tube using M4 Allen screw.
CAUTION
Never unscrew the upper cable holder –
danger of injury.
 When both cable holders are removed, the
connector is then free and can fall causing
possible injury and/or damage to the cable
and equipment.
 Take M8 Allen screw from the upper stand
tube.
 Remove covering cap with plug.
 Insert spring-balanced arm and secure with
M8 Allen screw.
INSTALLING triango 30 F ENG
15
7 INSTALLING triango 30 F
 Remove M3 Allen screws on the sides and
remove the power supply case.
 Loosen the 2 M6 Allen screws on the lower
stand tube.
 Thread the stand tube cable through the
wheeled stand.
 Attach the lower stand tube to the wheeled
stand using the 2 M6 Allen screws.
 Push together the cable of the lower stand
tube and the power supply until a click is
heard.
 Tighten the screws of the power supply case
with M3 Allen screw and lock washers.
 Push together the cables oft he upper and
lower stand tube until a click is heard.
 Mount the upper stand tube on to the lower
stand.
 Screw the cable holder on to the lower stand
tube using M4 Allen screw.
CAUTION
Never unscrew the upper cable holder –
danger of injury.
 When both cable holders are removed, the
connector is then free and can fall causing
possible injury and/or damage to the cable
and equipment.
 Take M8 Allen screw from the upper stand
tube.
 Remove covering cap with plug.
 Insert spring-balanced arm and secure with
M8 Allen screw.
ENG INSTALLING light head
16
 First install washer 1, then the locking ring 2.
 Pull on the plug with cover cup and fasten
with Allen screw.
 To continue with installing the light head see
Sec. 8
8 INSTALLING light head
 Remove screw and protecting cap.
CAUTION
Damage can be caused by falling light head.
 Danger of injury through incorrect fitting of
the light head.
 Insert light head.
 Turn sleeve for inserting safety segment
(included in the Ondal operating instructions)
 Turn back sleeve and tighten screw.
 Tighten screw according to requirements of
the friction from the light head.
 Clip handle on.
1
2
ENG INSTALLING light head
16
 First install washer 1, then the locking ring 2.
 Pull on the plug with cover cup and fasten
with Allen screw.
 To continue with installing the light head see
Sec. 8
8 INSTALLING light head
 Remove screw and protecting cap.
CAUTION
Damage can be caused by falling light head.
 Danger of injury through incorrect fitting of
the light head.
 Insert light head.
 Turn sleeve for inserting safety segment
(included in the Ondal operating instructions)
 Turn back sleeve and tighten screw.
 Tighten screw according to requirements of
the friction from the light head.
 Clip handle on.
1
2
ENG INSTALLING light head
16
 First install washer 1, then the locking ring 2.
 Pull on the plug with cover cup and fasten
with Allen screw.
 To continue with installing the light head see
Sec. 8
8 INSTALLING light head
 Remove screw and protecting cap.
CAUTION
Damage can be caused by falling light head.
 Danger of injury through incorrect fitting of
the light head.
 Insert light head.
 Turn sleeve for inserting safety segment
(included in the Ondal operating instructions)
 Turn back sleeve and tighten screw.
 Tighten screw according to requirements of
the friction from the light head.
 Clip handle on.
1
2
