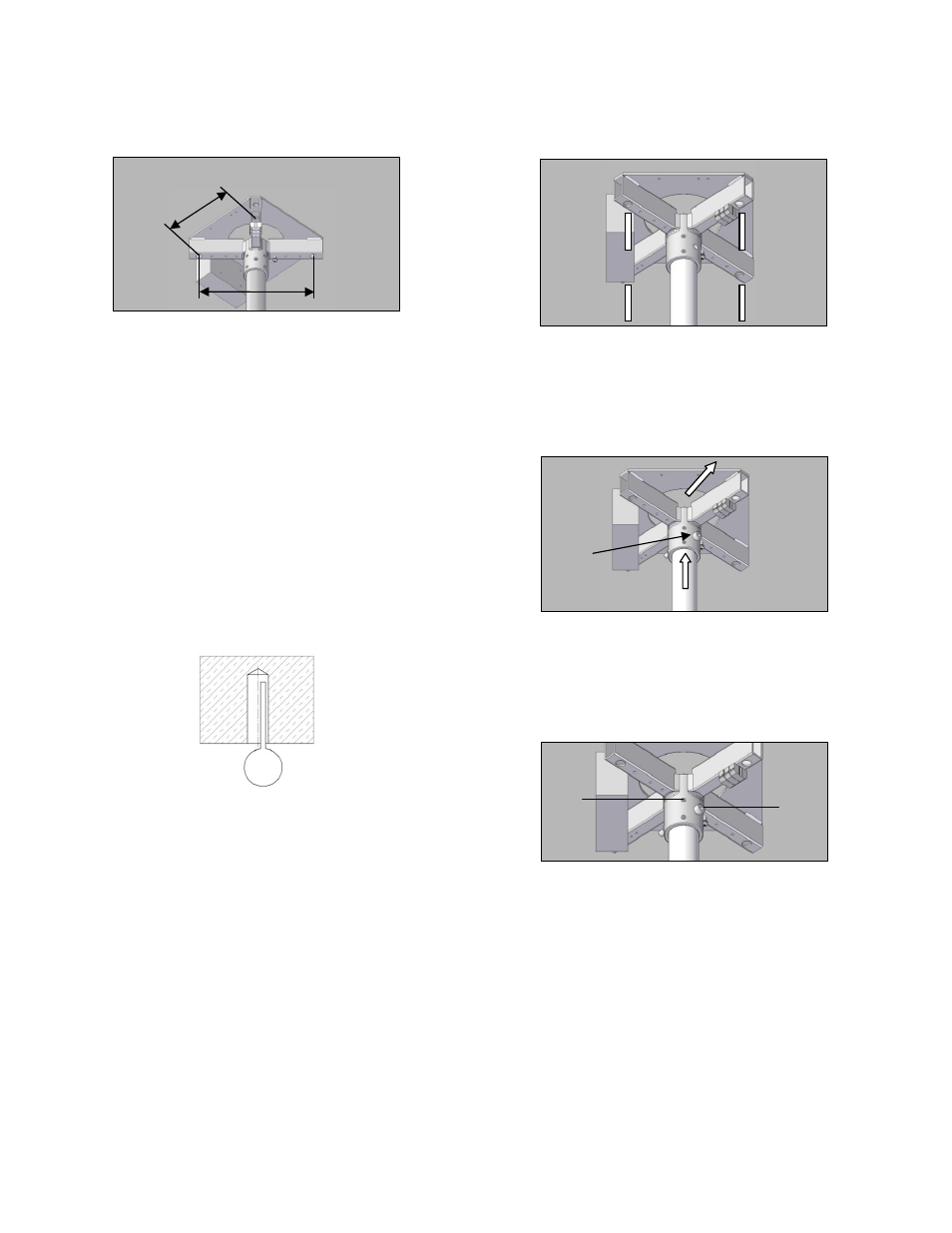

Installation: Mira LED Ceiling Mount
• Check clearances.
CAUTION
Risk of injury from the falling luminaire.
• The ceiling mounting must be fixed with the
mounting material corresponding to the material
of the ceiling.
CAUTION
Risk of injury from the falling luminaire.
• Two people are required for the installation.
NOTICE
Use safety equipment recommended by tool
manufacturer.
• Drill holes and blow out with blower.
CAUTION
Risk of injury from the falling luminaire.
• The ceiling must be solid concrete to ensure a
secure mount.
• Use appropriate wall anchors.
• Hold ceiling mounting against the ceiling and
knock in the masonry anchors using a hammer.
• Tighten the nuts (observing the torque specified
by the ceiling anchor manufacturer).
• Pull the lamp cable from the ceiling tube through
the mounting.
• Insert the ceiling tube into the mounting.
• Secure with the mounting screw M8 1
• Tighten M8 locking screw and nut 1
• Also tighten the 4 Allen screws in the mounting 2
WARNING
Danger of death from electric shock.
• Switch off circuit breaker before working on the
mains connection.
