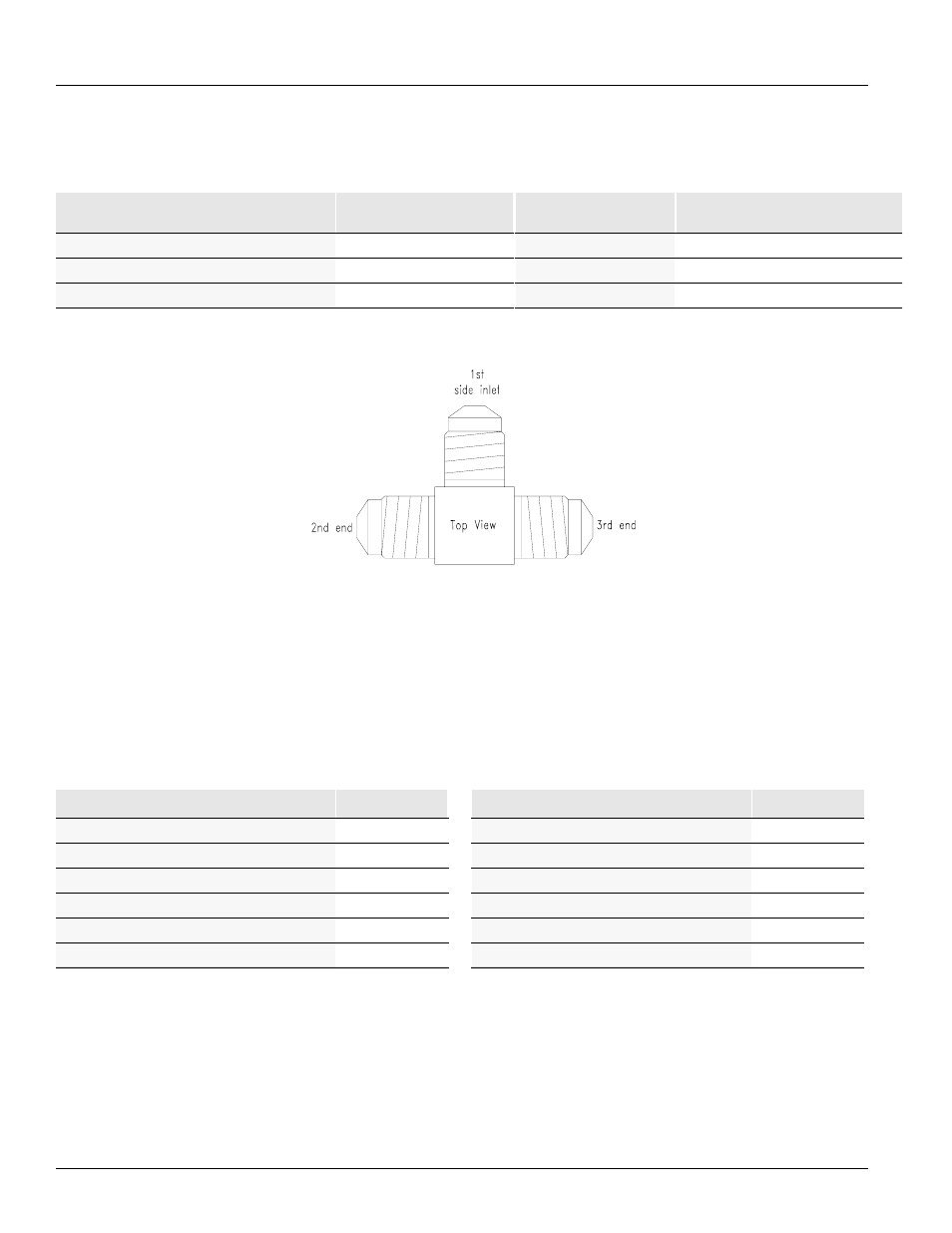

* See Figure below.
Hydraulic Hose and Fitting Nomenclature
Listing below is for an example
Hose size & Rating Length in inches Fittings on end of hose
Hydraulic Hose 1/2R1 250 1/2MNPT and/or 3/4FJIC
1st (Side inlet of TEE) 2nd 3rd
*TEE fittings 3/4MORB 3/4MJIC 3/1MJIC
Tire Inflation Chart
Tire Size Inflation PSI Tire Size Inflation PSI
7.50 x 20" 4-Ply Drill Rib 28 11L x 15" 6-Ply Rib Implement 28
9.0 x 22.5 10-Ply Highway Service 70 70 11L x 15" 12-Ply Rib Implement 52
9.0 x 24" 8-Ply Rib Implement 40 12.5L x 15" 8-Ply Rib Implement 36
9.5L x 15" 6-Ply Rib Implement 32 12.5L x 15" 10-Ply Rib Implement 44
9.5L x 15" 8-Ply Rib Implement 44 16.5L x 16.1" 10-Ply Rib Implement 36
9.5L x 15" 12-Ply Rib Implement 60 21.5 x 16.1” SC 10-Ply Rib Implement 28
