10 NTA 1000 and NTA 1300 148-528Q 7/29/2004
Great Plains Mfg., Inc.
Lights to Sub-Frame
Refer to Figure 15
1. Slide light tube through the end of the walkboard (1).
(Amber reflector’s will be facing the rear of the drill).
Assemble to the walkboard using two 3/8 x 2 bolts,
lock washers and hex nuts (2).
2. When placing lights on drill, the red light will be facing
the rear with the two amber lights on the outside edge.
3. Assembly the lights (3) to the tube using 1/4-12 x
2 1/4 bolts, lock washers and flat washers (4). Bring
fasteners up from the bottom of the tube and into the
bottom of the lights. There is a LH and a RH light. The
wire extensions will be toward the inside of the drill
when properly installed.
4. Route the wire harness (5) from under the walkboard
following the tube to the lights. The lead wires with the
green goes to the right light and the lead with the yel-
low wire goes to the left light. Wire tie the harness in
place.
19450

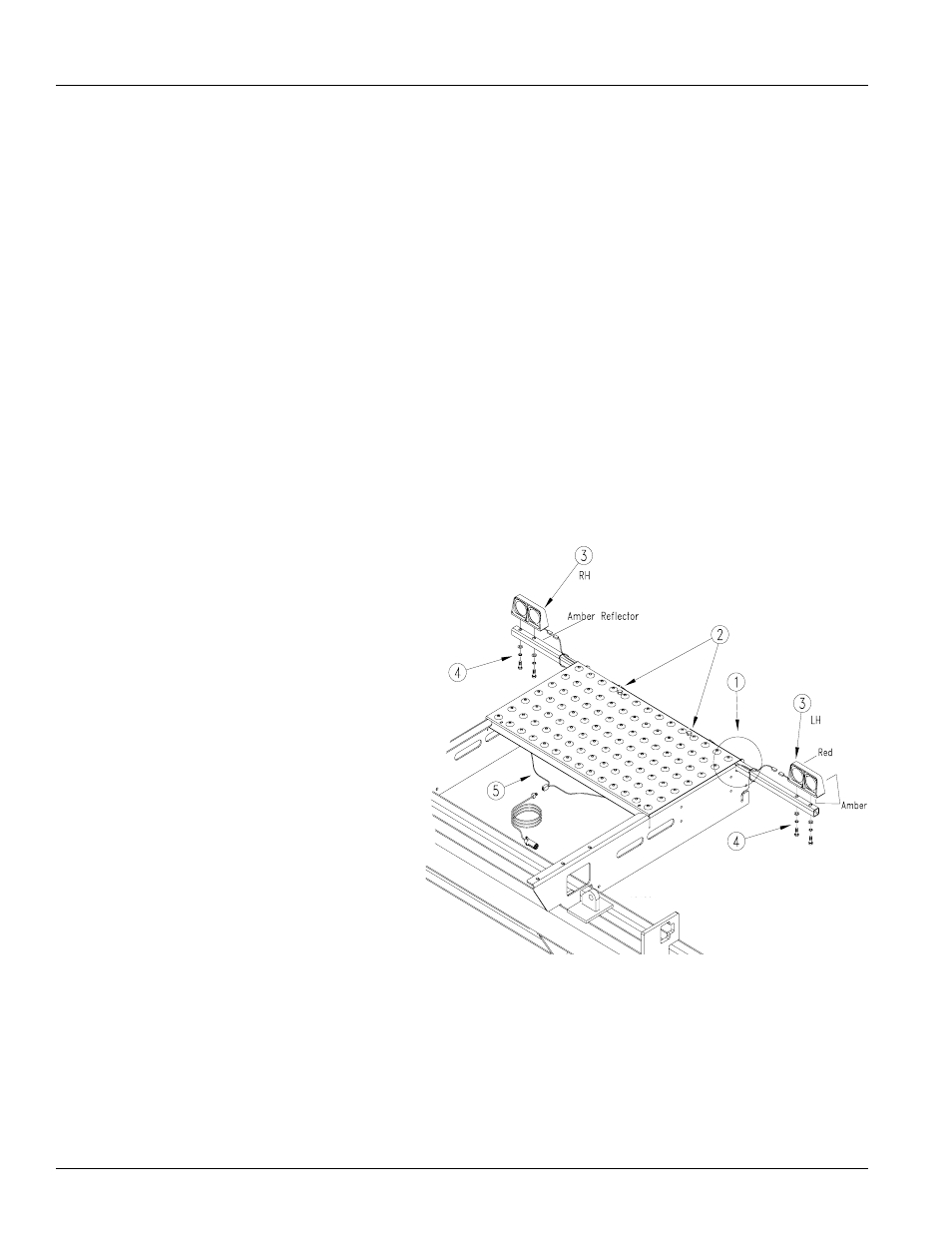

Figure 15
Light Assembly/Wire Harness
Assembly
