15 7/29/2004 NTA 1000 and NTA 1300 148-528Q
Great Plains Mfg., Inc.
Contact Wheel cont.
Refer to Figure 24
14. Drive the roll pin into the single holed end of the axle
shaft (32). Be sure there are even lengths of the roll
pin (39) on each side of the shaft.
15. Assembly the axle shaft (32) by sliding two of the ma-
chines washers (33) onto the shaft, double hole side
first, then through the first wheel (34) and the contact
wheel arm.
16. Assembly the other wheel and eight machined wash-
ers onto shaft as it is pushed through. Continue to
slide shaft through to the drive shield.
17. Install the offset drive wheel collar (35), lining up the
inside hole on the shaft with the hole in the collar and
securing together with a roll pin (36). Place two ma-
chined washers on axle shaft with the 42C17 sprocket
(37) following with three more machines washers after
that. Fasten together in place with the roll pin (38) in
the last hole.
19445

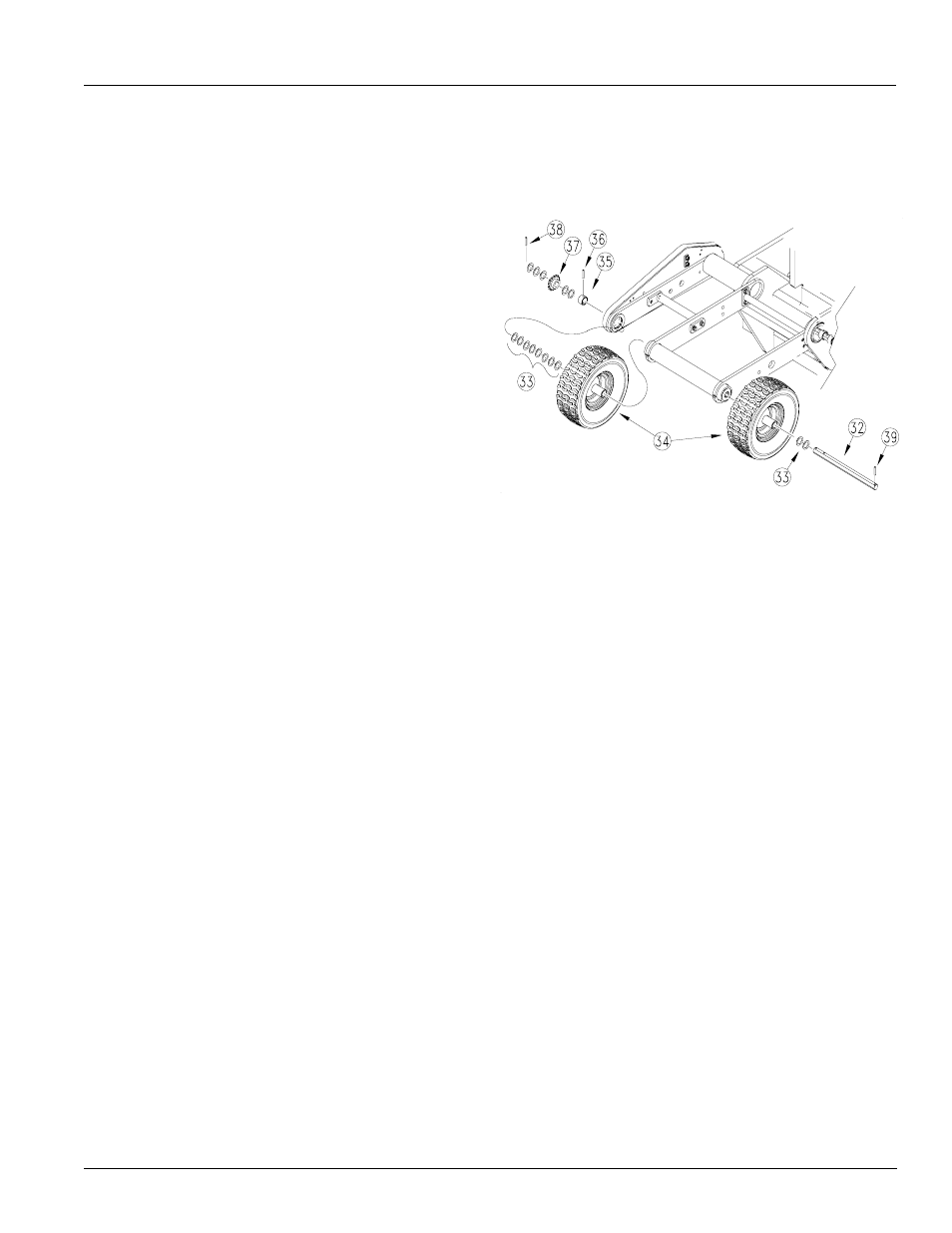

Figure 24
Axle Shaft
Assembly
