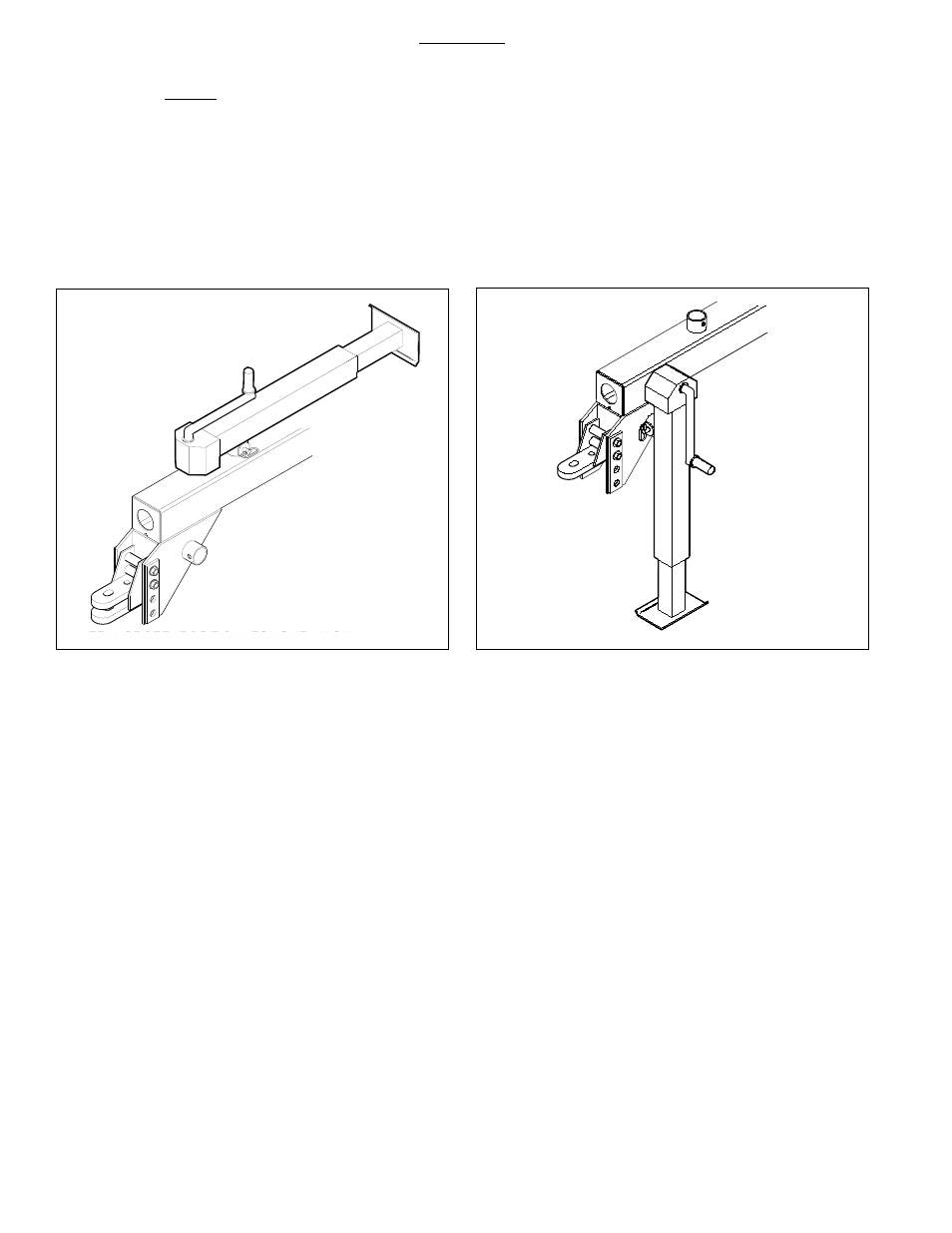

Jack in Transport Position
Fig. 14
PARKING
The following steps should be done when preparing to
store the drill or unhitch it from the tractor. See also "
Stor-
age
" page 8-2 for additional information on the long term
storage of your drill.
1. Raise and fold the drill.
2. Park the drill on a level, solid area.
3. Remove the jack from its storage post on top of the
tongue, Fig. 14, and pin it on the post located on the left
side of the main tongue, see Fig. 15.
4. If the ground is soft, place a board or plate under the
jack to widen the ground contact area.
5. Extend the jack until the weight of the tongue is on the
jack and has been removed from the tractor drawbar.
6. Unplug the drill’s hydraulic lines from the tractor.
7. Remove the hitch pin and safety chain from the tractor
drawbar.
11854
Jack in Vertical Position
Fig. 15
