20 8315-8324DVN Great Plains Manufacturing, Inc.
550-466Q-ENG 11/25/2013
89. Alternate Assembly Method for JIC.
a. If torqued method not possible, follow steps a-c
(step 80), then proceed to the steps below.
b.Lightly wrench tighten the nut until there is firm
resistance.
c. Place a wrench on wrench pad next to nut as
near the 6 0’clock position as possible.
d.Place second wrench on nut as near the 3
o’clock position as possible.
e.Turn nut clockwise to no less than the 4 o’clock
position and no more than the 6 o’clock position.
Required rotation generally decreases as size
increases.
Refer to Figure 18
Attach Hose Clamps and Hose wraps
90. When all the hoses are hooked up and tightened prop-
erly, put hose clamps on hoses as shown.
91. Install hose wraps on hoses as needed.
Note: Be sure and get hoses and light wiring harness fas-
tened properly so they do not drag. Check to be sure
there is enough slack in hinge area when folding ma-
chine the first time.
Hydraulic Hose Hookup
92. Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to
the same remote valve are marked with the same color.
Color Hydraulic Function
Black Lift (2 hoses)
Green Fold (2 hoses)
Red Gang (2 hoses)

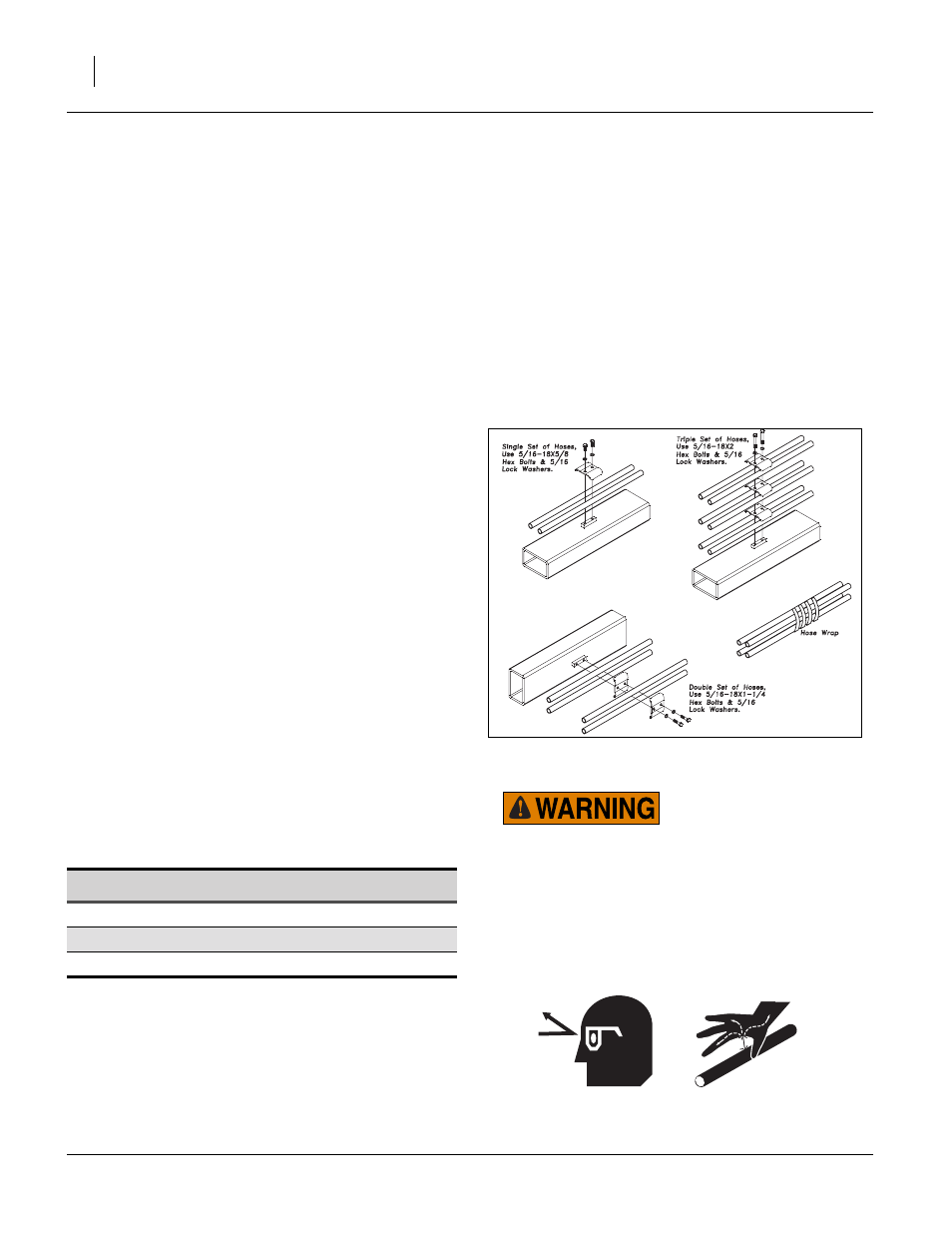

Figure 18
Hose Clamp Assembly
41583
High Pressure Fluid Hazard:
Relieve pressure before disconnecting hydraulic lines. Use
paper or cardboard, NOT BODY PARTS, to check for leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems. Escaping fluid under pressu
can have sufficient pressure to penetrate the skin causing se
ous injury. If an accident occurs, seek immediate medical
assistance from a physician familiar with this type of injury.
Only trained personnel should work on system hydraulics.
