Page 33
Great Plains Manufacturing, Inc.
Operating Instructions
29
2014-03-26
160-219M-A
Implement Fold
The fold/unfold (and weight transfer) functions are on a
hydraulic circuit that is shared with the hydraulic fan on
the air cart. The fan must be disabled during fold and
unfold, but is not disabled for weight transfer.
Overhead Crushing Hazard:
To prevent serious injury or death:
▲ Always use transport locks when implement is folded.
▲ Fold implement only if fold hydraulics are bled free of air
and fully charged with hydraulic oil.
▲ Stay away from frame sections when they are being raised
or lowered or are in the raised position.
▲ Keep away and keep others away when folding or unfolding
implement.
Electrocution Hazard:
To prevent serious injury or death from electric shock, keep
clear of overhead power lines when transporting, folding,
unfolding or operating all air drill components. Machine is not
grounded. At higher voltages, electrocution can occur without
direct contact.
1.
Fold implement on level ground. Be aware of
clearance required to fold implement. See
“Specifications and Capacities” on page 62.
2.
Set tractor hydraulic circuit for fold/unfold to neutral.
3.
On seed monitor terminal, use soft key to command
Fold to Off.
Refer to Figure 32
4.
Set air cart’s hydraulic fan valve to off (handle left).
Refer to Figure 33
5.
Turn drill’s hydraulic selector valve to fold/unfold
(handle down).
6.
Raise drill until all lift cylinders are completely
extended.
7.
Install transport locks as described under “Lift
System Transport Locks” on page 23.

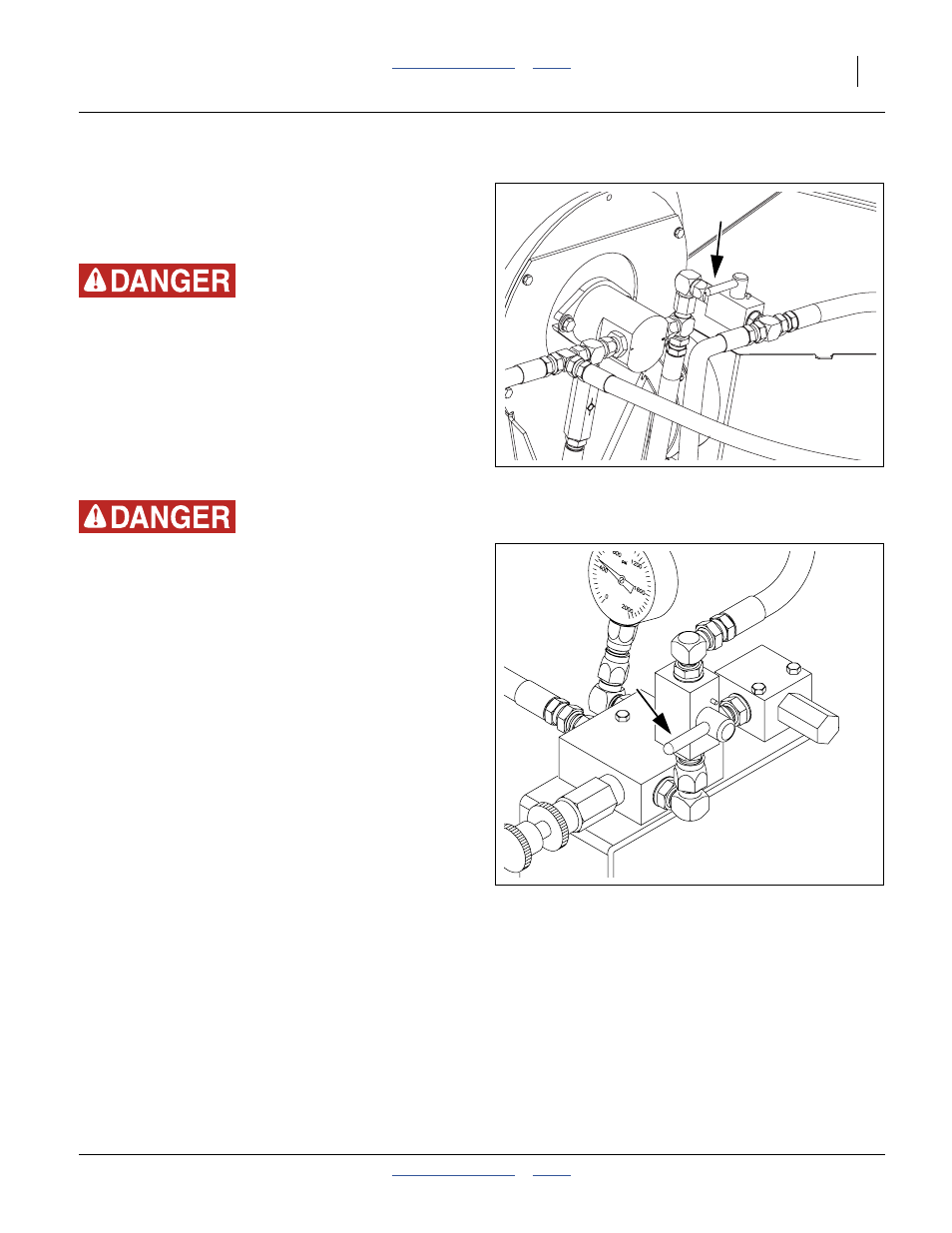

Figure 32
Cart Fan Off for Fold
26419
Figure 33
Drill Valve Set For Fold
26413
