63 Maintenance and Lubrication
Refer to Figure 85
13. Close and pin meter clean out.
Refer to Figure 86
14. Open and pin sliding seed tube.
Chain Tension. The seed meter drive has a
spring-loaded idler which requires no adjusting.
However, chain stretch may make it necessary to
shorten the chain.
Refer to Figure 87
For best chain tension the recommended vertical
distance between chain idlers should be not less
than 1/4 inch and not more than 1/2 inch. This
measurement should be taken with opener arms
horizontal.
Refer to Figure 88
NOTE: The front idler should be below the rear
idler. Be sure chain is installed with the chain
connector link retainer towards the centerline
of the opener and the clip opening (spit end)
faces the opposite way of the chain travel.

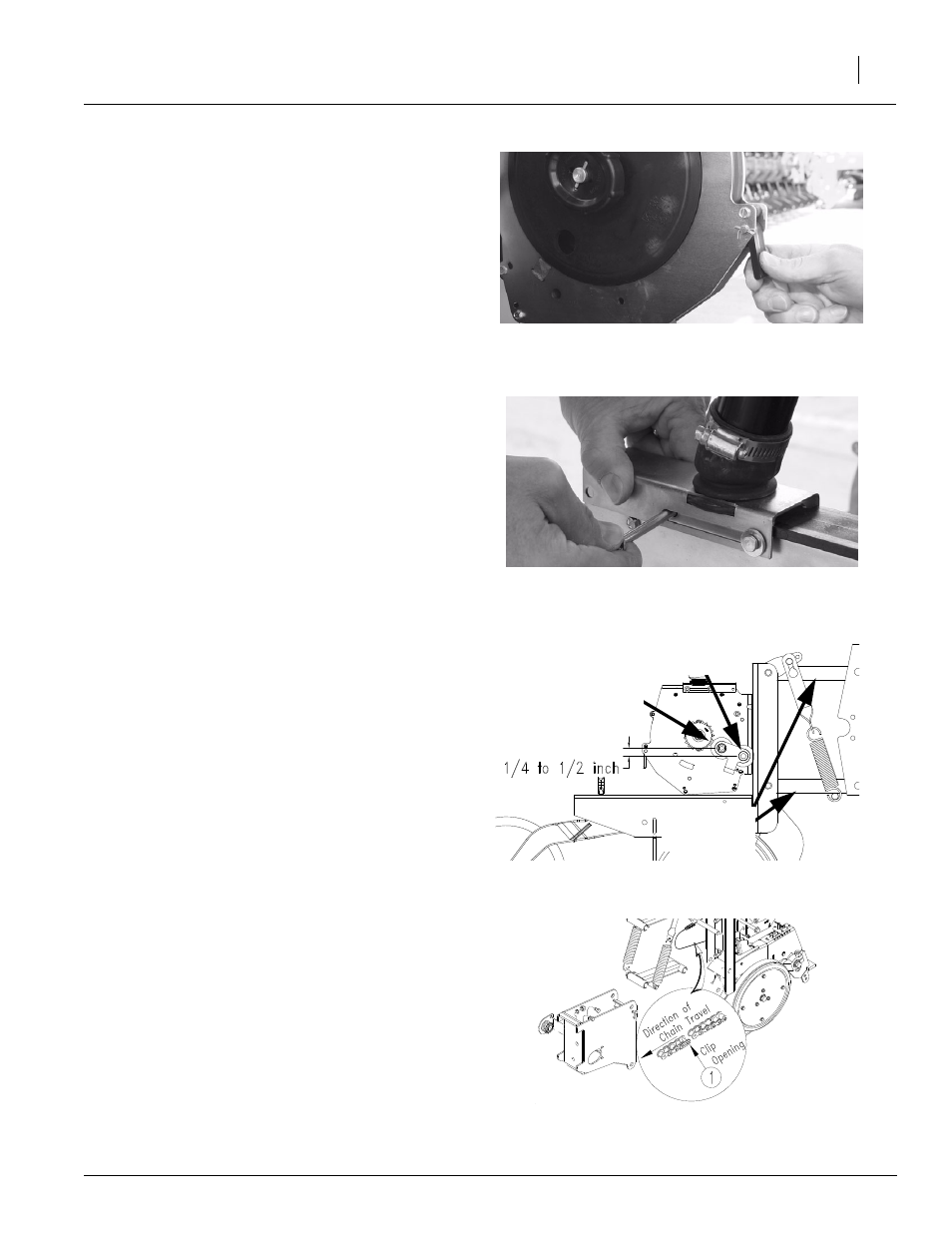

Figure 85
Close and pin clean out
22857
Figure 86
Open and pin sliding seed tube
18300
Figure 87
Seed Meter Chain Idlers
18300
Arms
horizontal
rear idler
front idler
19598
Figure 88
Chain retainer
