2525P and 2520P
118-915M 4/23/2010
16
Hydraulic Hose Hookup
Refer to Figure 3
Great Plains hydraulic hoses are color coded to
help you hookup hoses to your tractor outlets.
Hoses that go to the same remote valve are
marked with the same color.
To distinguish hoses on the same hydraulic cir-
cuit, refer to plastic hose holder. Hose under
extended-cylinder symbol feeds cylinder base
ends. Hose under retracted-cylinder symbol
feeds cylinder rod ends.
Color Hydraulic Function
Orange Marker Cylinders

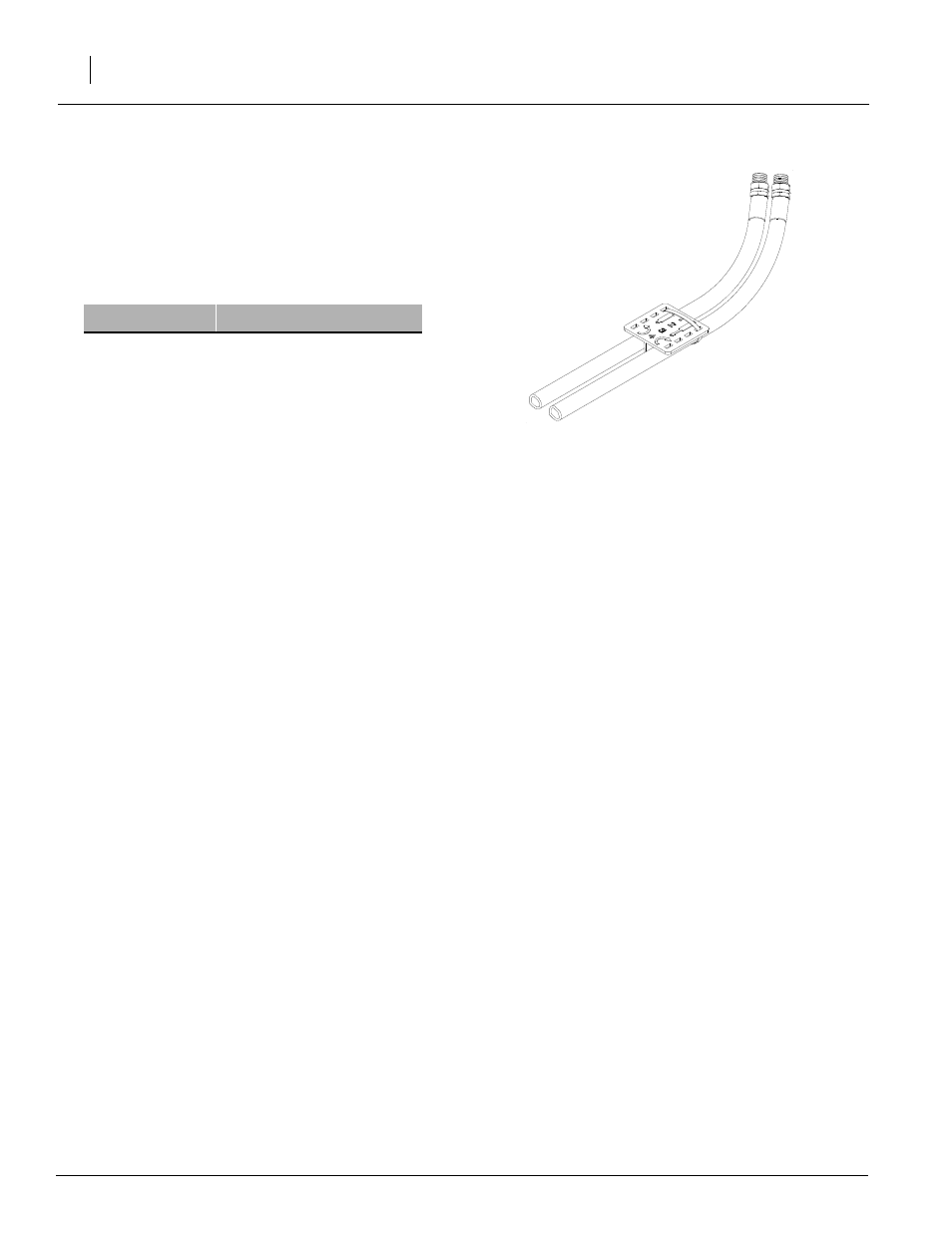

Figure 3
Hydraulic Hose Label
17641
