Connect Chain

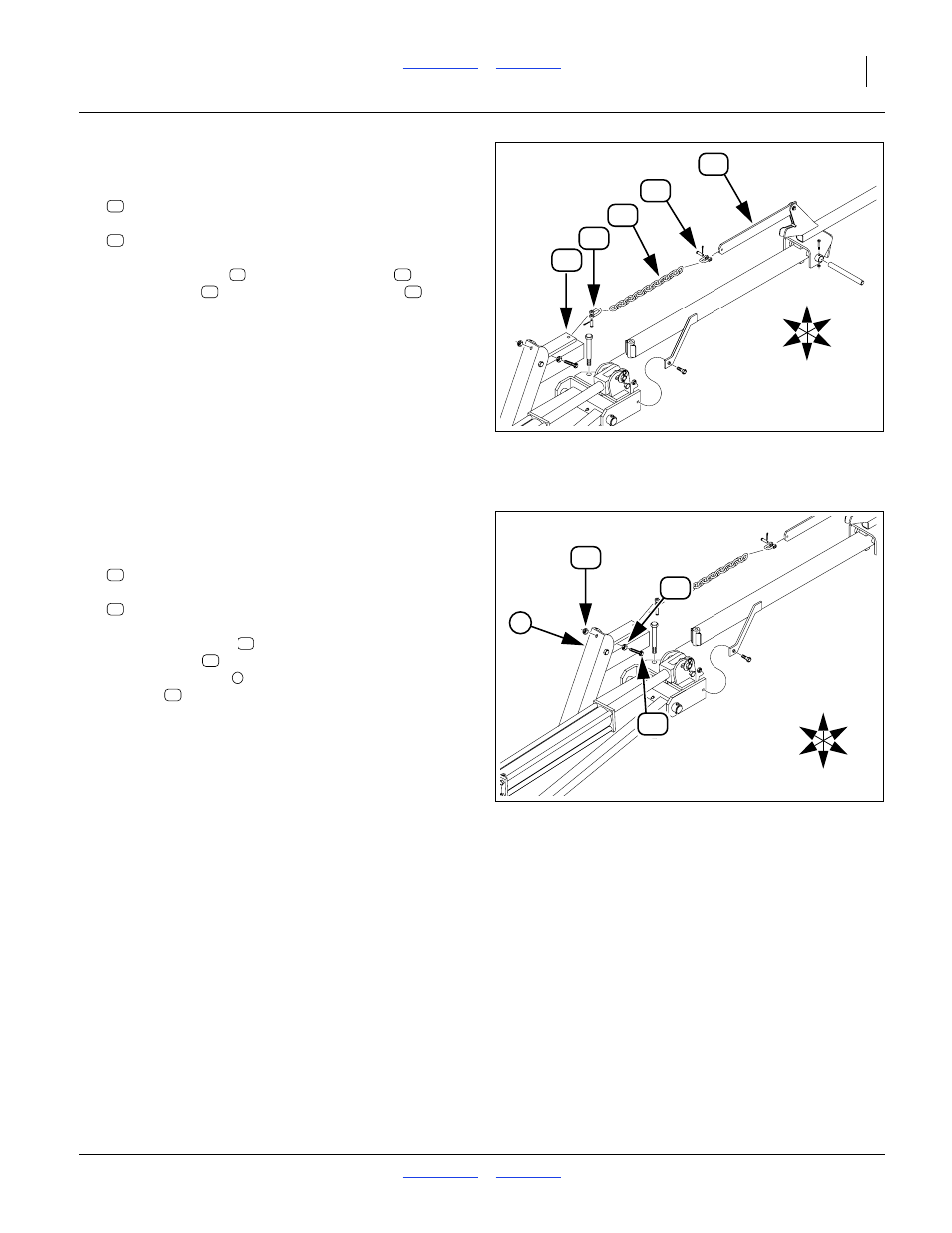

Refer to Figure 6
15. Select one new:
113-328D CHAIN COIL 1/4 HIGH TEST 50 IN
and two sets new:
890-178C SCREW PIN ANCHOR SHACKLE
Use the shackles to connect the chain from
the chain bar to the chain bar weldment .
Remove any twists and slack from chain when
making inner (chain bar weldment) connection.
Install Stop Bolt
Refer to Figure 7
16. Select one new:
802-261C HHCS 3/8-16X2 1/2 GR5 FTHD
and two new:
803-013C NUT LOCK 3/8-16 PLT
Place one lock nut all the way on to the full-
threaded bolt . Insert it through the inner side of
the chain channel . Loosely secure it with a second
lock nut . This is adjusted at “Check Slack and
Stop Bolt” on page 15.
17. Repeat step 12 through step 16 for the right hand
marker.
