Install Hydraulics Front Page Appendix Great Plains Manufacturing, Inc. 11
2013-09-05 Front Page Appendix 113-786M
Connect Hitch Hoses at Sequence Valve
Note: The parts below (excepting the hose clamps) are
not provided in kits 113-784A or 113-466A. These
parts, or similar separately provisioned parts, are
necessary for a tractor connection.
Refer to Figure 16
46. Select two new:
811-724C HH1/4R2 084 3/4MORB 9/16FJIC
Connect the FJIC ends to the forward ports (1&2) of
the sequence valve
. Use no pipe thread sealant.
47. Select one or two sets new:
502-067D HYD HOSE CLAMP LABEL
502-068D HYD HOSE CLAMP BRACKET
802-009C RHSNB 5/16-18X1 1/4 GR5
803-199C NUT HEX FLANGE 5/16-18 PLT
Assemble one clamp near the MORB ends of the
hoses
. Optionally assemble the other clamp
wherever needed for hose management.
Note: Either hose can go under the extend/retract
symbols, as this is an alternating circuit. If only
one clamp set is installed, you could omit the label
parts
and use two bracket parts . If label
parts are used, make the symbols consistent with
each other and any hose handles.
48. Select one each new:
811-917C HG HANDLE - YELLOW EXT
811-917C HG HANDLE - YELLOW EXT
Disassemble each handle. Connect the MORB-
FORB adaptor
to the MORB end of the hoses.
Use no pipe thread sealant.
49. Select two new:
811-394C CP 3/4FORB MALE QD POPPET TYPE
Connect each coupler to the MORB end of the
adaptor . Use no pipe thread sealant.
50. Reassemble the hose handles. If clamp labels were
used, match symbols on each hose assembly.

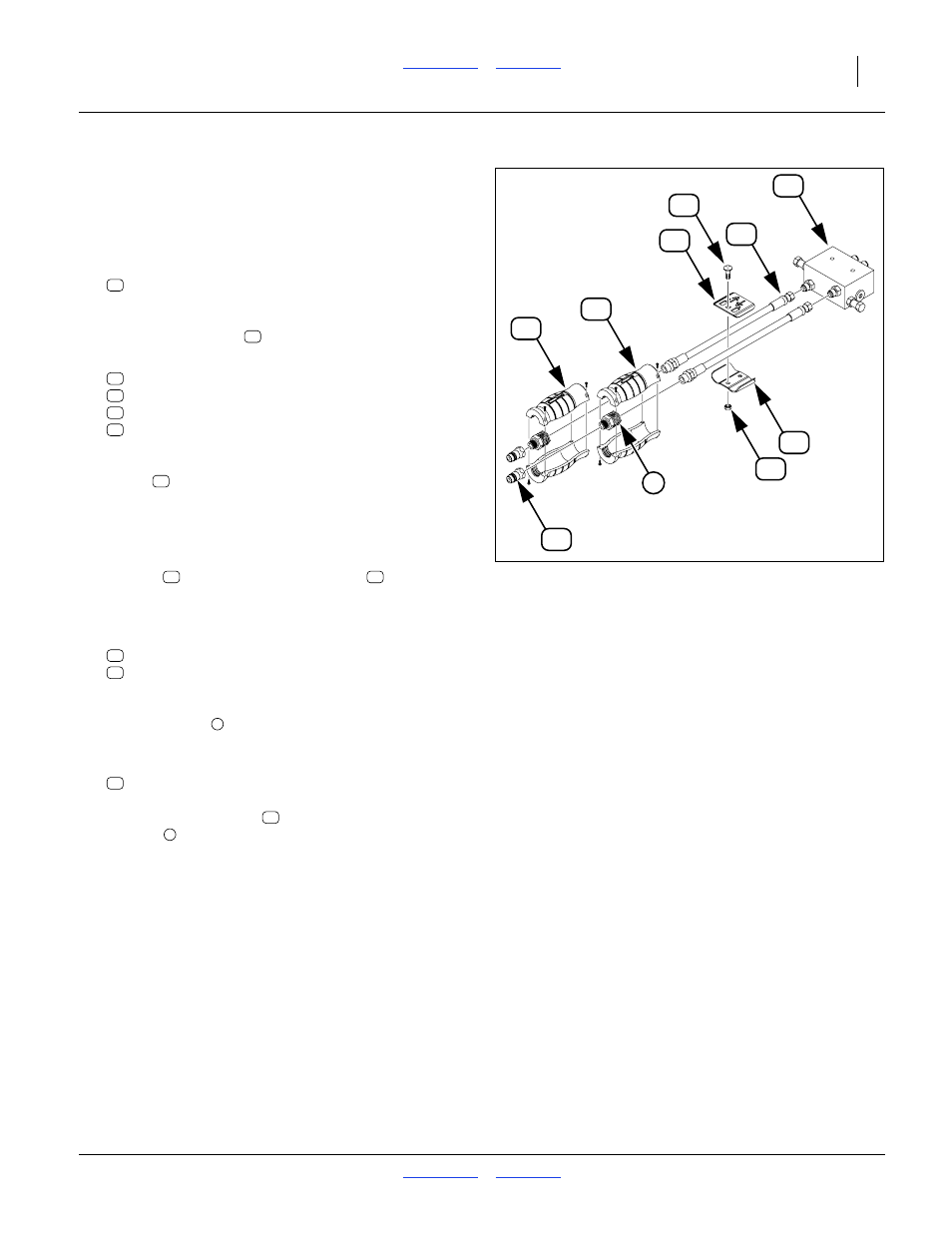

Figure 16
Sequence Hoses to Hitch
36029
88
80
44
63
39
38
7
38
38
38
88
80
38
39
44
63
88
38 39
90
90
7
86
86
7
