Great Plains Manufacturing, Inc.
1
© Copyright 2012
Printed 2013-09-05
113-786M
Installation Instructions
25-Foot Marker Option
Used with implement models:
• 2510HDP 25-Foot Precision Drills
• 2520F 25-Foot Drills
• 2520P 25-Foot Precision Drills
• 2525A 25-Foot Air-Pro
®
Planter
• 2525F 25-Foot Drills
• 2525P 25-Foot Precision Drills
General Information
Covered Kits
Refer to Figure 1
These instructions explain how to install field markers,
for independent (two circuit) operation, or
with an optional (single circuit) sequence valve.
One kit outfits one implement.
Independent Hitch Fittings
The standard (two circuit, independent operating)
113-784A includes four hoses to the hitch terminated in
1
⁄
2
inch male NPT fittings. If tractor remotes are female
QD (Quick Disconnect), also order:
Sequenced Hitch Fittings
The 113-466A sequence valve kit does not include
hoses to the hitch. It terminates at
9
⁄
16
inch male JIC
ports at the sequence valve. If tractor remotes are
female QD (Quick Disconnect), also order:
Kit
Kit Description
113-784A MARKER 3PT 2520-P DUAL NO SEQ
113-466A 94 3PT SEQ VALVE KIT-FIELD
Qty
Part
Kit Description
4
811-856C CP 1/2FNPT MALE QD
Qty
Part
Kit Description
2
811-724C HH1/4R2 084 3/4MORB 9/16FJIC
1
811-917C HG HANDLE - YELLOW EXT
1
811-918C HG HANDLE - YELLOW RET
2
811-394C CP 3/4FORB MALE QD POPPET TYPE
When you see this symbol, the subsequent instructions
and warnings are serious - follow without exception.
Your life and the lives of others depend on it!

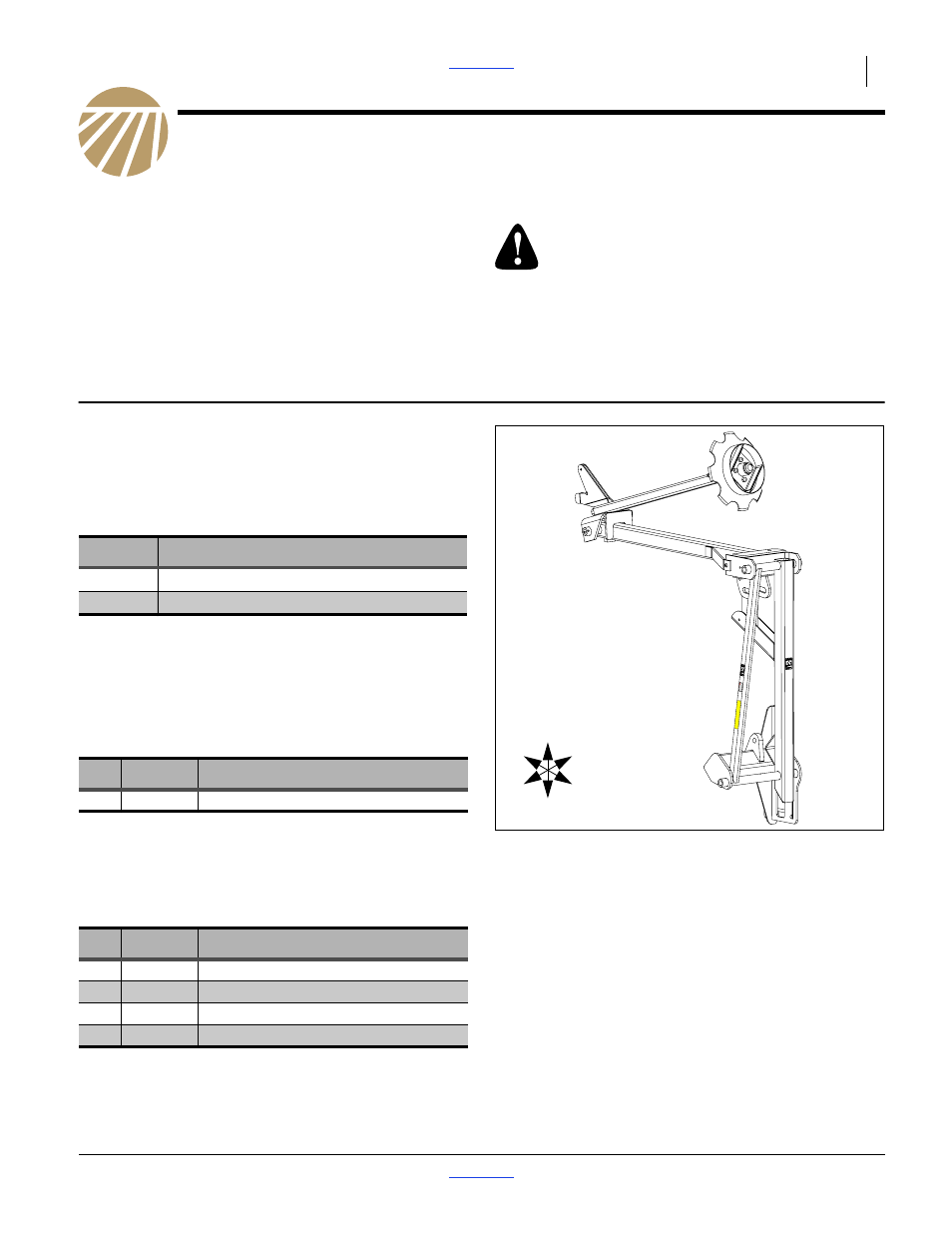

Figure 1
LH Marker Major Components
19196
U
D
F
B
O
I
