Install SMV Reflector
Refer to Figure 45
The SMV reflector
is shipped pre-assembled to the
mount , but mounted inverted on the walkboard. The
SMV must be repositioned to upright to prevent contact
with row units during operation.
Remove and save two sets:
802-092C RHSNB 5/16-18X3/4 GR5
804-009C WASHER LOCK SPRING 5/16 PLT
803-008C NUT HEX 5/16-18 PLT
Orient the reflector assembly upright, and red/orange
reflective side to rear. Secure mount to walkboard
with bolts , lock washers and nuts .

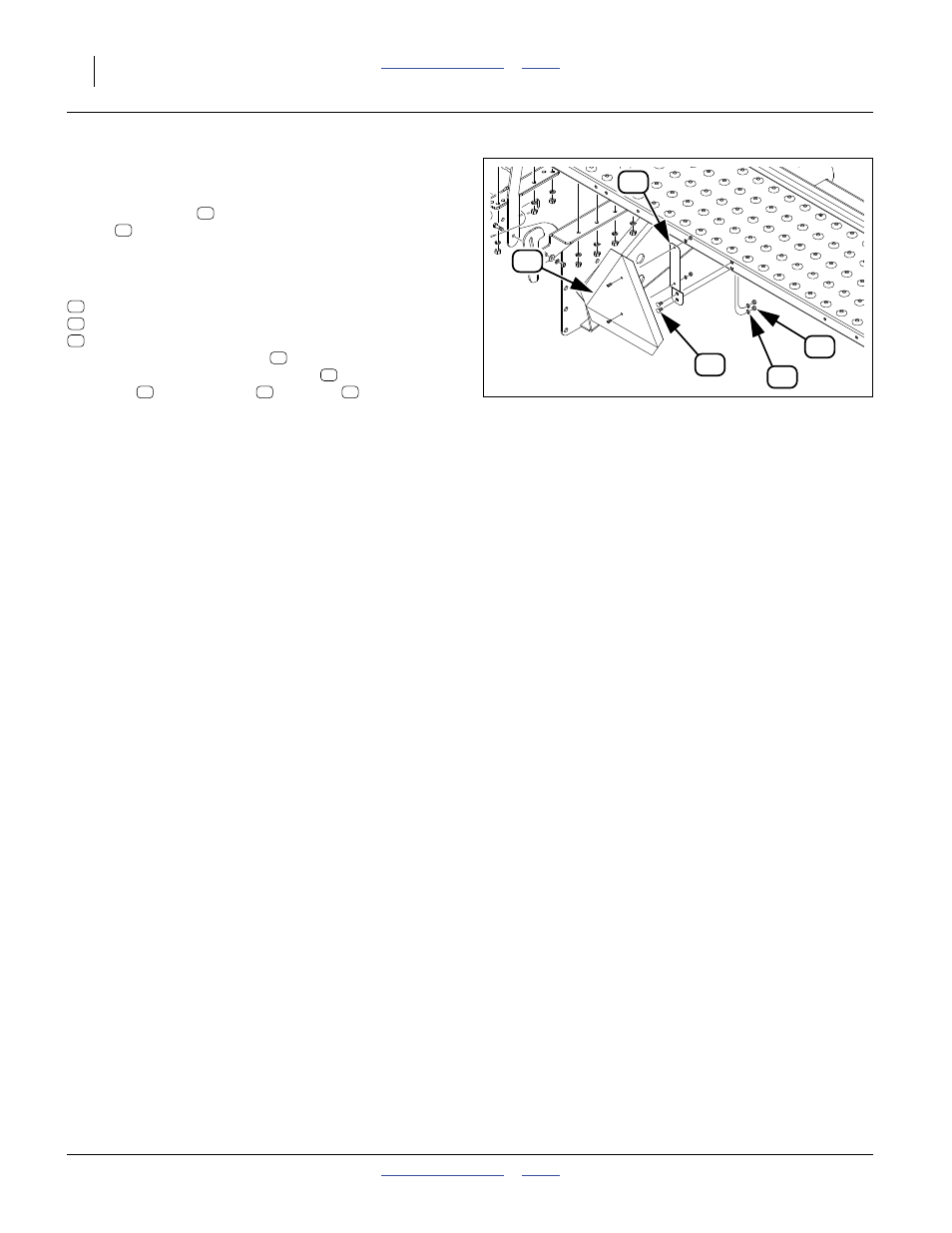

Figure 45
SMV Reflector
28055
24
38
27
11
22
38
11
22
27
24
38
11
22 27 24
