11. Unhitch tractor, and pull tractor forward.
12. Carefully swing tongue to vertical. Have one person
on the chain to keep the tongue from striking the drill.
13. Using a turnbuckle pin, re-pin the tongue crossbar
lug at the hole in the down-pressure weldment.
14. Using the other turnbuckle pin, secure the turnbuckle
to one side of the upper turnbuckle lug on the
down-pressure weldment.
Return to Use
Two or three people are needed for this operation.
15. Move the upper end of the turnbuckle from the side
of the down-pressure weldment to the normal clevis
engagement.
16. Un-pin tongue crossbar lug at down-pressure
weldment.
17. Carefully swing tongue forward until pin can be re-
inserted at lower clevis of turnbuckle and crossbar
lug.
18. Do not remove tongue jack until hitched to tractor.

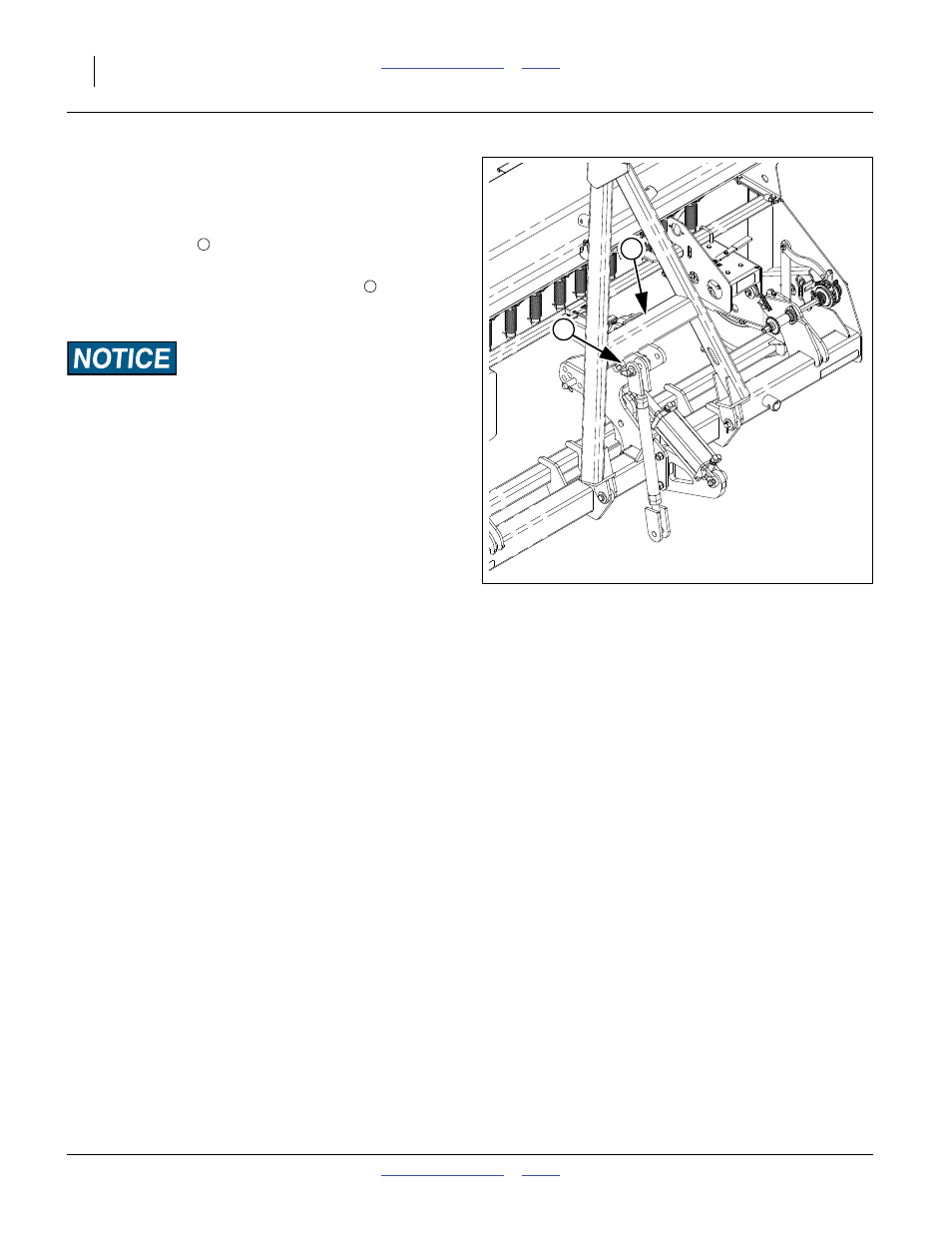

Figure 17
Tongue Elevated to Vertical
32626
