Page 18
2. A
SSEMBLY
W
HEATHEART
- P
OWER
S
WING
M
ANUAL
2.5. H
YDRAULIC
P
OWER
S
WING
(O
PTION
)
E
LECTRIC
AND
H
YDRAULIC
18
30802 R0
6. Secure the hose by bending the half-clamp retainer clips closed with a
hammer. See Figure 2.11 for clarification.
7. Install
Pioneer
couplers onto the other end of the long hydraulic hoses.
8. Install hose extensions if required.

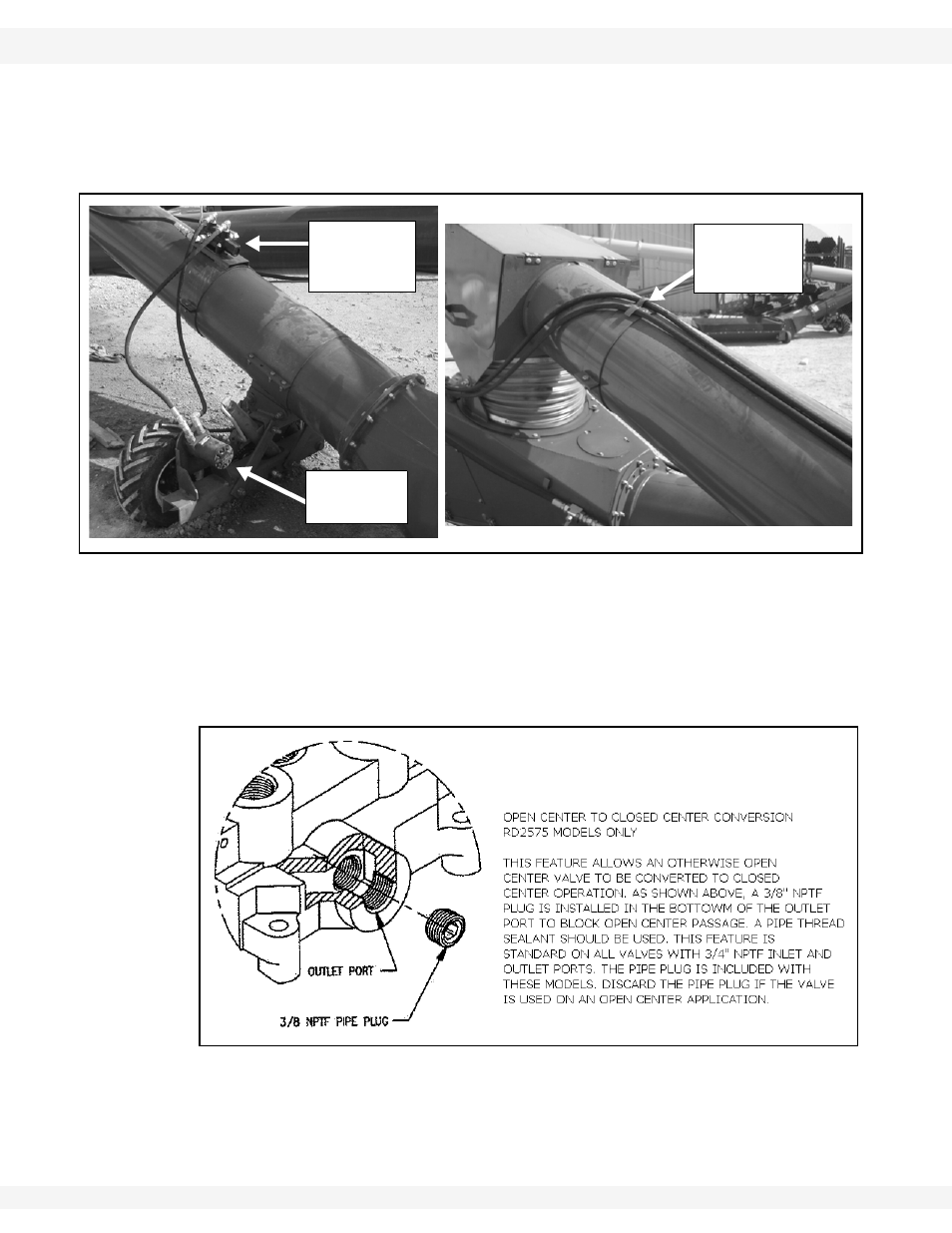

Figure 2.11 Hydraulic Hose Routing
Note:
To determine whether your hydraulic system is an open system or a closed
system, check your tractor manual.
For a closed system, install the 3/8” NPT Diverter plug that comes with the
control valve. Insert plug into control valve as shown in Figure 2.12.
For an open system, DO NOT install the plug (Figure 2.12).
Figure 2.12 Open to Closed Center Conversion
HYDRAULIC
CONTROL
VALVE ASSY
HALF-CLAMP
RETAINER
CLIPS
HYDRAULIC
MOTOR
