W HEATHEART - P OWER S WING M ANUAL 2. A SSEMBLY
E LECTRIC AND H YDRAULIC 2.3. P OWER S WING A SSEMBLY
30802 R0 13
2.3. POWER SWING ASSEMBLY
2.3.1. A SSEMBLE B OTTOM C LAMP TO P OWER S WING A SSEMBLY
1. Assemble bottom clamp onto Power Swing assembly, as shown in Figure
2.4. The long side of the clamp must face away from the wheels.
2. Use two 5/8” x 1-1/2” bolts (19590) and locknuts (19600) for the pivot point
(at the front of the clamp). For the rear of the clamp, use two 5/8” x 1-1/2”
bolts (19590) and locknuts (19600) and two 5/8” flat washers (18096), as
shown in Figure 2.4. Tighten these bolts loosely, so the clamp angle is
adjustable.

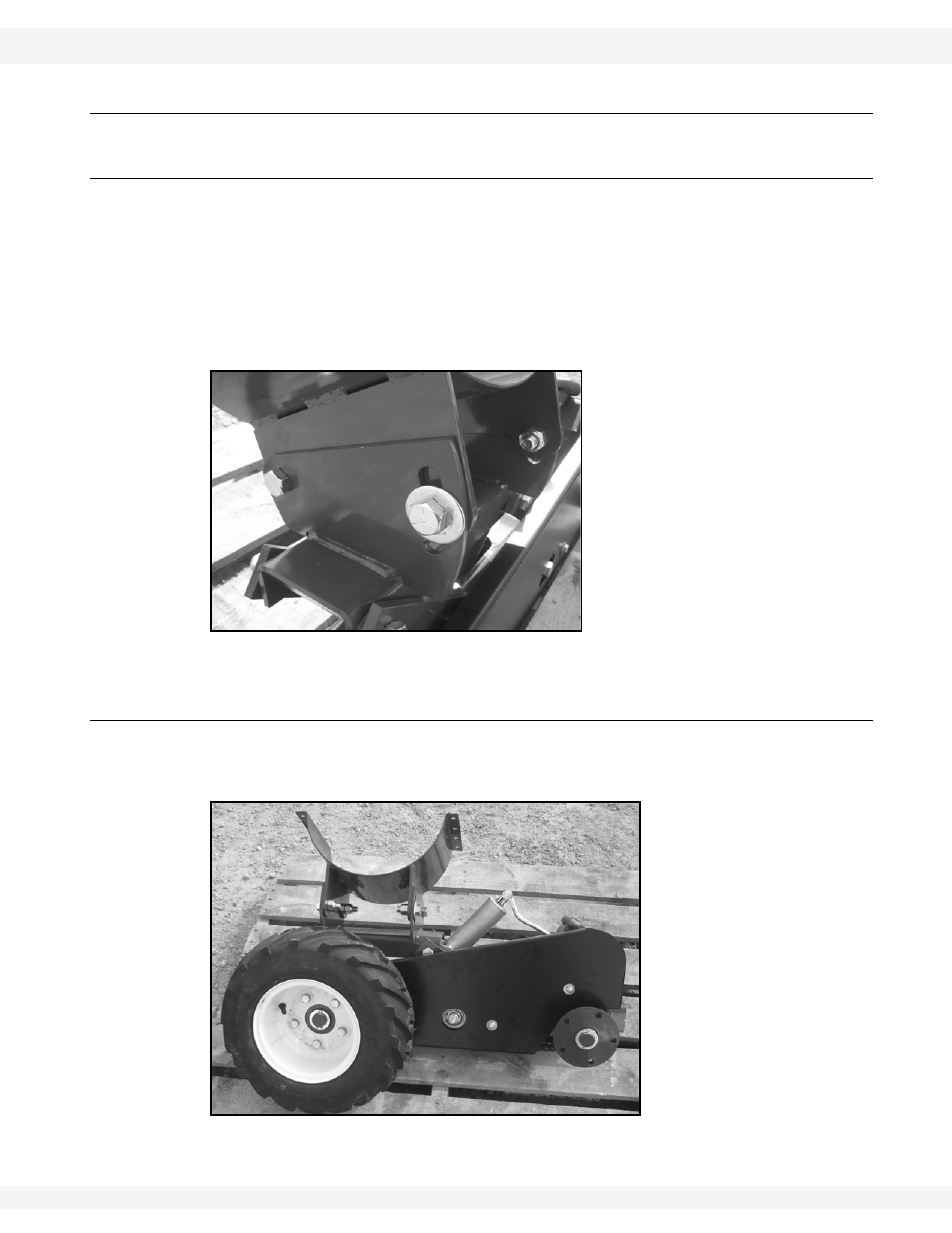

Figure 2.4 Adjustable Bottom Clamp Angle
2.3.2. A
SSEMBLE THE
W
HEELS TO THE
P
OWER
S
WING
1. Assemble both wheels to Power Swing sub-assembly using five 1/2” x 1-1/2”
wheel bolts (19273) per wheel. Tighten bolts securely.
Figure 2.5 Power Swing Wheel Assembly
