2. A SSEMBLY W HEATHEART - P OWER S WING M ANUAL
2.4. E LECTRIC P OWER S WING (O PTION ) E LECTRIC AND H YDRAULIC
14 30802 R0
2.3.3. A
SSEMBLE THE
P
OWER
S
WING TO THE
T
UBE
1. Place the wheeled Power Swing underneath the swing tube. Position the
Power Swing axle so that the bottom clamp is on the same inclination as the
swing tube (see Figure 2.6 for clarification). Move the Power Swing down the
swing tube as far as possible (as close to the intake hopper as possible).
2. If necessary, wind the jack until the clamp is flush with the bottom of the
swing tube.
3. Install top clamp (electric or hydraulic) using eight 7/16” x 1-1/4” bolts (18698)
and locknuts (19598), as shown in Figure 2.6 (electric option shown).
Tighten both sides securely.
4. Once Power Swing operating position is determined, align wheels vertically
to ground. Tighten 5/8” bolts and locknuts securely, locking this position in
place (see Figure 2.6).

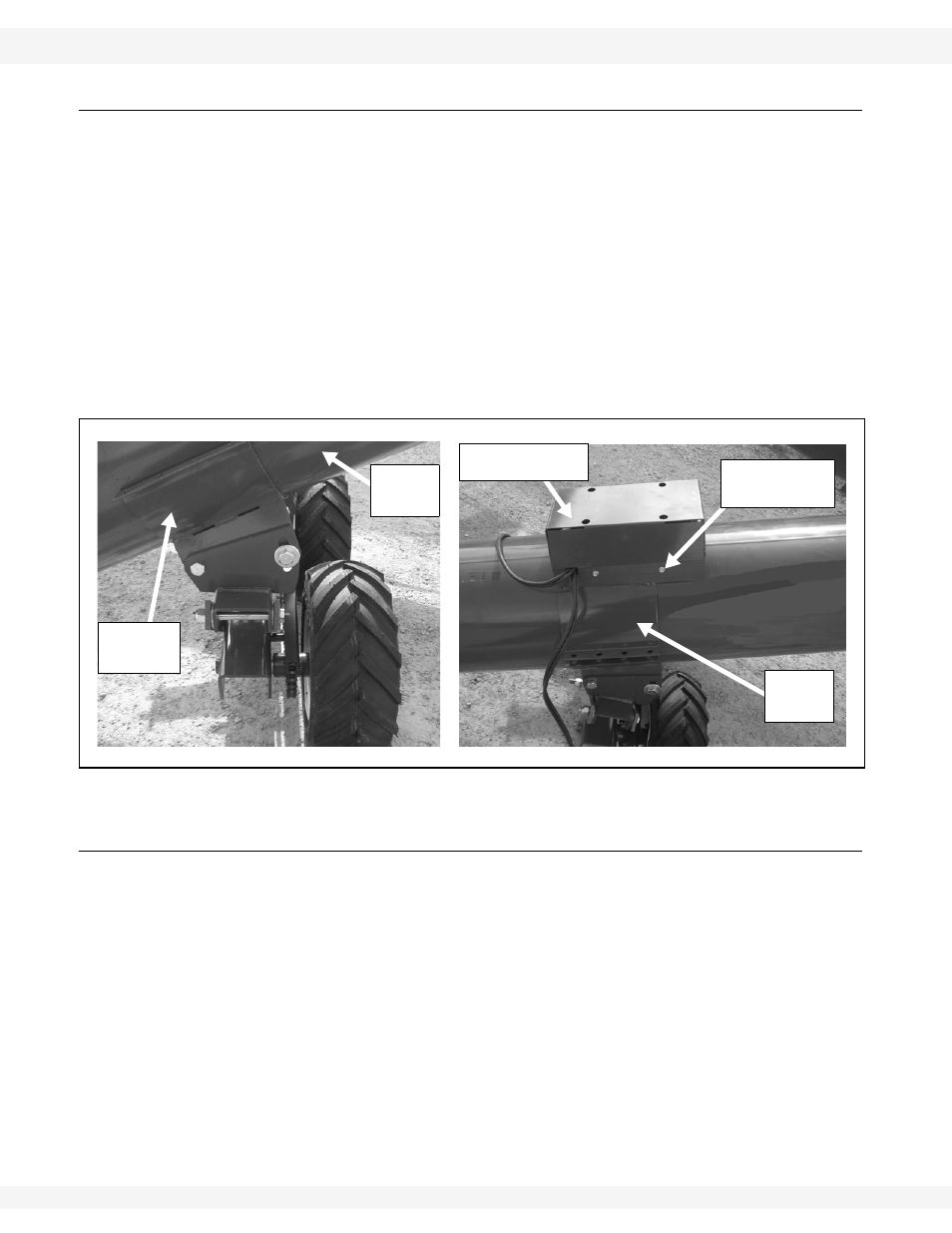

Figure 2.6 Bottom and Top Clamp Positions
2.4. ELECTRIC POWER SWING (OPTION)
1. Remove cover from the receiver box and top clamp assembly. This means
removing the four sheet metal screws (#14 x 5/8”) located on the sides of the
cover. See Figure 2.6.
2. Remove radio antenna and transmitter from the crate (it will be in a separate
bag). Screw antenna into the socket on the clamp-base (see Figures 2.6 and
2.7 for before and after pictures of the receiver box).
3. Replace cover, making sure that the antenna fits through the top hole, as
shown in Figure 2.7. Replace sheet metal screws, and tighten securely.
SHEET METAL
SCREWS
BOTTOM
CLAMP
TOP
CLAMP
RECEIVER BOX
SWING
TUBE
