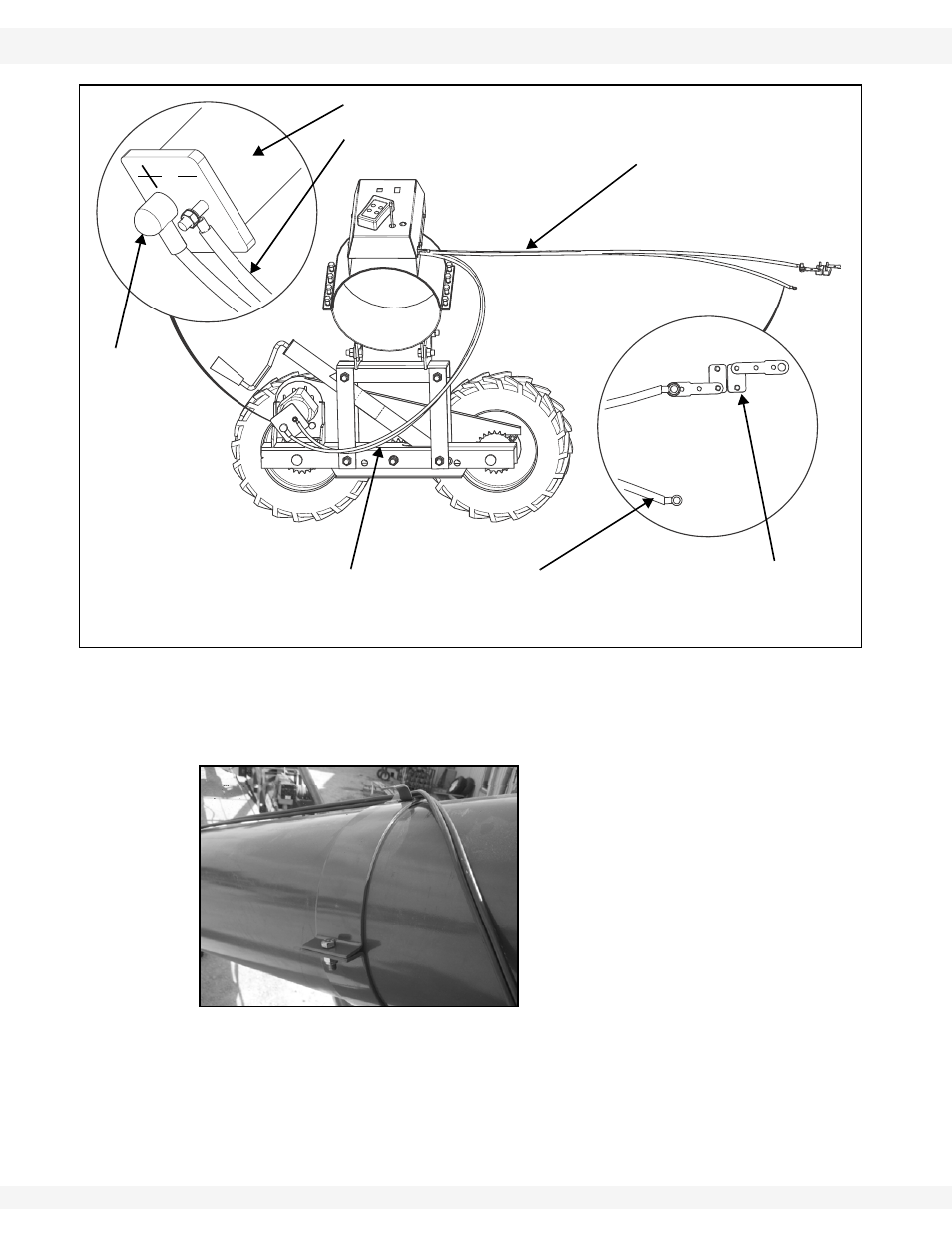

Figure 2.8 Electric Motor Wiring
6. Install a half-clamp hose/wire retainer further up the swing tube, using two
7/16” x 1” bolts (19542) and locknuts (19598). Position half-clamp in best
location, and tighten securely. See Figure 2.9.
Figure 2.9 Half-Clamp Retainer
7. Route the electrical cable over top of the boot, using existing half-clamp
retainers.
8. Uncoil the longer electrical cable from the receiver box. Identify the positive
and negative wires by referring to Figures 2.8 and 2.10. The positive wire has
a circuit breaker and printing on it.
POSITIVE
WIRE WITH
RED BOOT
CONNECTS TO
POSITIVE MOTOR
TERMINAL.
SHORT ELECTRICAL CABLE
CONNECTS TO ELECTRIC
MOTOR ON POWER SWING.
ELECTRIC MOTOR
NEGATIVE WIRE CONNECTS TO
NEGATIVE MOTOR TERMINAL.
LONG ELECTRICAL CABLE
CONNECTS TO TRACTOR
CHASSIS AND BATTERY.
POSITIVE WIRE WITH
CIRCUIT BREAKER
CONNECTS TO POSITIVE
BATTERY TERMINAL.
NEGATIVE WIRE
CONNECTS TO
TRACTOR CHASSIS.
