Before joining elbows and pipes apply a bead of high
temperature sealant to the crimped end of the elbow or
pipe. Join the pipes using a 2” (50mm) overlap and
secure the joints with three (3) sheet metal screws
(Fig. 11). Wipe off excess sealant.

There are polished brass decorative
rings available to hide the exposed
piping joints. Wrap the brass ring over

the joint fitting the stud into the notch
and tighten down the 3/8” nut.

GENERAL INFORMATION ON ASSEMBLING

THE VENT PIPES IN DIRECT VENT APPLICATIONS

CANADIAN INSTALLATIONS:

The venting system must be installed in accordance
with the current CSA-B149 (.1 or .2) installation code.

USA INSTALLATIONS:

The venting system must conform with local codes
and/or the current National Fuel Gas code ANSI
Z223.1.

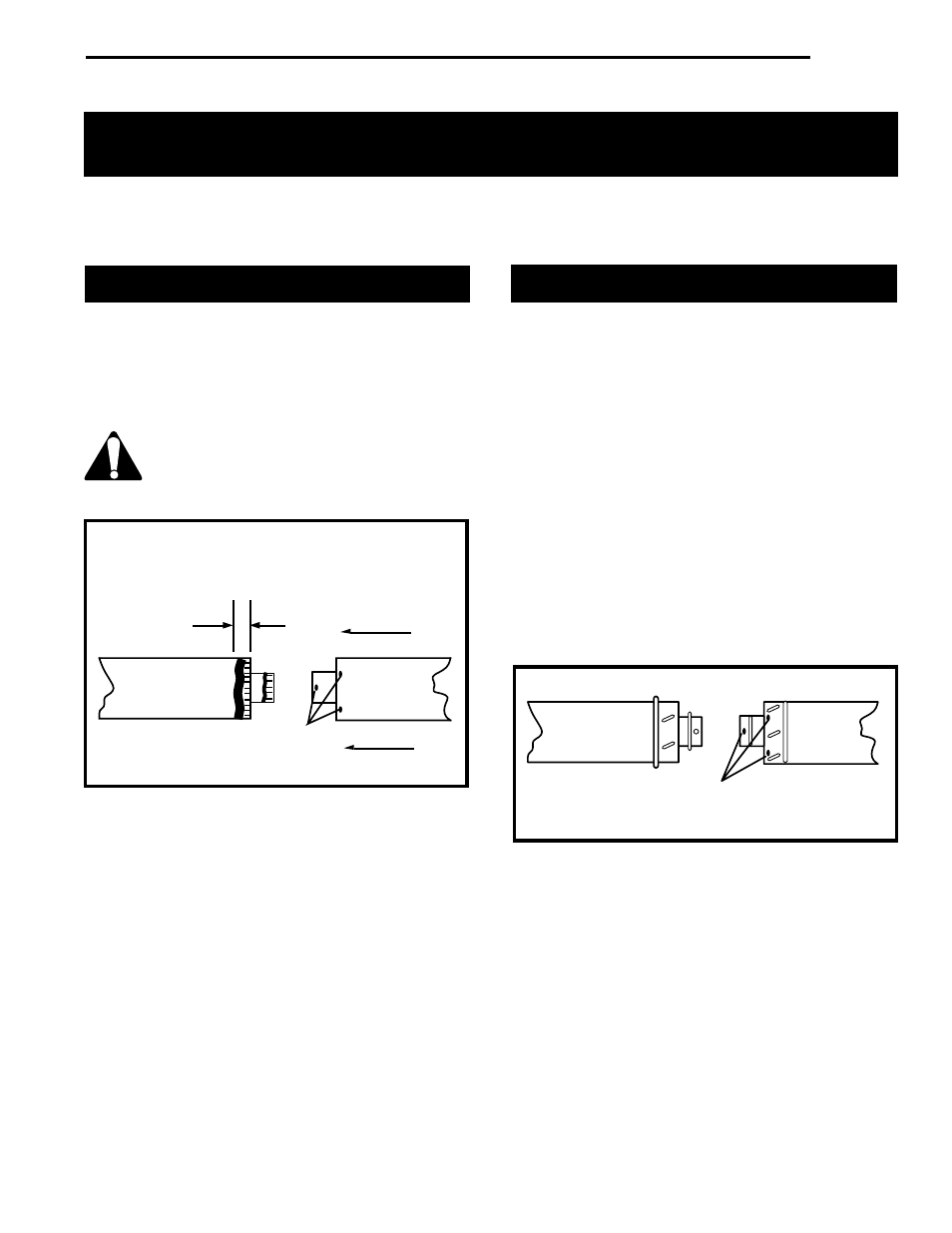

Fig. 11

Screw Holes

Fig. 12

CRIMPED END PIPES

TWIST LOCK PIPES

When using twist-lock pipe it is not necessary to use
sealant on the twist lock joints.

The only areas of the venting system that need to be
sealed with high temperature silicone sealant are the
collars on the fireplace and termination, and the sliding
joint of any telescopic vent section used in the system.

To join the twist lock pipes together, simply align the
beads of the male end with the grooves of the female
end, twisting the pipe until the flange on the female
end contacts the external flange on the male end.

It is recommended that you secure the joints with three
(3) sheet metal screws, however this is not mandatory
with twist lock pipe.

To make it easier to assemble the joints we suggest
putting a lubricant (Vaseline or similar) on the male
end of the twist lock pipe.

BEAD LOCATION

1" FROM CRIMPED END OF PIPE

1''

Screw Holes

NOTE: Only venting components manufactured by The Vermont Castings Majestic Products Company may be used.
