6
Irving Oil
10004000
The remote ON/OFF switch can not be fitted to units
using the Honeywell Radio Frequency control valve.
If the fireplace has been fitted with the Radio
Frequency Control Valve, the ON/OFF function is
controlled by the remote handset. (See the Comfort
Control Valve Operating Instruction Section).
Install on/off switch assembly on either the rear right or
left side of the Fireplace.
1. Remove the screw at the back of the cabinet top
either on the left or the right side of the fireplace.
2. Position switch assembly onto the back of the
fireplace, then fasten two screws as shown in Fig. 5.
3. Attach wiring under the clips on the rear casing
(Fig. 5) and install wiring through the rear opening
of the fireplace before connecting to the valve as
shown in Fig. 4.
When using copper or flex connector use only ap-
proved fittings. Always provide a union when using
black iron pipe so that gas line can be easily
disconnected for burner or fan servicing (see Fig. 2)
See gas specification for pressure details and ratings.
The fireplace valve must not be
subjected to any test pressures
exceeding 1/2 psi. Isolate or disconnect
this or any other gas appliance control
from the gas line when pressure testing.

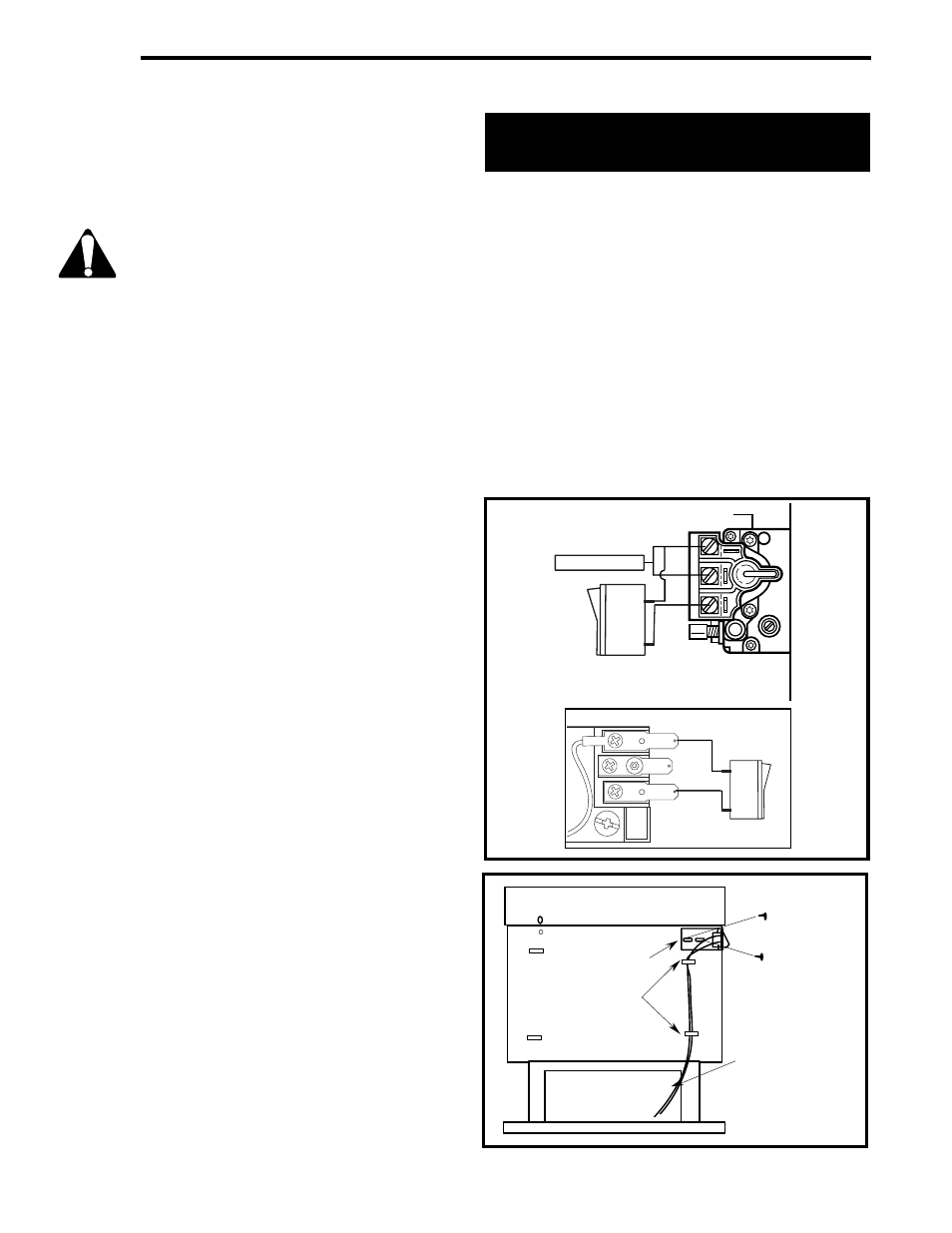

INSTALLATION OF REMOTE
SWITCH FOR RN/RP GAS VALVE
Fig. 4
PILOT
ADJ
TH
TP
TP TH
Screw
(through existing hole)
Screw
On/off switch
assembly
Clips
Wiring for milli-volt
gas valves
Fig. 5
PIL
OT
TPTH
TP
TH
ON/OFF SWITCH OR
MILLIVOLT THERMOSTAT
VALVE
THERMOPILE
