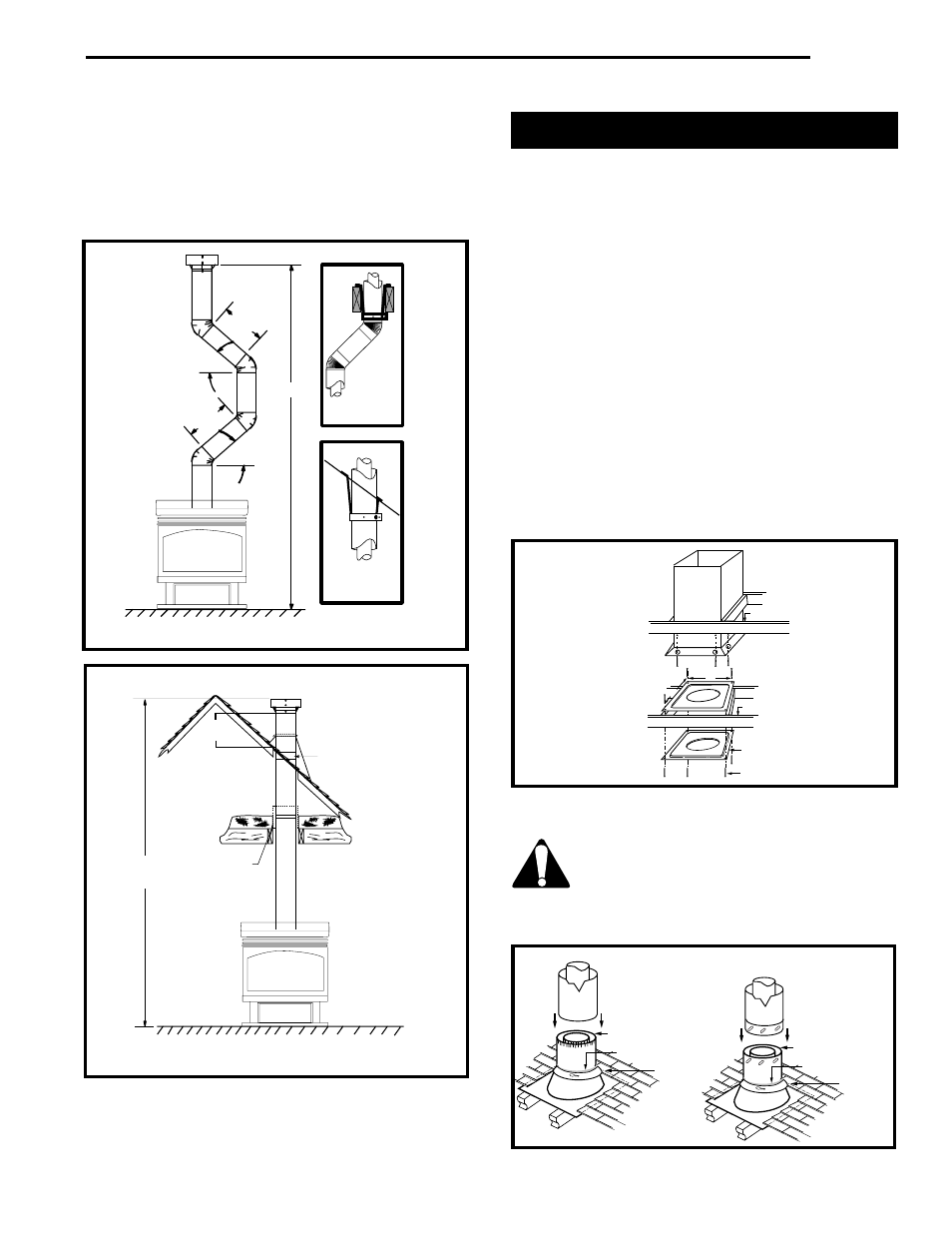

15

Irving Oil

10004000

installations. From 0 to a maximum of 8’ of vent
pipe can be used between elbows (Fig. 25).

7DVCS must be used to support offsets (Fig.
26). This application will require that you first
determine the roof pitch and use the appropriate
starter kit. (See Venting Components List)

The minimum height of the vent above the highest
point of penetration through the roof is 2 feet (Fig. 28).

Fig. 27

45°

45°

2.44m

MAX.

8 FEET

2.44m

MAX.

8 FEET

40'(12m)

TYPICAL OFFSET INSTALLATION

TYPICAL 7DVCS

APPLICATION

TYPICAL ROOF

SUPPORT

APPLICATION

Fig. 28

1.

Locate your fireplace.

2.

Plumb to center of the (4”) flue collar from ceiling
above and mark position.

3.

Cut opening equal to 9-3/8” x 9-3/8” (240 mm x
240 mm).

4.

Proceed to plumb for additional openings through
the roof. In all cases, the opening must provide a
minimum of 1 inch clearance to the vent pipe, i.e.,
the hole must be at least 9-3/8” x 9-3/8” (240 mm x
240 mm).

5.

Place fireplace into position.

6.

Place firestop(s) #7DVFS or Attic Insulation Shield
#7DVAIS into position and secure (Fig. 29).

7.

Install roof support (Fig. 27) and roof flashing,
making sure upper flange of flashing is below the
shingles (Fig. 30).

8.

Install appropriate pipe sections until above the
flashing (Fig. 30).

9.

Install storm collar and seal around the pipe.

10. Add additional vent lengths for proper height (Fig. 28).
11. Apply high temperature sealant to 4” and 7” collars

of vertical vent termination and install.

TO INSTALL VERTICAL VENTING

Fig. 29 If there is a room above ceiling
level, firestop spacer must be installed
on both the bottom and the top side of
the ceiling joists. If an attic is above
ceiling level a 7DVAIS (Attic Insulation
Shield) must be installed.
The enlarged ends of the vent section
always face downward (Fig. 30).

Fig. 29

JOIST

11"

11"

Attic
Insulation
Shield

Ceiling
Installation

JOIST

NAILS (4)

FIRESTOP
SPACER

11"

11"

UPPER FLOOR

SEALANT

SHEETMETAL
SCREWS (#5) —
3 PER JOINT

STORM
COLLAR

SEALANT

SHEETMETAL
SCREWS (#5) —
3 PER JOINT

STORM
COLLAR

Fig. 30

TYPICAL STRAIGHT-UP INSTALLATION

40 FEET

(12.2m)

ATTIC INSULATION

SHIELD

JOISTS

CEILING JIOSTS

ROOF

VENT TERMINATION

ATTIC INSULATION

ROOF SUPPORT

STORM COLLAR

ROOF FLASHING

2' Min.
