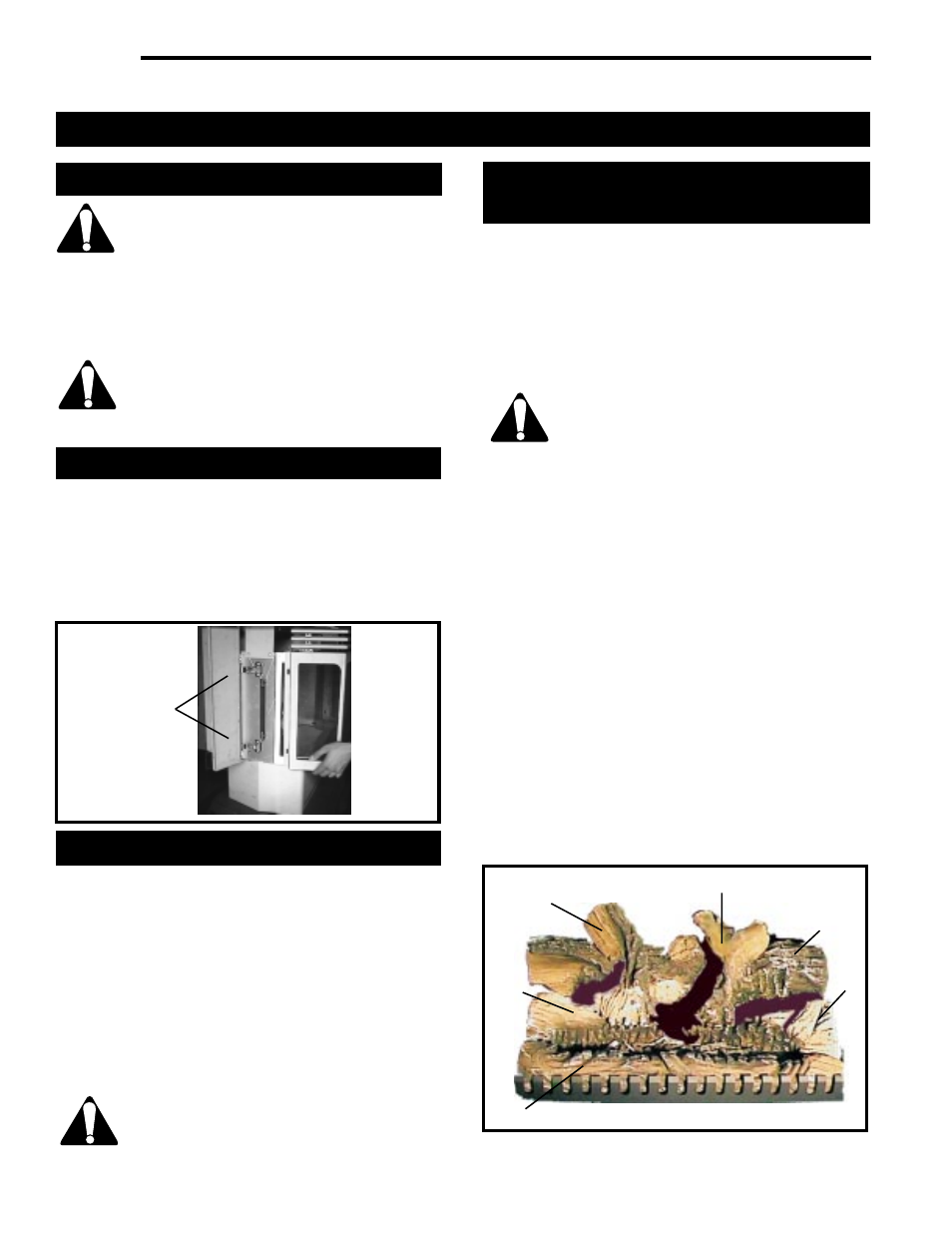

18
Irving Oil
10004000
Only glass approved by the Vermont
Castings, Majestic Products Company
may be used for replacement.
1. Shut off gas (See Lighting Instructions).
2. Let the unit cool if it has been operating.
3. Open two side doors
4. Open the clamps on two sides.
5. Pull the frame forward.
6. To reinstall window frame assembly follow the
above procedure in reverse.
Model: IRFSDV34
Refer Figure 32.
1. Remove window frame assembly (See “Window
Frame Assembly” section).
2. Remove logs from packaging.
As with all plastic - these are not toys
and should be kept away from children
and infants.
3. Place rear log (KR10) on rear bracket (ensure
log is seated properly, leveled and centered to
the unit), so it will not move from side to side
and it is firmly positioned on the bracket.
4. Slip front ember log (KR7) down behind the
front deflector.
5. Place front left log (KR8) on top of burner, left
side. Use log’s bottom holes to locate it into the
left bracket log locator studs.
6. Place front right log (KR9) on top of burner, right
side. Use log’s bottom holes to locate it into the
right bracket log locator studs.
7. Place burner lava rock on top of burner
between the ember log and the two front logs.
8. Place top left log (KR11) onto locator notches.
Ensure log is secure.
9. Place top right log (KR12) onto locator notches.
Ensure log is secure.
It will be necessary to clean the glass periodically.
During start-up condensation, which is normal, forms
on the inside of the glass. This condensation causes
lint, dust and other airborne particles to cling to the
glass surface. Also initial paint curing may deposit a
slight film on the glass. It is therefore recommended
that the glass be cleaned two or three times with a
non-ammonia based household cleaner and warm
water (We recommend gas fireplace glass cleaner).
After the initial cleaning process the glass should be
cleaned two or three times during each operating
season depending on the environment.
• The use of substitute glass will void all pro-
duct warranties.
• Care must be taken to avoid breakage of the glass.
Under no circumstances should this
fireplace be operated without the front
glass or with a broken glass.
Replacement of the glass (with gasket)
as supplied by the manufacturer should
be done by a licensed qualified
service person.
Clean glass after first two weeks
of operation.
OPERATING INSTRUCTIONS
GENERAL GLASS INFORMATION INSTALLATION OF LOGS & BURNER
LAVA ROCK MATERIAL
WINDOW FRAME REMOVAL
GLASS CLEANING
Fig. 31
Release clips
(2 per side)
Fig. 32
KR11
KR12
KR10
KR7
KR8
KR9
