OSRAM SYLVANIA ULTRA LED Recessed and Surface Mount Downlight Kit User Manual
Page 2

2
• Turn power off before inspection, installation or removal.
• Suitable for use in indoor dry and damp locations. Use only on 120 VAC, 60Hz circuits.
Step 1: Make sure the power is turned off at the
source to the recessed housing(s) that you are
installing the fixture(s) in. Remove existing trim
and CFL, or incandescent bulbs. Remove existing
mounting plate from the recessed housing (if any)
and then remove lamp socket from the plate.

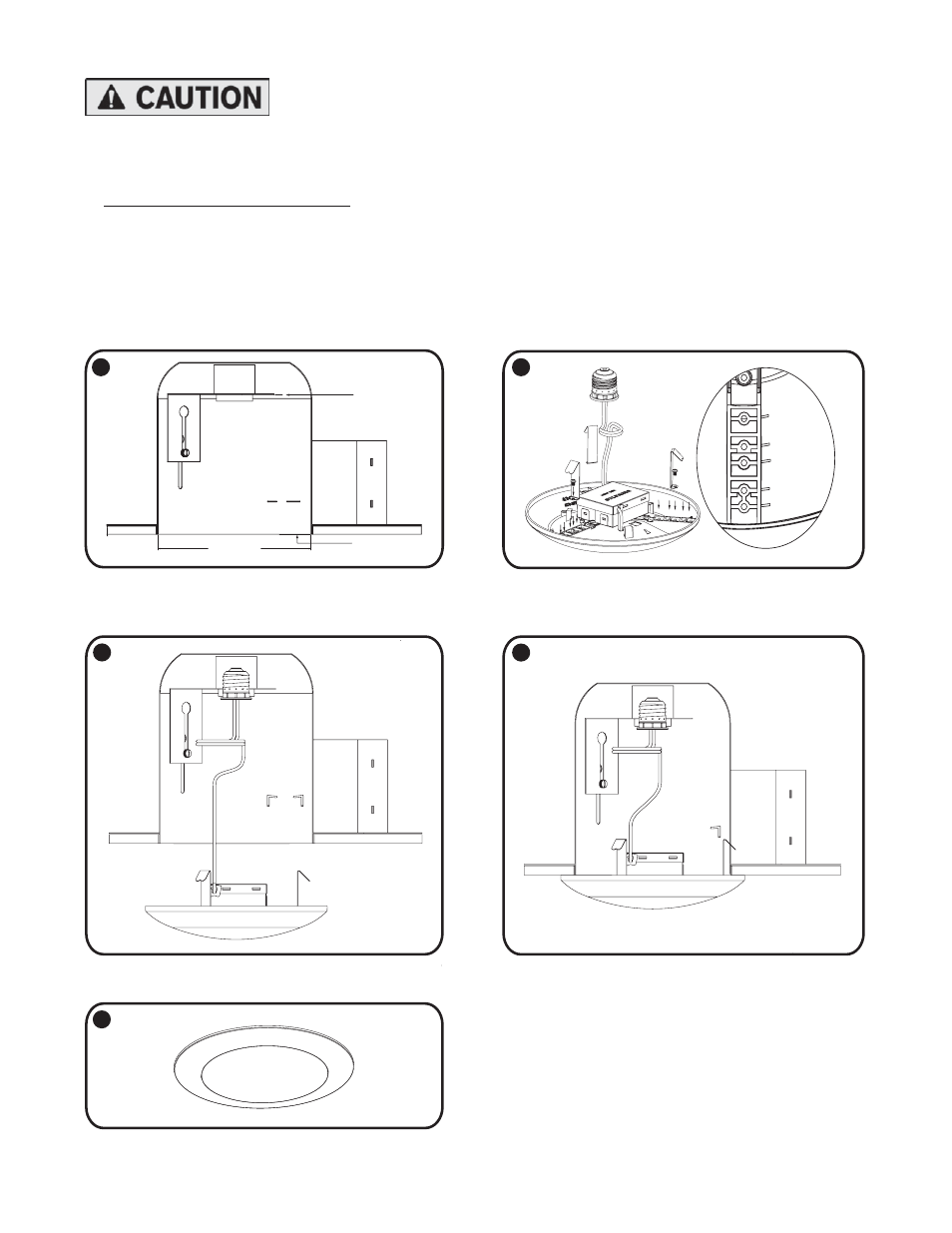

1) 4’’, 5’’ and 6’’ housing installation
Step 3: Carefully route wires into fixture.
Step 2: Screw Edison base adapter into socket
in recessed housing. Measure housing internal
diameter and adjust spring clip position in order
to achieve a tight fit inside the housing.
3
Step 4: Utilizing the friction clips, guide Recessed Kit
into the housing for a tight fit.
4
4 -6.75”
Top
Edge
1
Step 5: Push Recessed Kit up flush to ceiling surface.
5
2
6.25”-6.
75”
5.88”-6.
25”
5.4”
5”
4”
