CCI Thermal Technologies HP - High Pressure Heat Exchanger Unit Heater - Manual (Page 7)

7

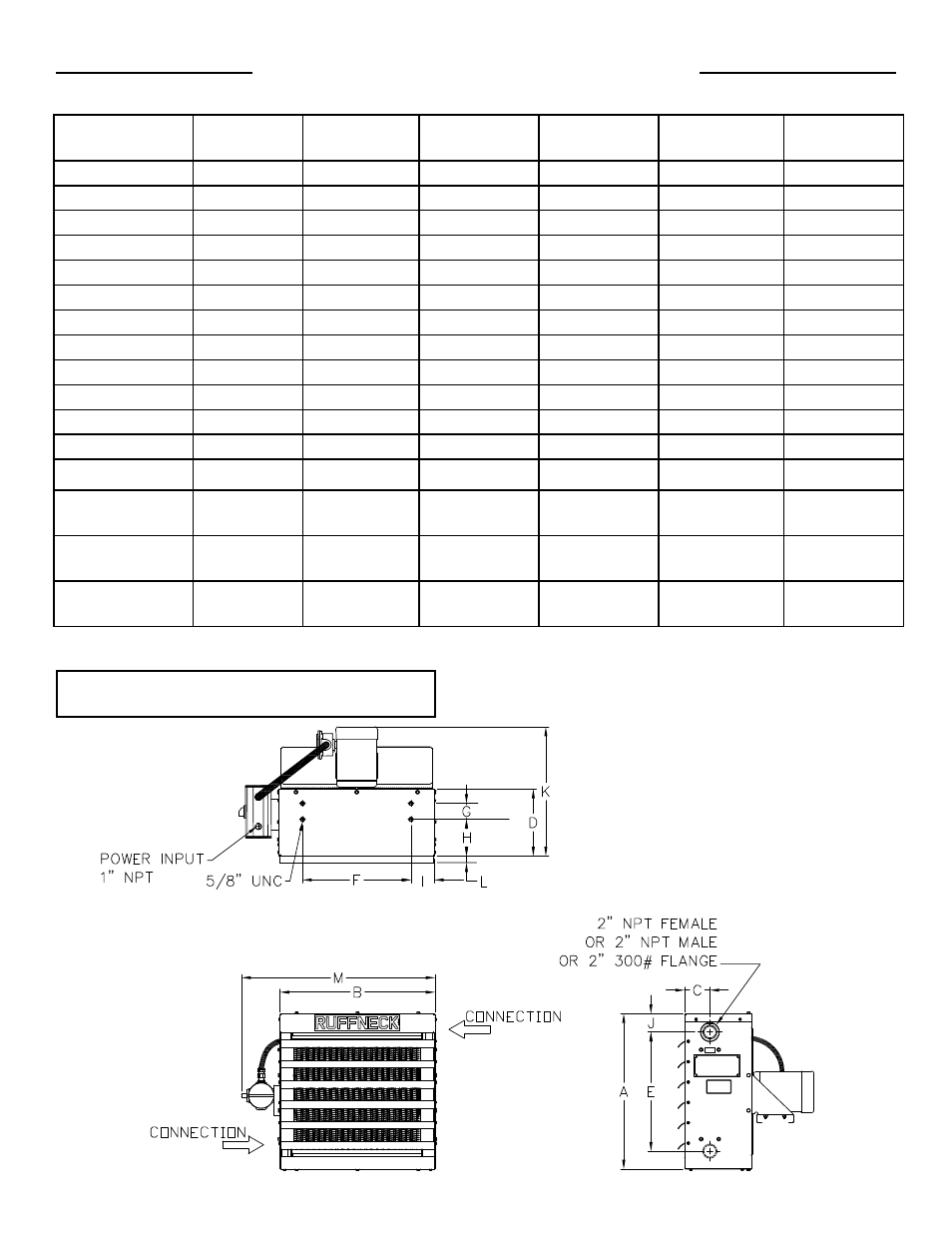

PHYSICAL DIMENSIONS
DIM
in (mm)
FR/HP12 FR/HP 16 FR/HP 20 FR/HP 24 FR/HP 30 FR/HP 36
A 16 5/6 (415) 20 5/16 (516) 24 5/6 (618) 28 3/8 (720) 34 7/16 (874) 42 5/8 (1083)
B 16 3/8 (416) 20 5/6 (517) 24 5/16 (618) 28 1/4 (718) 34 5/16 (872) 42 5/8 (1083)
C 4 (102) 4 (102) 4 (102) 4 5/8 (118) 5 11/16 (145) 5 1/2 (140)
D 9 3/4 (248) 9 3/4 (248) 10 1/2 (267) 11 13/16 (300) 13 3/4 (350) 23 5/8 (600)
E 12 5/8 (320) 15 1/2 (394) 19 1/2 (495) 23 7/16 (596) 29 1/2 (750) 37 3/8 (950)
F 11 (280) 15 (381) 17 (432) 19 11/16 (500) 25 9/16 (650) 29 1/2 (750)
G N/A 1 3/4 (44) 2 1/2 (63) 2 3/4 (70) 3 1/8 (80) 3 1/8 (80)
H 6 3/4 (172) 5 3/4 (147) 5 3/4 (146) 6 11/16 (170) 7 1/2 (190) 9 7/16 (240)
I 2 5/8 (68) 2 5/8 (68) 3 5/8 (93) 4 5/16 (109) 4 3/8 (111) 6 7/16 (163)
J 1 7/8 (48) 2 3/4 (70) 2 7/8 (73) 3 (76) 3 1/8 (80) 3 (76)
K* (MAX) 21 1/4 (540) 21 1/4 (540) 22 7/16 (570) 23 5/8 (600) 25 3/16 (640) 34 5/8 (880)
L (MAX) 1 5/8 (42) 1 5/8 (42) 1 5/8 (42) 1 5/8 (42) 1 7/8 (47) 1 3/4 (45)
M 24 3/8 (619) 28 5/16 (720) 32 5/16 (821) 36 1/4 (921) 42 5/16 (1075) 50 5/8 (1286)
Core weight
lbs (Kg)
27 (12) 38 (17) 48 (22) 91 (41) 121 (55) 175 (79)
Unit weight
lbs (Kg)
80 (36) 100 (45) 126 (57) 191 (87) 286 (130) 444 (202)
Shipping weight
lbs (Kg)
132 (60) 148 (67) 174 (79) 214 (97) 321 (146) 526 (239)
Note:
*May vary with motor used.
