7
25 we reserve the right to reFuse service on
FirearMs that have been altered, added to
or substantially changed.
Removal of metal from the barrel, or modifications
of the firing mechanism and/or operating parts, may
lead to a refusal of service on such firearms. We will
charge you for parts and labor to return the firearm to
original specifications.
do not, under any circuMstances, alter
the trigger, “saFety” or other Parts oF
the Firing MechanisM oF this or any other
FirearM. Failure to obey this warning
May result in injury or death to yourselF
or others.
b e c a r e F u l !
g eneral D eScription anD o peration
g eneral D eScription
Every aspect of the Super X ® 3 is designed to produce
unmatched reliability and superb handling, qualities that
are demanded by serious hunters and shooters. The
remarkably simple, self-adjusting Active Valve gas piston
system makes the Super X3 the fastest cycling autoloader
available. The alloy receiver balances weight between the
hands with just enough barrel weight for a smooth swing.
The acclaimed Invector-Plus ™ interchangeable choke tube
system provides superior shot patterns. As you learn about
your new shotgun and begin shooting it, we’re sure
you’ll agree its design sets new standards for reliability
and handling.
Your shotgun is one of several different versions offered.
The basic operating procedures are the same for all
models. Where there are differences, they are pointed
out in this owner’s manual for your convenience.
g eneral o peration
This shotgun is an autoloading design that allows you to
fire follow-up shots by merely pulling the trigger. When
you fire a shell, the Active Valve gas system moves a
loaded shell from the magazine to the chamber where it is
fired with a pull of the trigger. This can be repeated until
the magazine is empty. A single shell can also be inserted
into the chamber manually or moved from the loaded
magazine by cycling the action with the operating handle.
With the magazine three-shot adapter (plug) removed
from the magazine and using 2¾" loads, the shotgun is
capable of shooting five shots in rapid succession, one shot
with each pull of the trigger. The short stroke and snug,
gas-sealing fit of the gas piston limits the amount of
combustion gases blown past the piston sleeve and into the
receiver, keeping the inside of the receiver cleaner. This is
an exceptionally advanced design that offers reliable
function from the gas system and easy disassembly for
maintenance and cleaning. However, in order to keep your
new shotgun in top condition and operating at its peak
performance, you must read, understand and follow all of
the instructions in this owner’s manual.
Prior to using live ammunition, familiarize yourself
thoroughly with the operating instructions in this
owner’s manual. Get accustomed to the feel of your
new firearm and know the forces required to operate
the action. Learn how to pull the trigger and, above
all, know the location and operation of the “safety.”
Procedures for disassembly and operation of various
components are outlined later in this owner’s manual.
Please read and study them thoroughly.
n omenclature
In conventional firearm terminology the position and
movement of firearm parts are described as they occur with
the firearm horizontal and in the normal firing position:
i.e., the muzzle is forward or in front; the buttstock is
rearward or to the rear; the trigger is downward or
underneath; the rib is upward or on top. For general parts
nomenclature, refer to Figure 1 on page 6. For specific
parts names related to disassembly, refer to Figure 2.

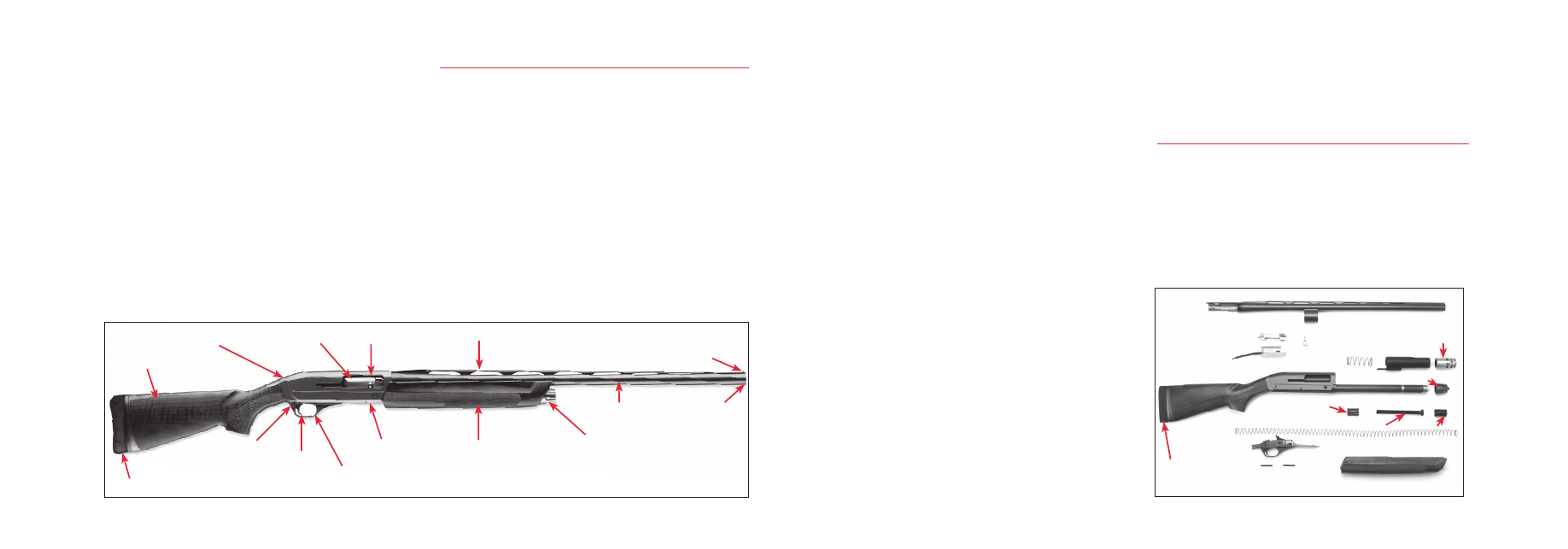

FIGURE 1
Receiver
Bolt Ejection Port
“Safety”
Trigger
Forearm
Muzzle
Barrel
Loading Port
Front Sight
Recoil Pad
Trigger Guard
Buttstock
Ventilated Rib
Magazine Cap
FIGURE 2
Trigger Group
Barrel
Gas Piston
Forearm
Magazine Spring
Bolt Handle
Bolt Slide
Bolt
Barrel Extension Gas Bracket
Three-Shot Adapter (Plug)
Magazine
Trigger Group Pins
Piston Sleeve Spring
Piston Sleeve
Buttstock
Recoil pad
Follower
Magazine Cap
Retainer
6
