Installation Procedures

Install the Mounting Pole (Optional)

The RFID kit comes with an 8 foot mounting post with a mounting flange at the base, as an option.
It’s designed to accommodate both surface-mounted above ground conduit for existing installations
and underground conduit for new construction.

For surface run conduit, there’s a threaded boss

welded to the post on the bottom flange. It a

ccommodates a ½” conduit fitting to run liquid-tight

conduit to the post. The conduit is then secured by screwing the conduit fitting into the boss. For
underground conduit, the installer should run the conduit up the center of the post. There is a hole
near the top of the post where the cable will exit to connect with the RF reader.

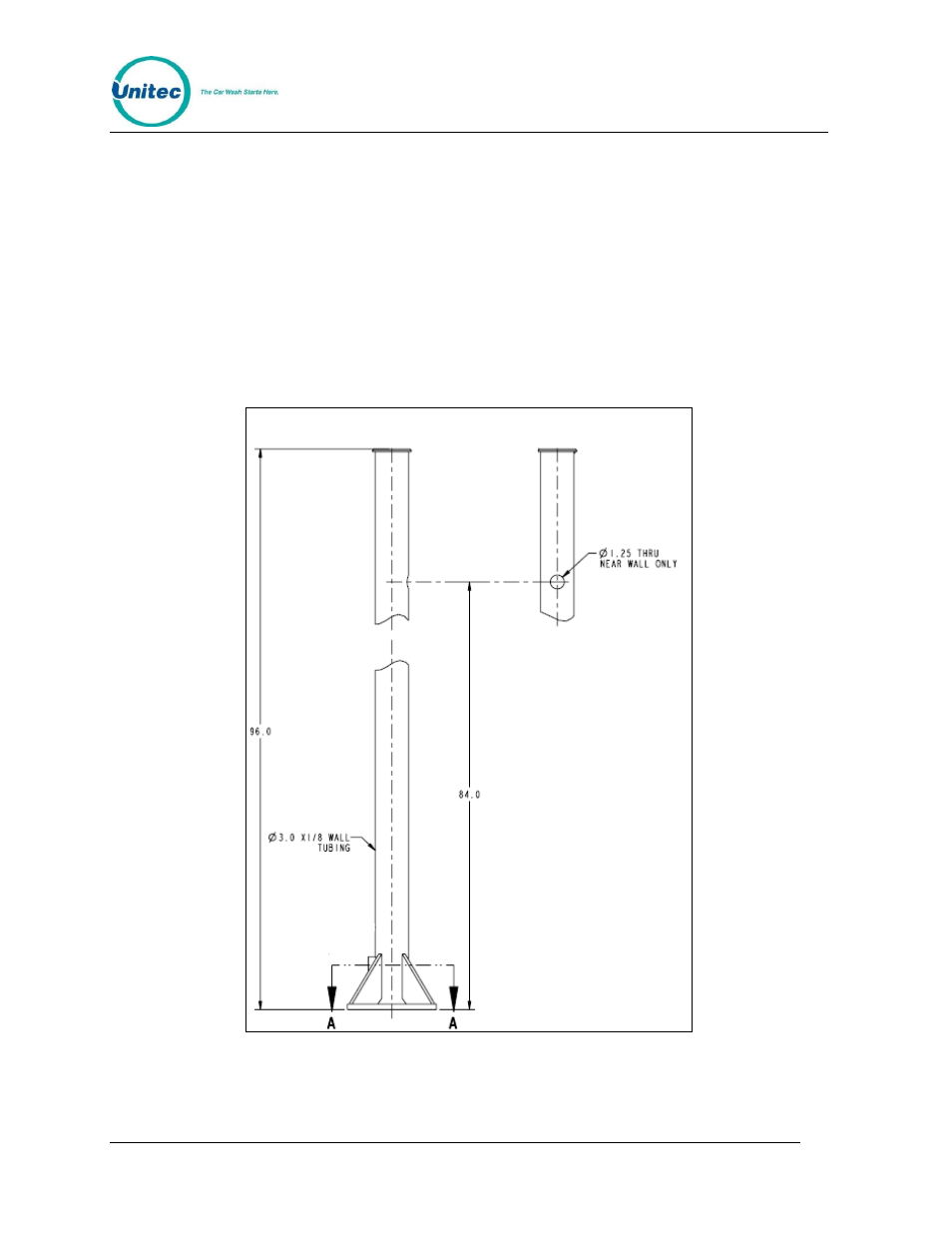

Figure 1. RFID Mounting Post
