R E A C H F R E E I D

Document Number:

RFID1001

6

Document Name:

Unitec RFID Field Retrofit Installation Guide

Site Installation

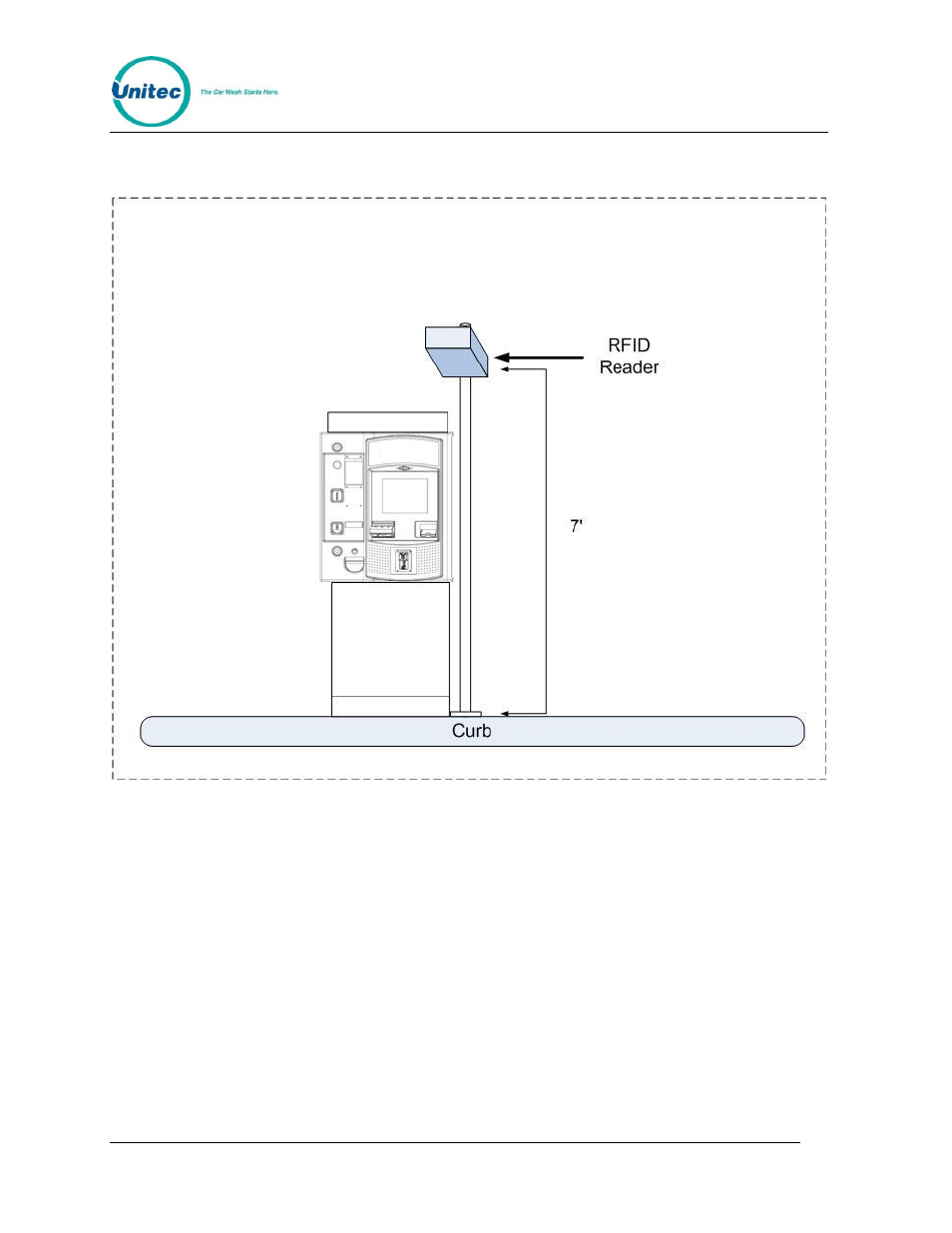

Figure 5. RFID Reader Installation - Front View

3. Aim the reader so that center front face of the reader points toward a spot on the

vehicle lane approximately 18” from the middle front of the entry unit. This usually
requires that the reader be adjustable downward about 45 to 90 degrees (“tilt”),
and sli

ghtly toward the approaching vehicles (“pan”).
