R E A C H F R E E I D
Document Number: RFID1001 12
Document Name: Unitec RFID Field Retrofit Installation Guide
Sentinel and C-Start Installation
If installing the board inside a Sentinel or C-Start unit, the RFID board mounts to the right inside
wall of the electronics side of the unit.
Note: The RFID board should be mounted upside down on the mounting plate so that the
diagnostic LEDs are facing the door of the unit.

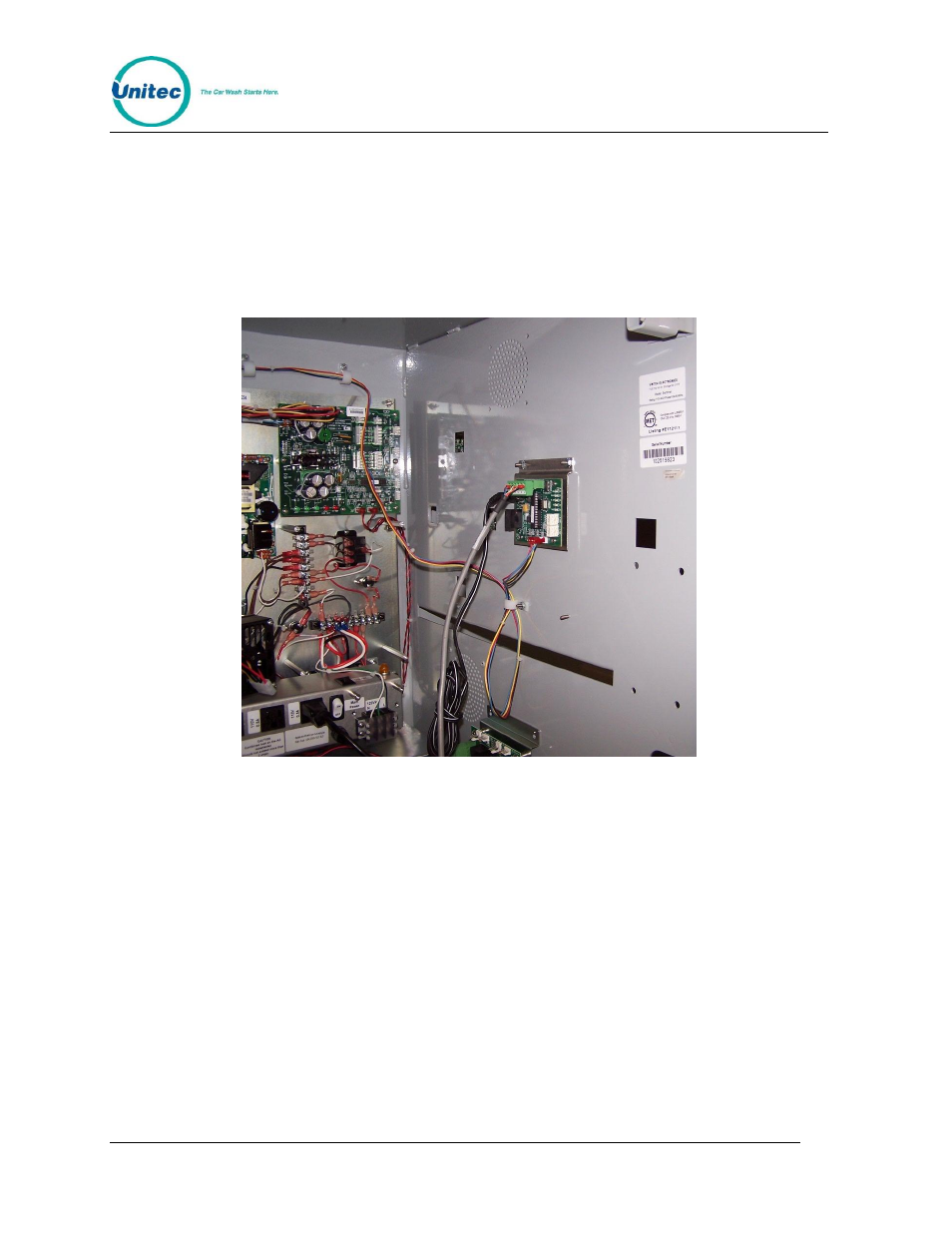

Figure 11. RFID Board Location in Sentinel
1.
Run the data cable down thru the unit’s conduit and up to the mounted reader.
2. Plug the female end of the in- line connector on the 30’ data cable into the male end
of the in-line connector on the reader. To ensure a tight, water-proof connection, fit
the two ends together, press firmly and turn the ends to lock them together.
3. Connect the other end of the data cable with the 6-pin Phoenix connector to the J2
connector on the RFID board
4. Plug the power supply into the J1 power connector on the RFID board and the
power supply cord into an outlet on the power supply panel at the back of the unit.
5. Connect the 4-pin I2C cable to the J3 4-pin connector on the RFID board. Connect
the other 5-pin end to a 5-pin connector on the CPU module on the left side of the
case.
