Figure 56. manual knob and transportation area – Unitec Portal Owner’s Manual User Manual
Page 75
P O R T A L
Document Number:
PTL1028
Document Title:
Portal 3 Owners Manual
Caution: If you pull the bill too hard, the belt will come off the pulleys.

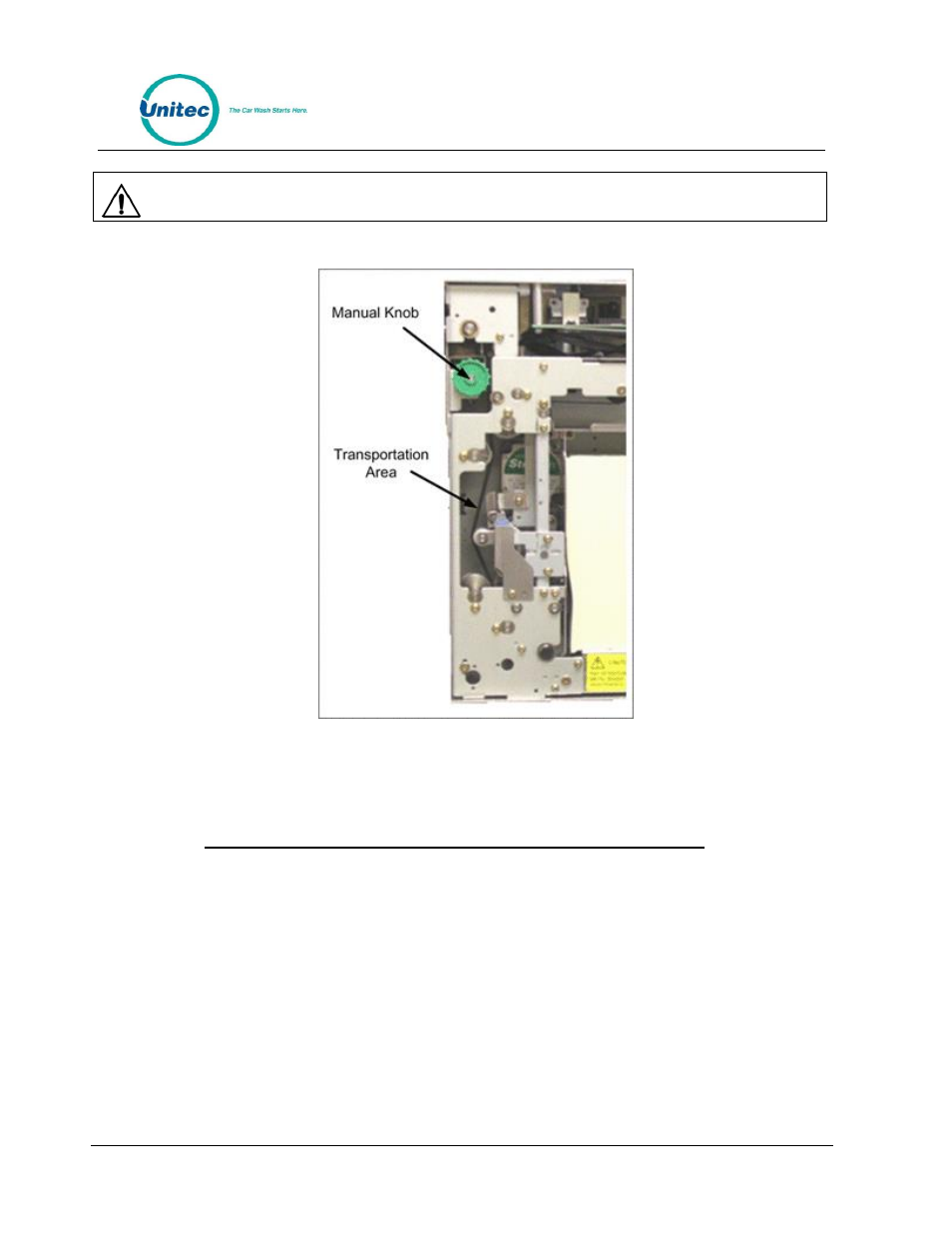

Figure 56. Manual Knob and Transportation Area
3.
After removing the jammed bill, verify that the transportation belts are still properly aligned
on their respective pulleys.
1 0 . 4 . 4 . 2
R e m o v i n g a J a m m e d B i l l f r o m t h e D i s p e n s i n g A r e a
4.
While pressing down the metal fitting of dispensing roller, turn the manual knob and gently
remove the jammed bill.
