10.3.2 Shock Sensor
The Portal TI is equipped with a shock sensor, located in the upper middle of the unit door, to detect a
person attempting to vandalize or break into the unit. It is a small white box adhered to the door.
10.4 Bill Dispenser
The Bill Dispenser allows you to dispense cash from the Portal as change. Many customers choose to
dispense $5 bills as well as the $1 coin and quarters. This provides the most change dispensing options for
the most common cash payment methods, and gives you the added flexibility in selecting wash prices.
This configuration requires the Bill Dispenser and two hoppers.
10.4.1 Bill Dispenser Location
The bill dispenser is installed in lower portion of the hopper cage. The bill dispenser power cable connects
to the spare power connector on the power distribution board, and to the Miscellaneous I/O board
through the same type of connector used in the hopper.

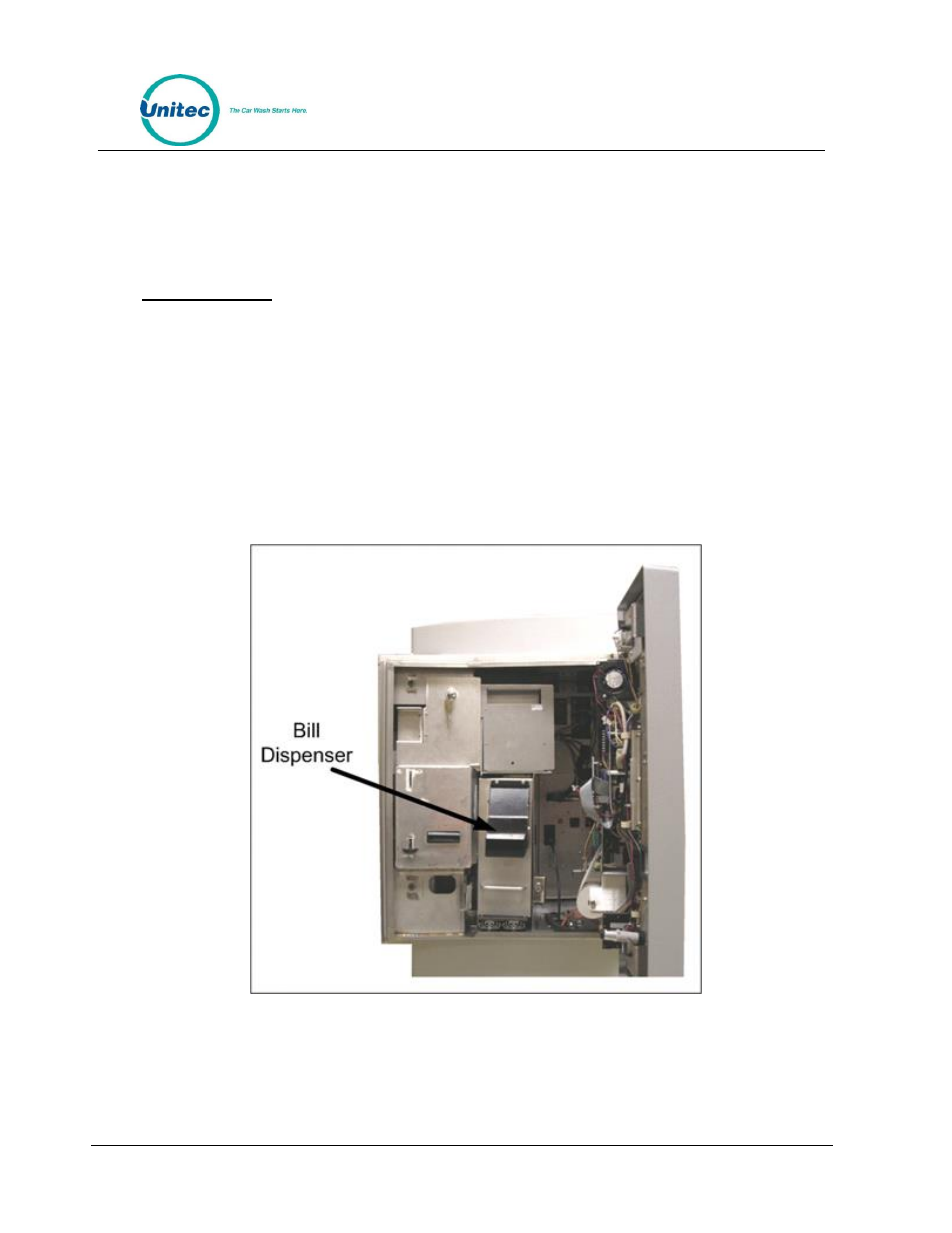

Figure 54. Bill Dispenser Location
10.4.2 Bill Dispenser Security
The bill dispenser can only be opened by using the key that fits the installed Medeco lock.
