Transducer Installation
1. Find the two TransducerAssemblies supplied with this kit. There will be a small black tube and a harness
attached to them. Insert the free end of the tubing into each of the other new One Touch fittings just installed. Be
careful not to press on the transducer but firmly grasp the tubing below the white clamp, pressing it into the
fitting until you feel it lock in place.

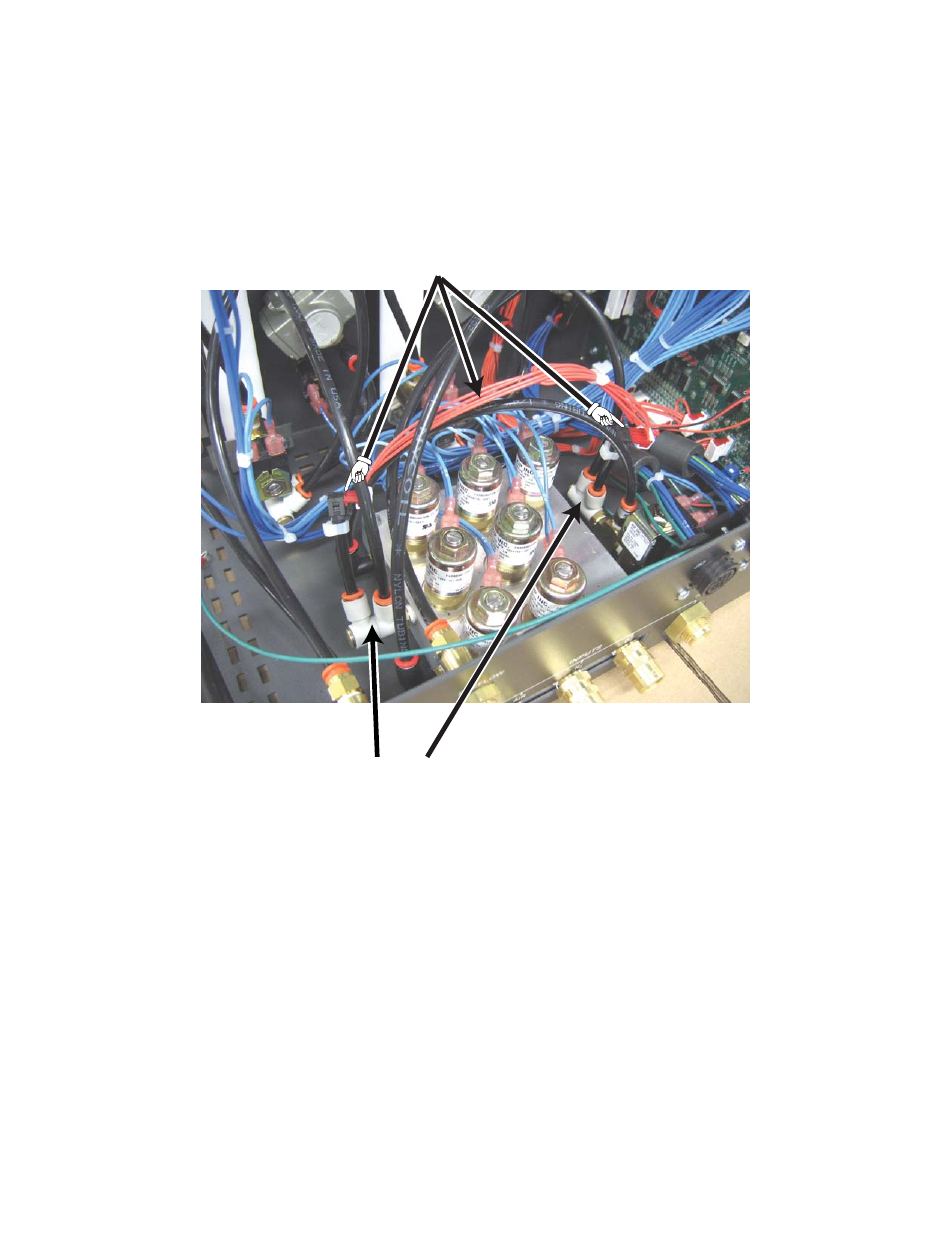

New One Touch Fittings
Transducers, harness and tubing
Art # A-07619
