Page 59
Fabricator 141i
Manual 0-51
45
3-29
INSTALLATION, OPERATION AND SETUP

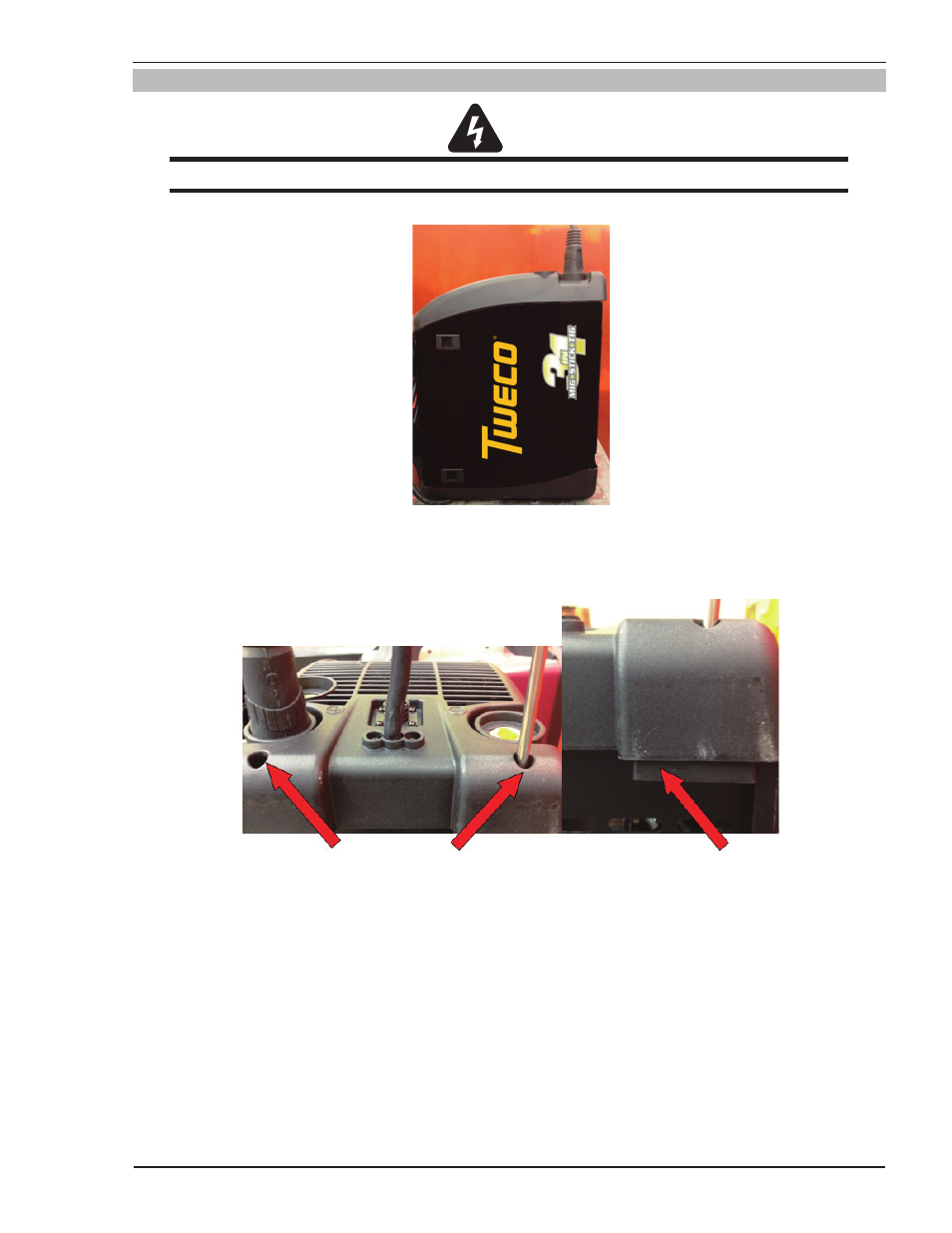

3.24 Torch Adapter Thumb Screw Replacement
WARNING
All power to unit should be removed.
1. Place unit on its back.
Art # A-11482_AB
2. Remove 2 screws in bottom of the front panel. A securing block will become detached and fall free from
the front panel as you turn each screw out. Set these aside for reassembly. Leave screws sitting in the
pockets of the panel.
Screws
Securing Block
Art # A-11483
