anti-spatter sprayer
2-4 SM-QRM-3 intRoduction And deScRiption
2.01 How to Use this Manual
To ensure safe operation, read the entire manual, including
the chapters on safety instructions and warnings.
Throughout this manual, the words WARNING, CAUTION,
and NOTE may appear. Pay particular attention to the
information provided under these headings. These special
annotations are easily recognized as follows:
WARNING
A WARNING giveS infoRMAtion RegARding
poSSible peRSonAl inJuRy.
CAUTION
A CAUTION refers to possible equipment
damage.
NOTE
A NOTE offers helpful information concerning
certain operating procedures.
2.02 Receipt of Equipment
When you receive the equipment, check it against the
invoice to make sure it is complete and inspect the
equipment for possible damage due to shipping. If there is
any damage, notify the carrier immediately to file a claim.
Furnish complete information concerning damage claims
or shipping errors to the location in your area listed in the
inside back cover of this manual. Include a full description
of the parts in error.
If you want additional or replacement copies of this CD,
please contact Tweco ® Robotics at the address and phone
number in your area listed on the inside back cover of this
manual. Include the Manual number (from page i) and
CD part number: 64-2601.
2.03 Introduction
The QRM-3 Anti-spatter sprayer is used to spray Anti-
Spatter compound to coat the nozzle, tip, and gas diffuser
reducing the amount of weld spatter that accumulates
during the welding cycle.
The QRM-3 Anti-spatter compound can be applied any
time there is a few spare seconds in the weld cycle, during
part changes, or after the nozzle cleaning cycle.
The QRM-3 Anti-Spatter sprayer features an adjustable
nozzle cap, which allows the user to set the amount of
anti-spatter applied with every application.
SECTION 2:
INTRODUCTION AND DESCRIPTION
The anti-spatter sprayer was primarily designed to be
mounted on the Tweco Robotics QRC TM -2000 Nozzle
Cleaning Station. For best results, the anti-spatter sprayer
with the QRC TM -2000 cleaning station should be installed
within the weld cell at a convenient location where the
welding torch can easily access.
The QRM-3 anti-spatter sprayer is supplied with all
required hardware and a mounting block to be installed on
the QRC TM -2000. If installation is performed at any other
location additional hardware may be required.

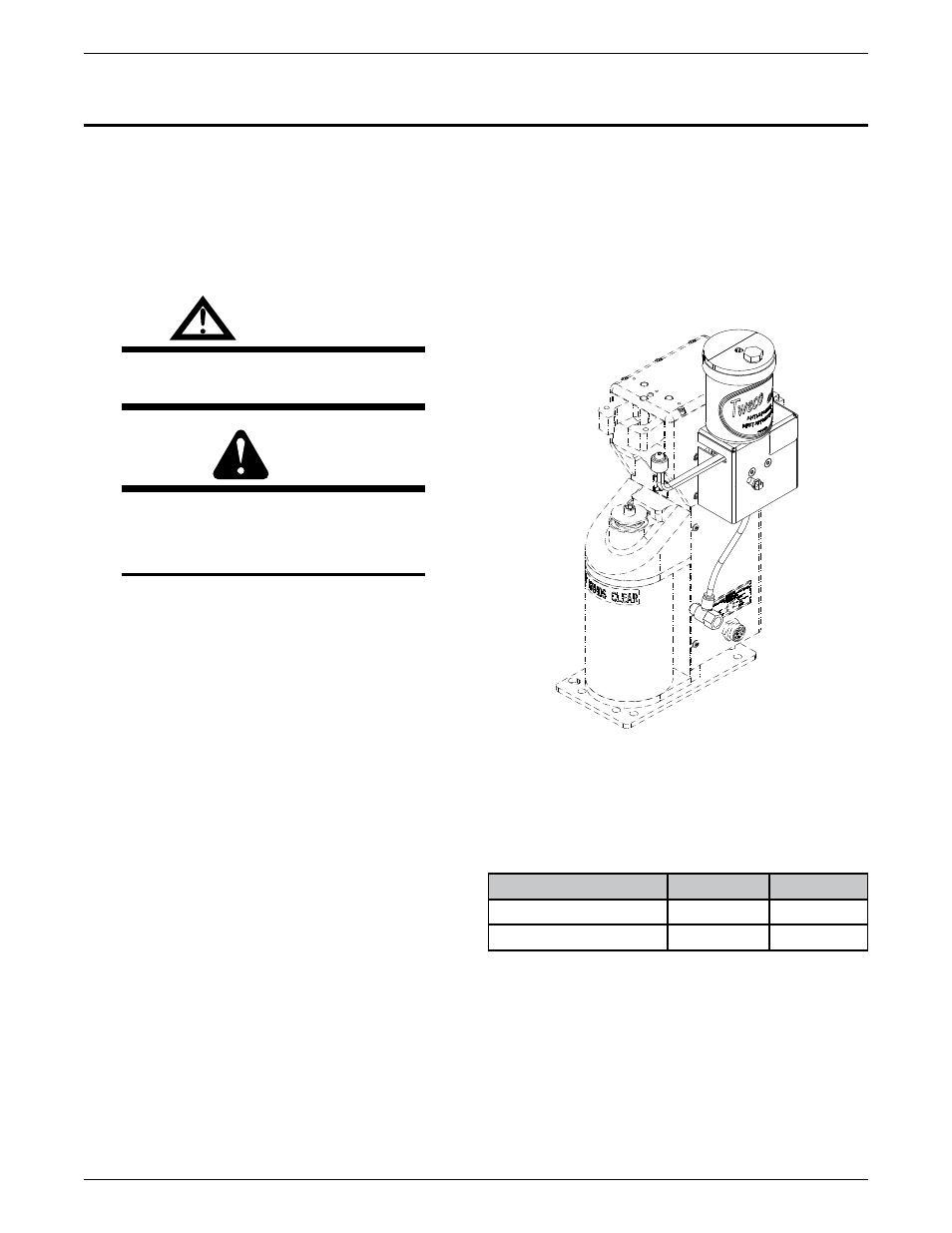

Figure 1
We recommend the use of Tweco Robotics Protex ® Select
Anti-Spatter with our QRM-3 sprayer. Protex ® Select
contains no fluorocarbons or chlorinated solvents. The
water based Protex ® Select is non-toxic, nonflammable
and environmentally safe.
Container Size Part No. Stock No.
1 Gallon/3.8L (Pkg 4) RPS1G-4 3044-1900
55 Gallon/208L (Drum) RPS55G 3044-1901
2.04 Features
The Anti-Spatter Mist Applicator is comprised of a series
of components working together to provide a controllable,
and adjustable amount of anti-spatter applied to the
welding torch.
