Anti-spatter sprayer, 04 operation – Tweco QRM-3 Anti-Spatter Sprayer User Manual
Page 11
anti-spatter sprayer
3-7
SM-QRM-3
inStAllAtion And opeRAtion
3.04 Operation
1. Centrally locate the robotic torch nozzle 1” (25,4mm)
over the nozzle cap.
2. Depending on the welding application and configuration
of torch nozzle and contact tip, the distance between
the torch nozzle and sprayer nozzle cap may have to
be adjusted in order to ensure proper coverage.
3. Activate the 24 VDC robot output with a timer to
control the anti-spatter application time.
4. The sprayer cycle time will be adjusted at the robot
controller.

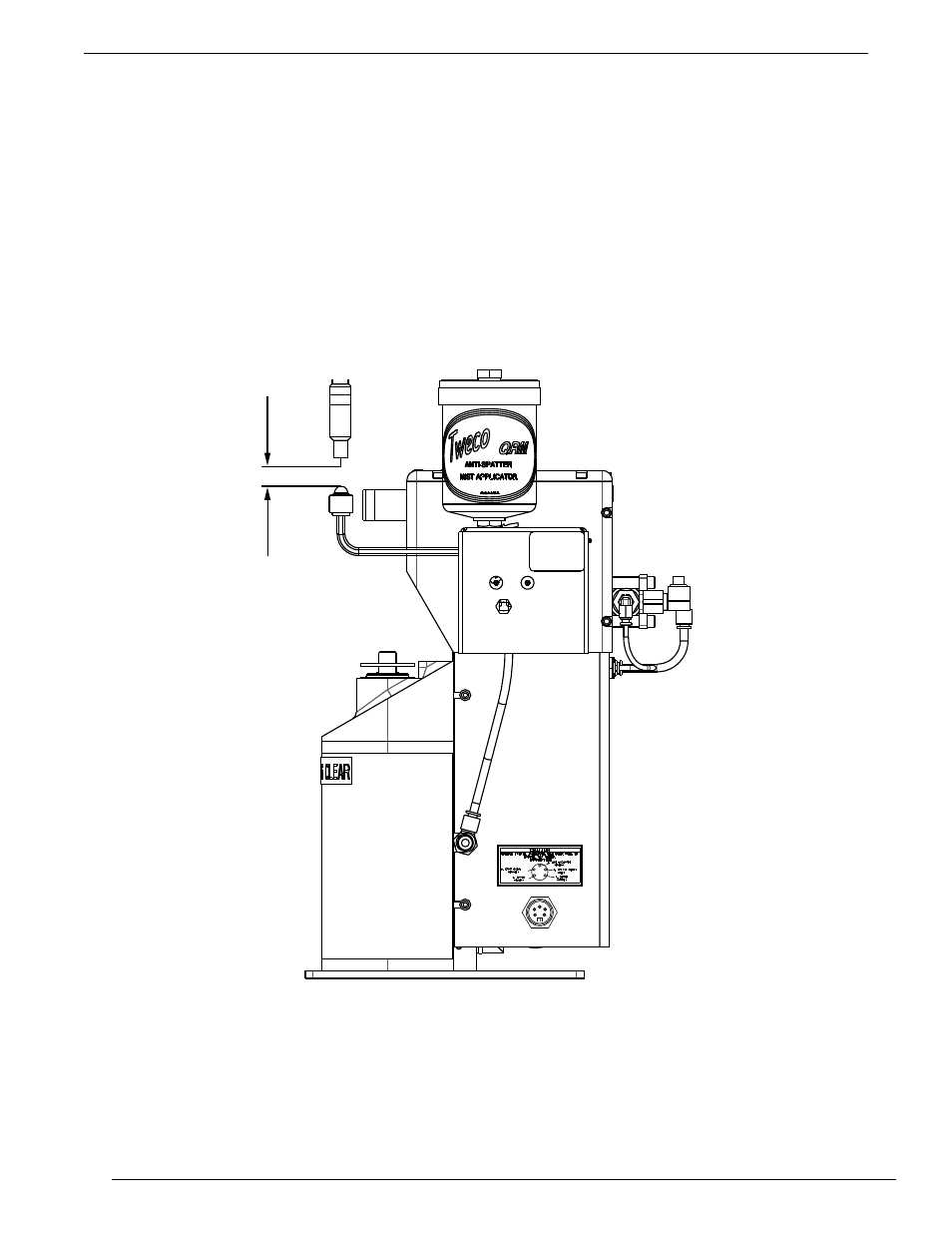

Figure 4
1.00
25,4
