INSTALLATION/SETUP TRANSMIG 2RT
Manual 0-5196 3-11 INSTALLATION/SETUP
3.12 Installing a Handi Spool (200mm diameter)
In order to fit a Handi Spool (200mm diameter) assemble parts in the sequence shown in Figure 3-9.
Installation of wire spool.
1. Remove Wire Spool Hub Retaining Clip. Grasp the loop and pull .
2. Place Wire Spool onto the hub, loading it so that the wire will feed off the bottom of the spool as the spool
rotates counter clockwise. Make sure to align the spool alignment pin on the hub with the mating hole in the
wire spool.
3. Replace the Wire Spool Hub Retaining Clip in the set of holes closest to the spool.
NOTE
The Wire Wheel Brake has been pre-adjusted at the factory. However if adjustment is required, refer to
Section 3.20
CAUTION
Use care in handling the spooled wire as it will tend to “unravel” when loosened from the spool. Grasp the
end of the wire firmly and don’t let go of it.
Art # A-10402
Wire Spool
Hub Nut
Spring
200mm
Wire Spool
Retaining Clip
Use inner holes on
Spool Hub
Flat Washer
Small Hole
Fibre Washer
Spool Hub
Keyed Washer
Flat Washer
Large Hole
Pin

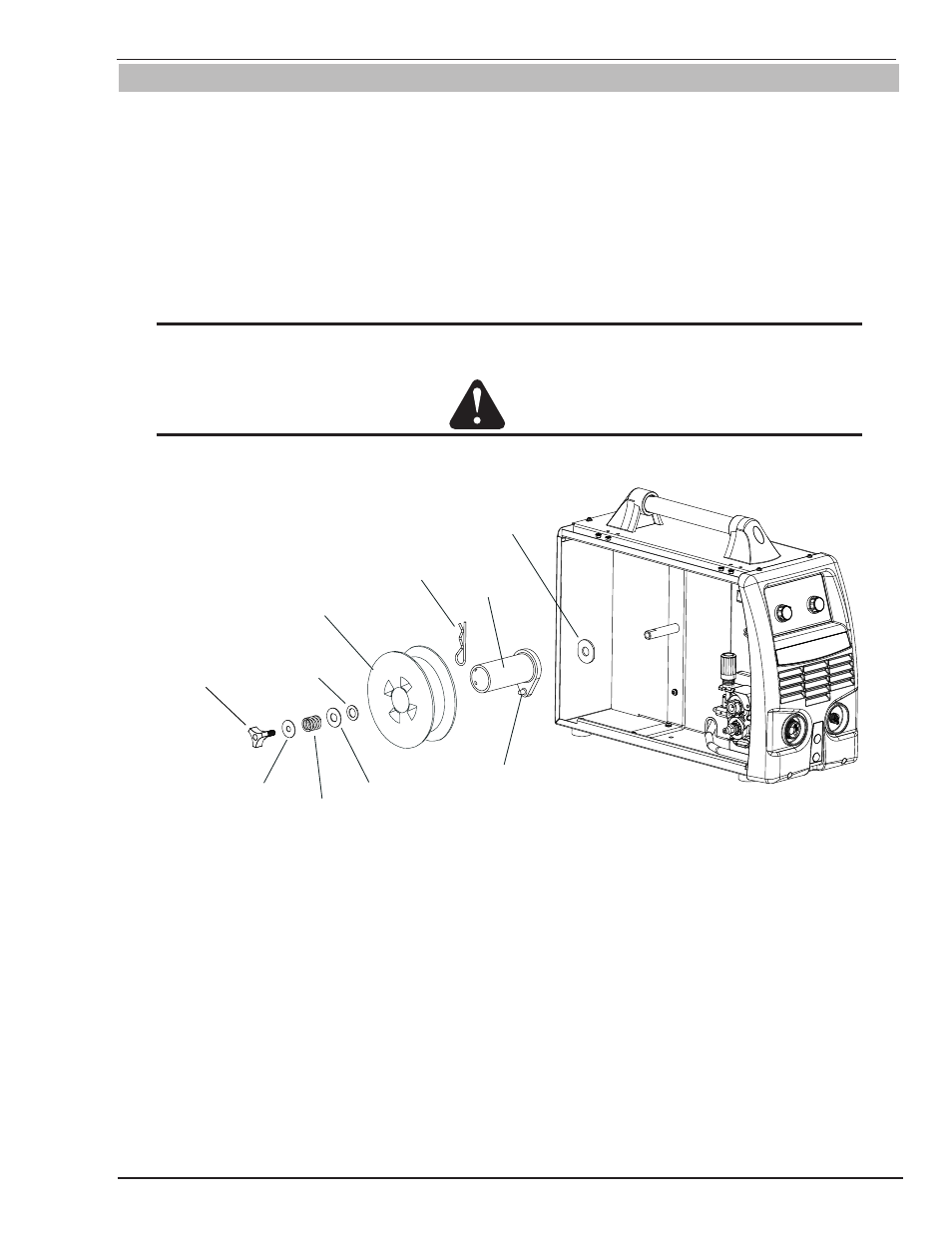

Figure 3-9: 200mm Handi Spool Installation
