weldskill 100 iNVeRTeR
3-4 March 3, 2008
3.07 Setup For Manual Arc Welding
!
WARNING
Before connecting the work clamp to the work and inserting the electrode in the electrode holder
make sure the Mains power supply is switched off.
CAUTION
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the
Welding Power Source.
WeldSkill
10
15
20
30 40 50 60
70
80
90
100
WORK
WORK CLAMP
NEGATIVE
OUTPUT
TERMINAL
POSITIVE
OUTPUT
TERMINAL
ROD
ARC
ELECTRODE HOLDER
240V AC POWER SOURCE
Art # A-08372_AD
Set Process
Selection Switch to
MANUAL ARC
WELDING mode

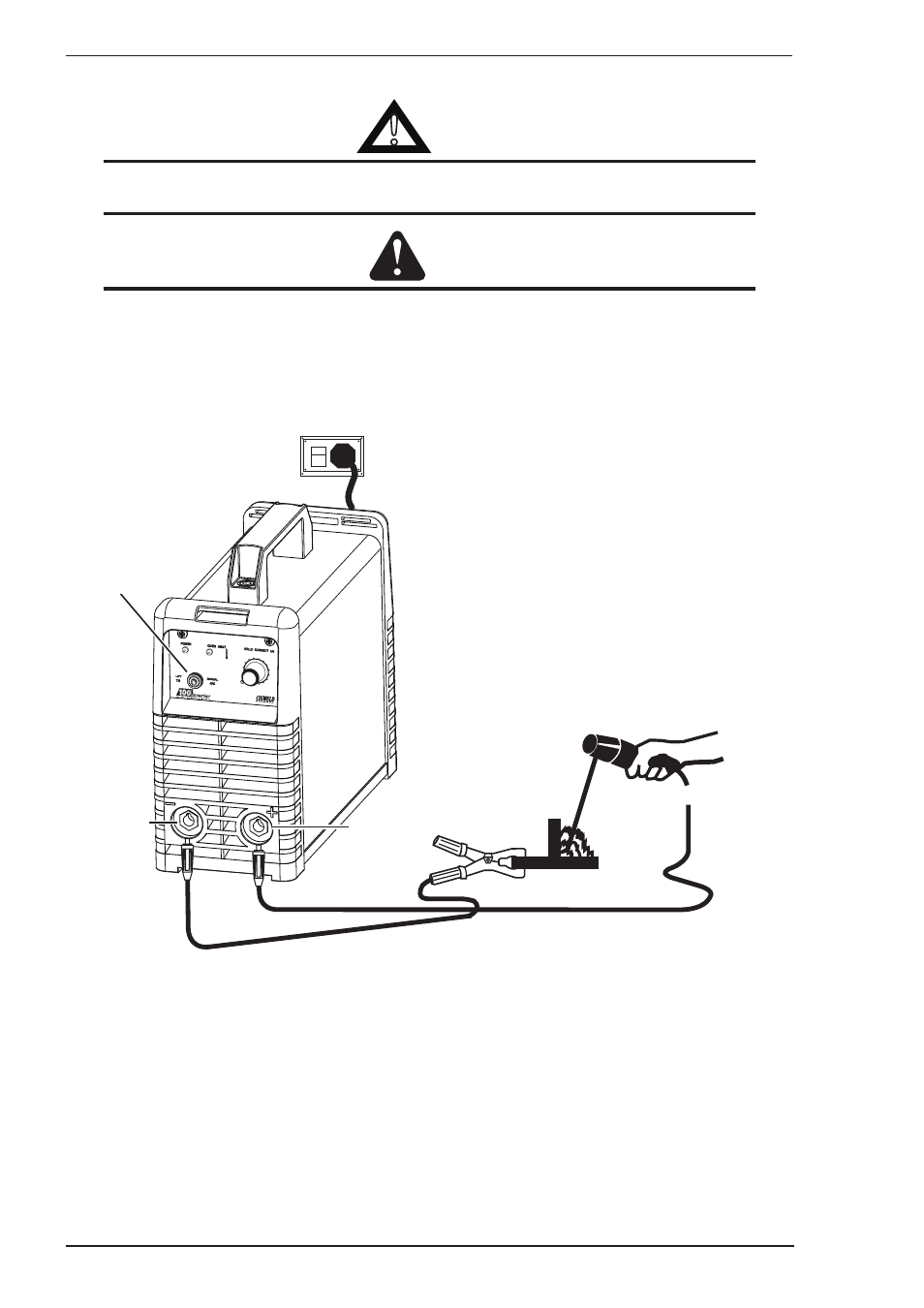

Figure 3-3: Set-up for Arc Welding
