2-3 July 7, 2008
Push Pull Interface KIt

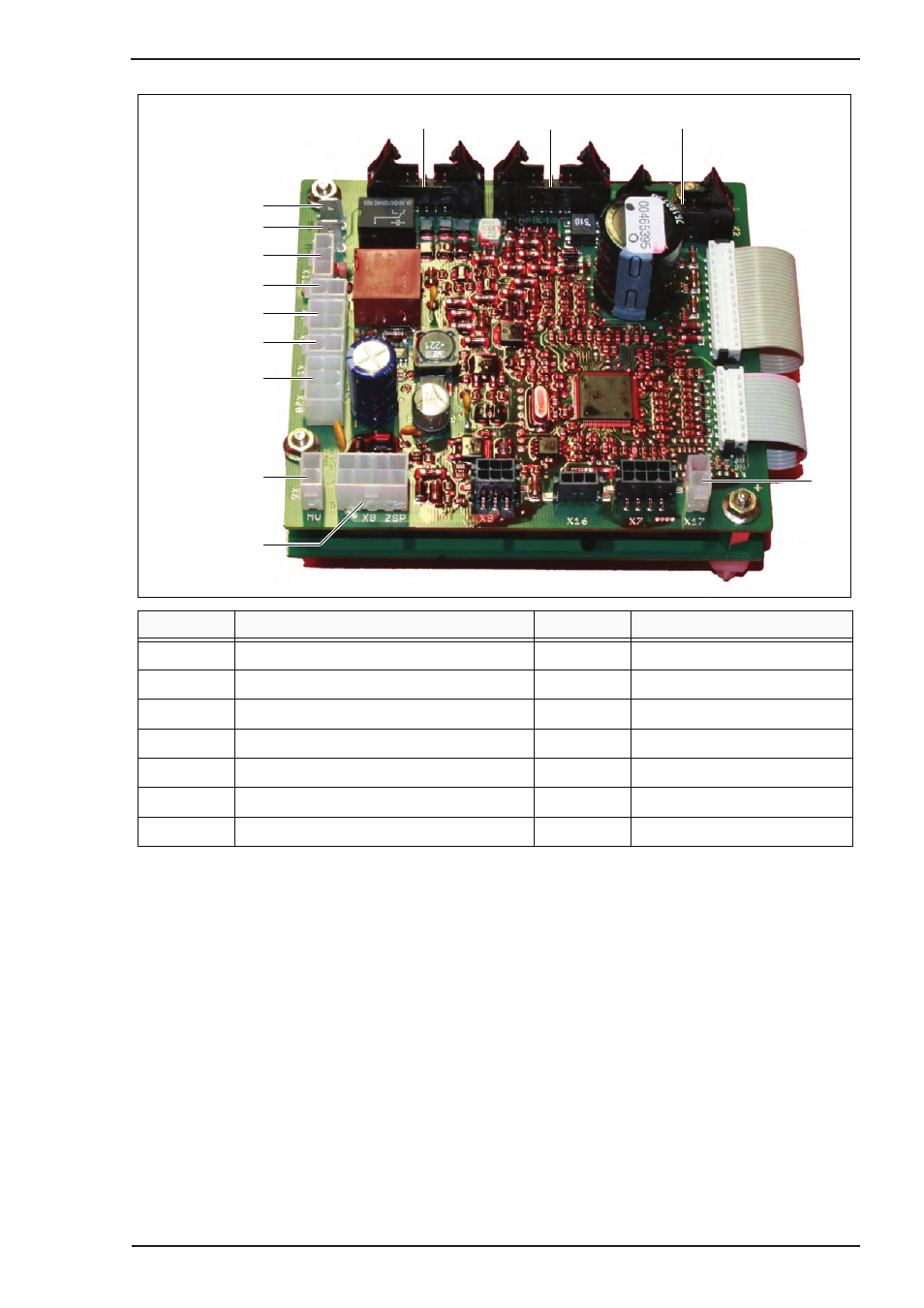

2.06 Terminal Assignments
Designation Connection Designation Connection
X1 torch button X10 M- wire feed motor minus
X2 BF operating panel X11 M+ wire feed motor plus
X3 VA volt-amps meter X12 wire feed unit (at X12 pin 2)
X4 wire insert switch X17 Push Pull motor
X5 tacho X18 FR remote control
X6 MV gas valve X20 CAN bus
X8 ZSP interpass hose package
X11 M+
X10 M-
X12
X4
X5
X1
X20
X6 MV
X8 ZSP
X17
X2 BF X3 VA X18 FR
