PORTAFEED VS 212
Manual No. 0-4994 2-3 INTRODUCTION
2.05 Product Specifications
Portafeed VS212 Specifications
Input Voltage Range 15-100 VDC
Maximum Input Current 8 Amps
Wire Speed Range
(dependent on arc voltage) 50-800 IPM (1.27 - 20.32 MPM)
Wire Sizes 0.024 - 5/64'' (0.6 - 2.0 mm)
Max Wire Spool Capacity 12'' (304.8 mm) 44 Lbs. (20 kg)
Drive Rolls 2 (Both Gear Driven)
Welding Current (I) 425A at 60% Duty Cycle
Welding Gun Inlet Size (Std)
Tweco Style #4 5/8'' (16mm) Nominal
Maximum Shielding Gas
Inlet Pressure 100 psi (6.9 bar)
Degree of Protection IP23C
Weight (Less wire) 44 lbs (20 kg)
Approvals IEC 60974-5 (CE)
CSA NRTL/C (pending)
NEMA EW3
Table 2-1 Specifications
21.3 in.
541mm 9.4 in.
239mm
15.3 in.
289mm
Art # A-07130

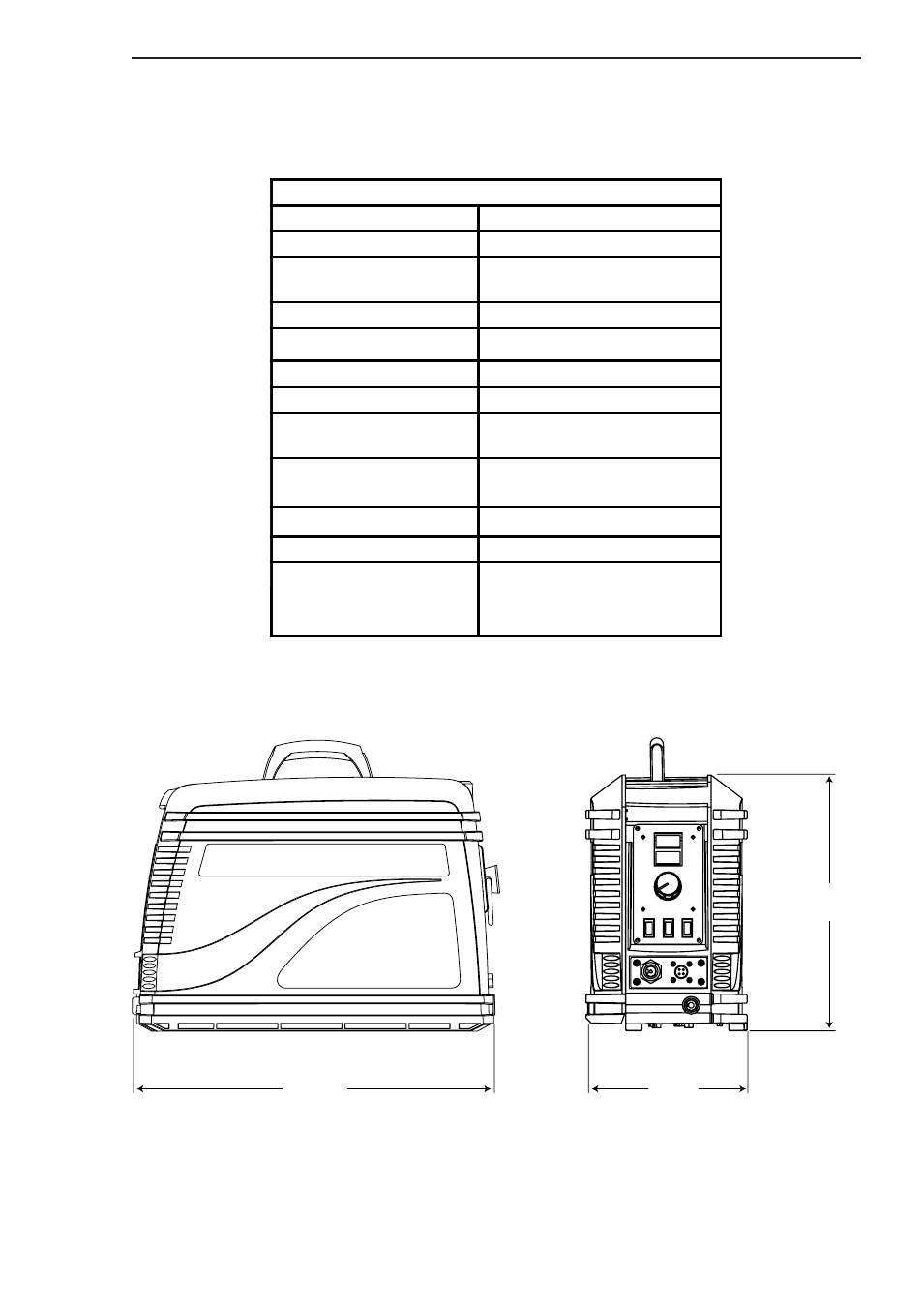

Figure 2-1: Dimensional Information
