cutmaster 10mm

Manual 0-5074

6-3

PARTS LISTS

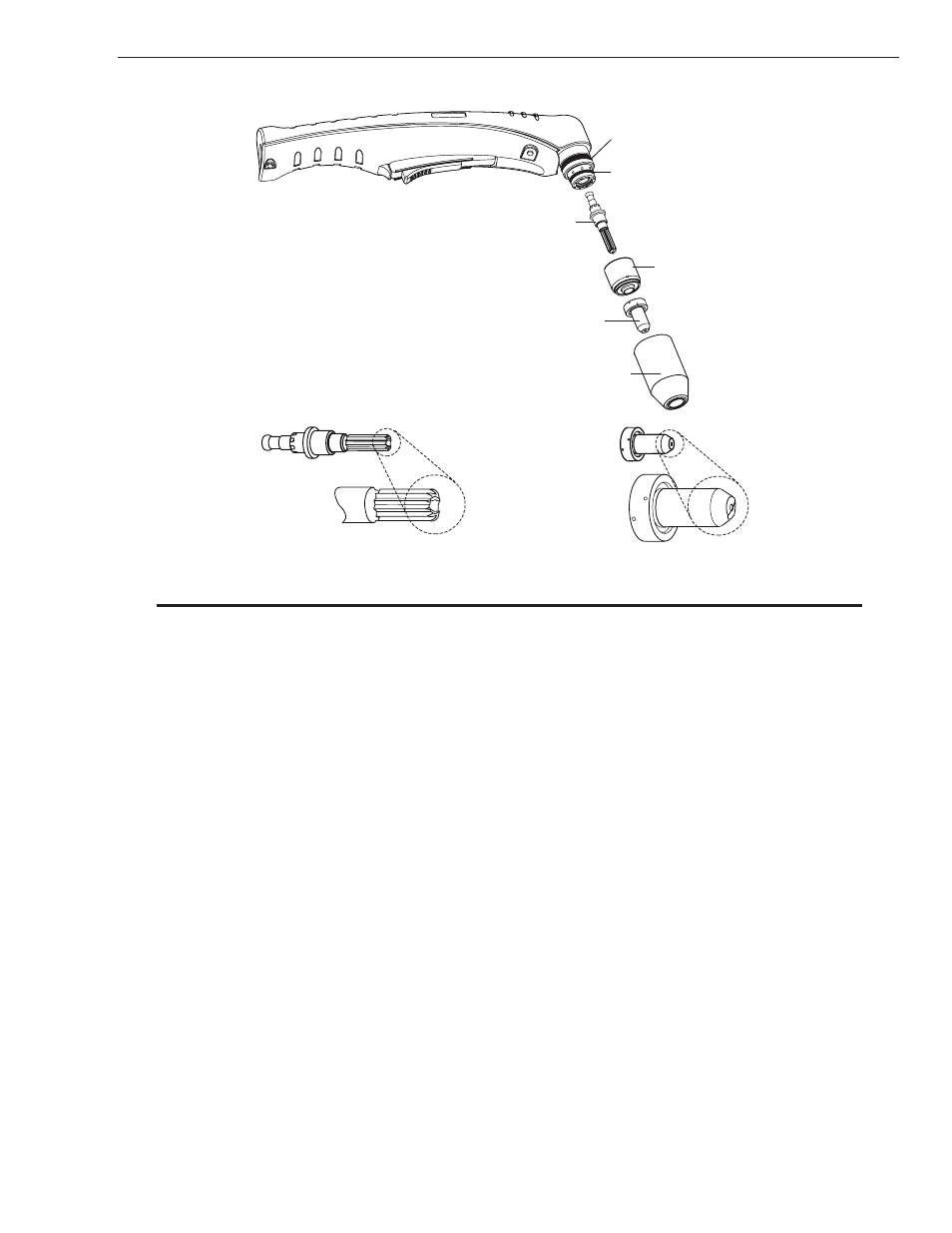

6.06 Torch Consumables

Art # A-03409_AB

Large O-Ring,

Cat. No. 8-3487

Small O-Ring,

Cat. No. 8-3486

Electrode, Cat. No. 9-8215

Start Cartridge,
Cat. No. 9-8213

Shield Cup, Cat. No. 9-8218

Worn Electrode

Worn Tip

40 Amp Drag Tip, Cat. No. 9-8207

NOTE

When operating the torch in a normal condition, a small amount of gas vents through the gap between the shield cup and
torch handle. Do not attempt to over tighten the shield cup as irreparable damage to internal components may result.

PATENT INFORMATION
The following parts are licensed under U.S. Patent No(s). 5120930 and 5132512

Catalog Number

Description

9-8235

Shield Cap, Drag 50-60A

9-8236

Sheild Cap, Drag 70-100A

9-8237

Shield Cup, Body

9-8238

Shield Cap, Machine 50-60A

9-8239

Shield Cap, Machine 70-100A

9-8244

Shield Cap, Drag 40A

9-8245

Shield Cap, Machine 40A
